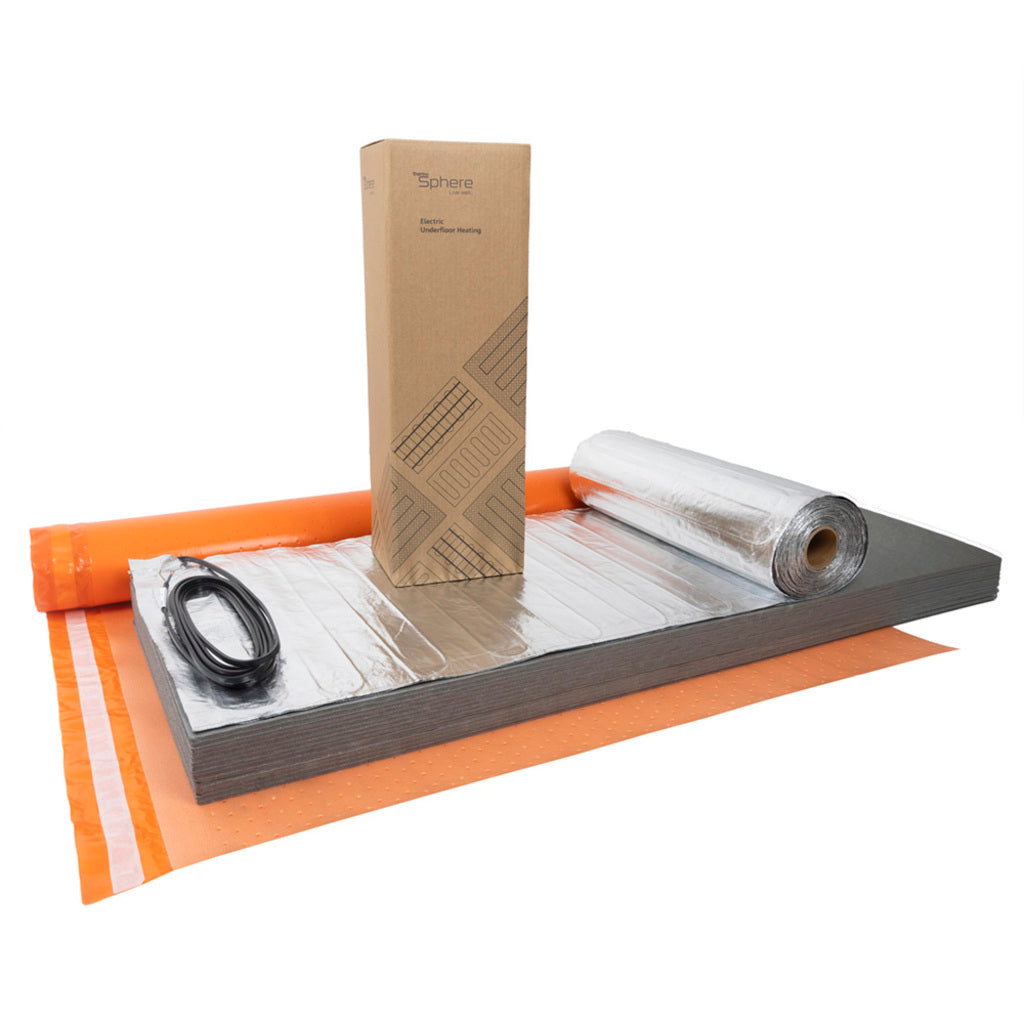

Thermosphere radiant floor heating mat kit with a roll of orange heating mats, a roll of silver insulation material, a black electrical cable and the overlay boards under the packaging box on a white background.

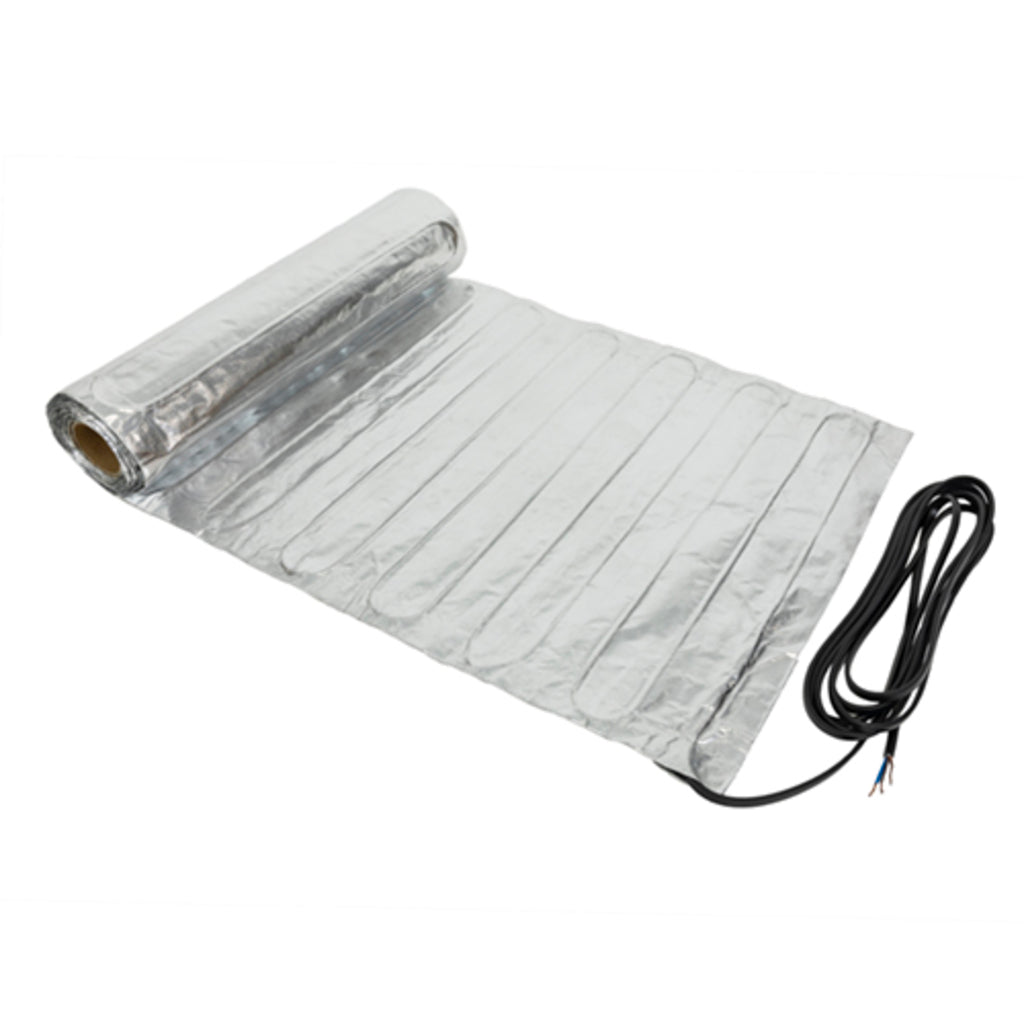

A silver reflective ThermoSphere Heating Foil mat shown partially unrolled, with a black power cord extending from one end on a plain white background.

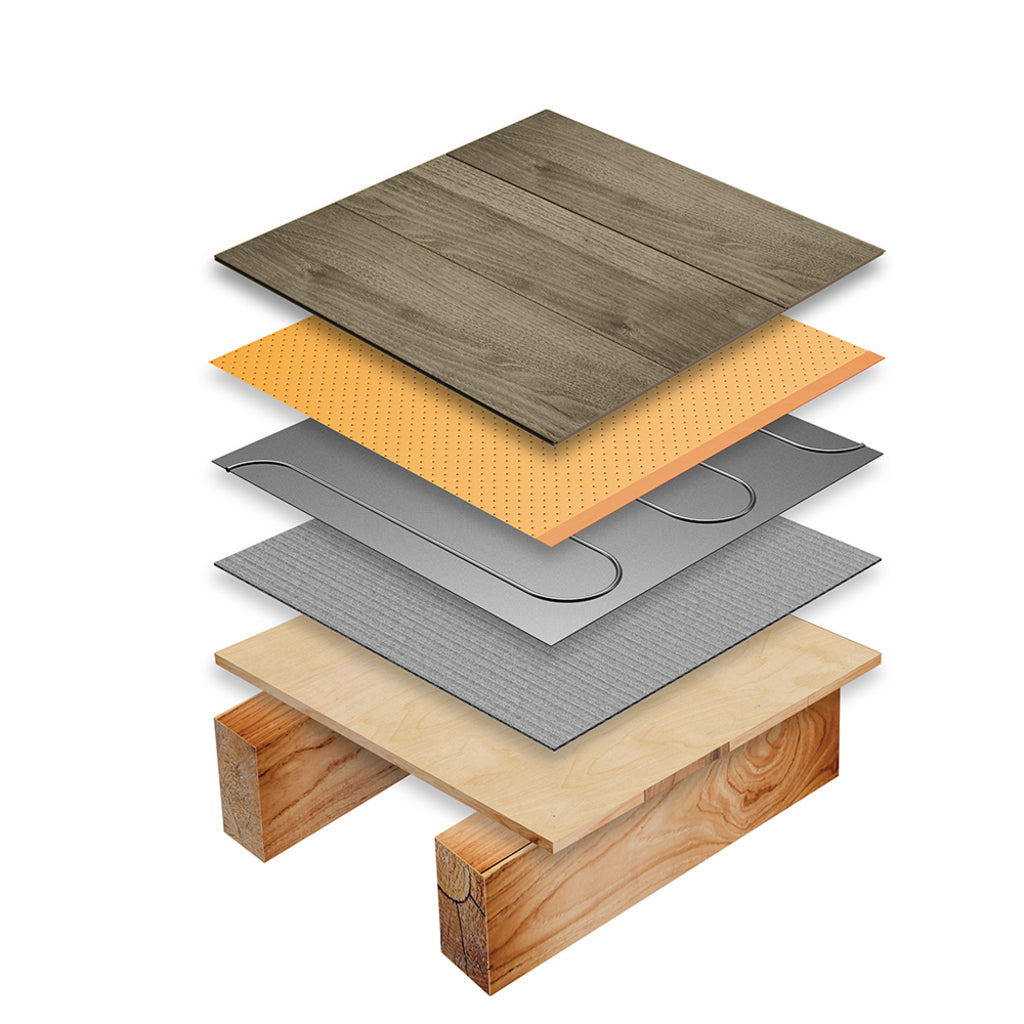

An exploded view diagram of ThermoSphere Heating Foil showing the layered construction, including a wood-flooring look top panel, orange overlay, silver underfloor heating, underlay heating board, and plywood flooring on wooden joists, isolated on a white background.

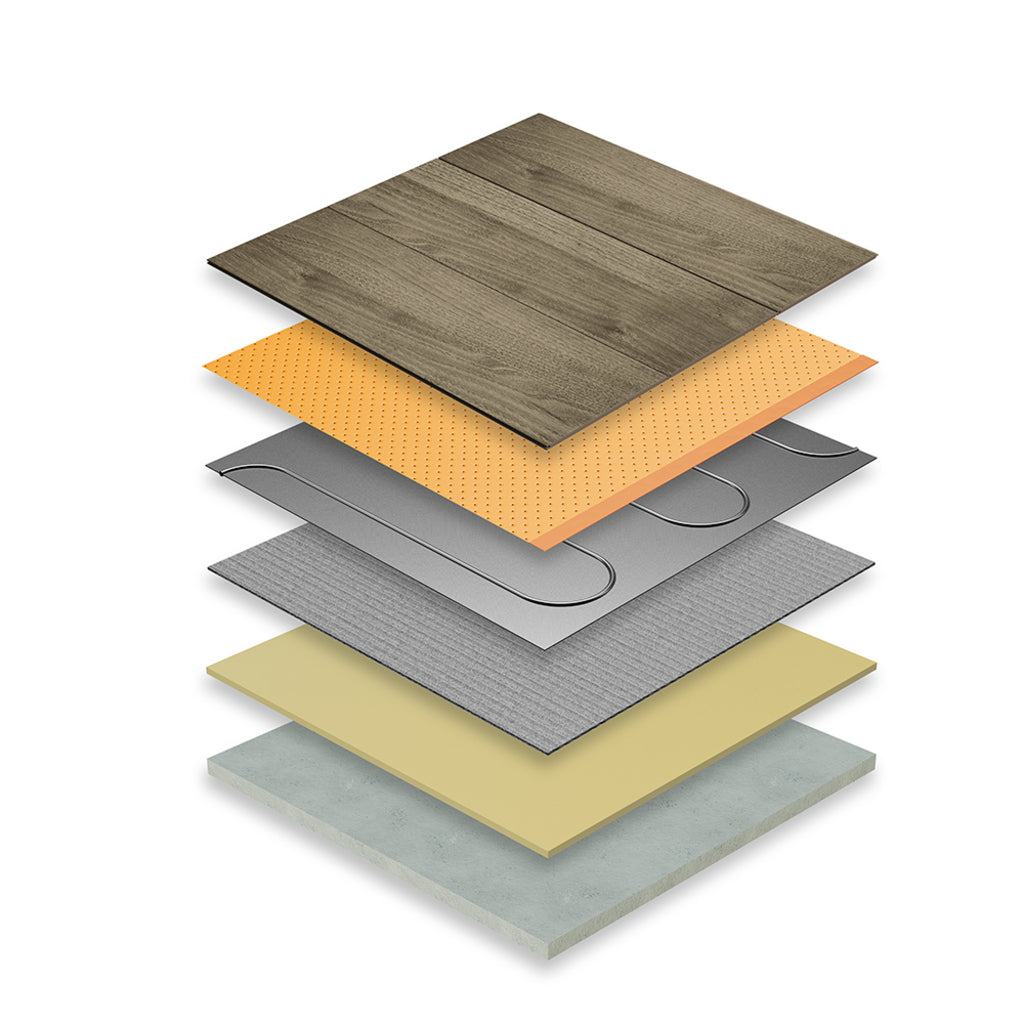

An exploded view diagram of ThermoSphere Heating Foil showing the layered construction, including a wood-flooring look top panel, orange overlay, silver underfloor heating, underlay heating board, and chipboard flooring, isolated on a white background.

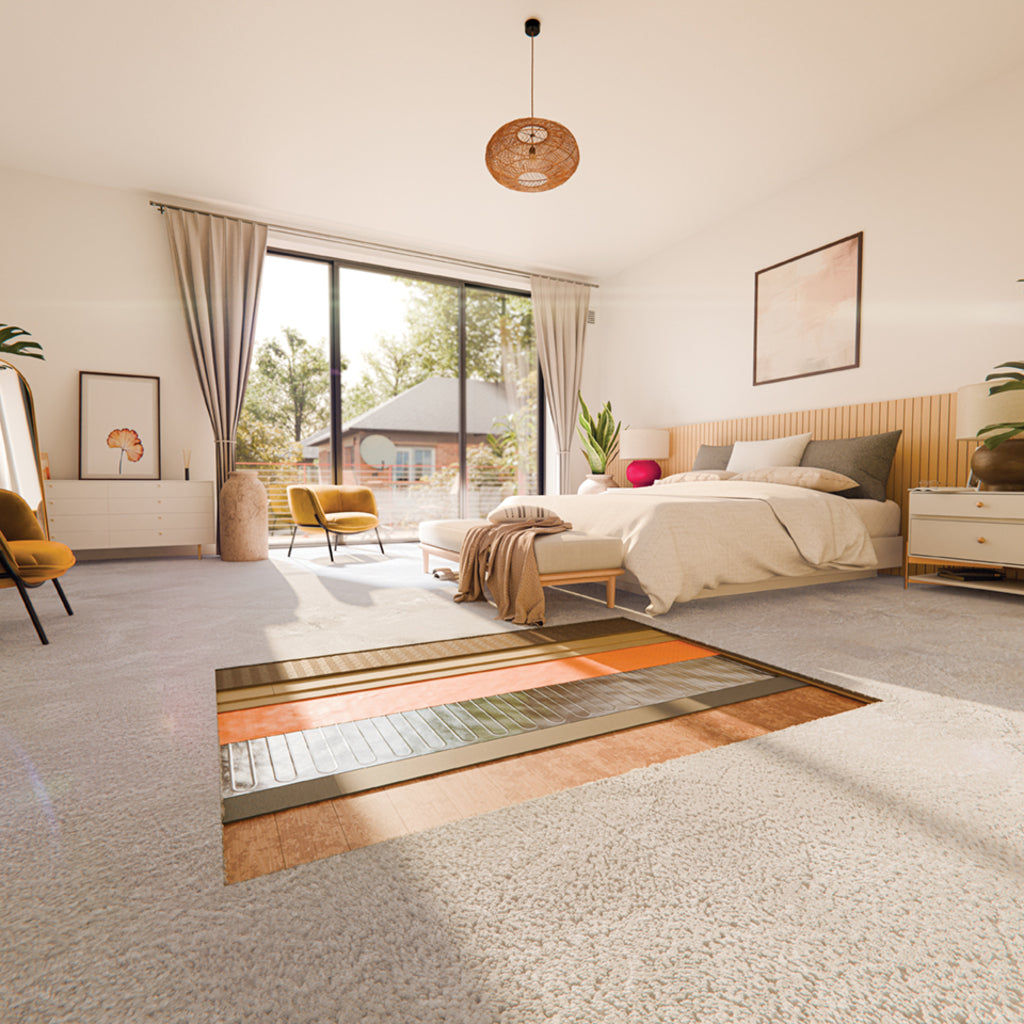

A modern bedroom interior with a cutout on the floor showing the Thermosphere underfloor heating foil with the different layers of substrate.

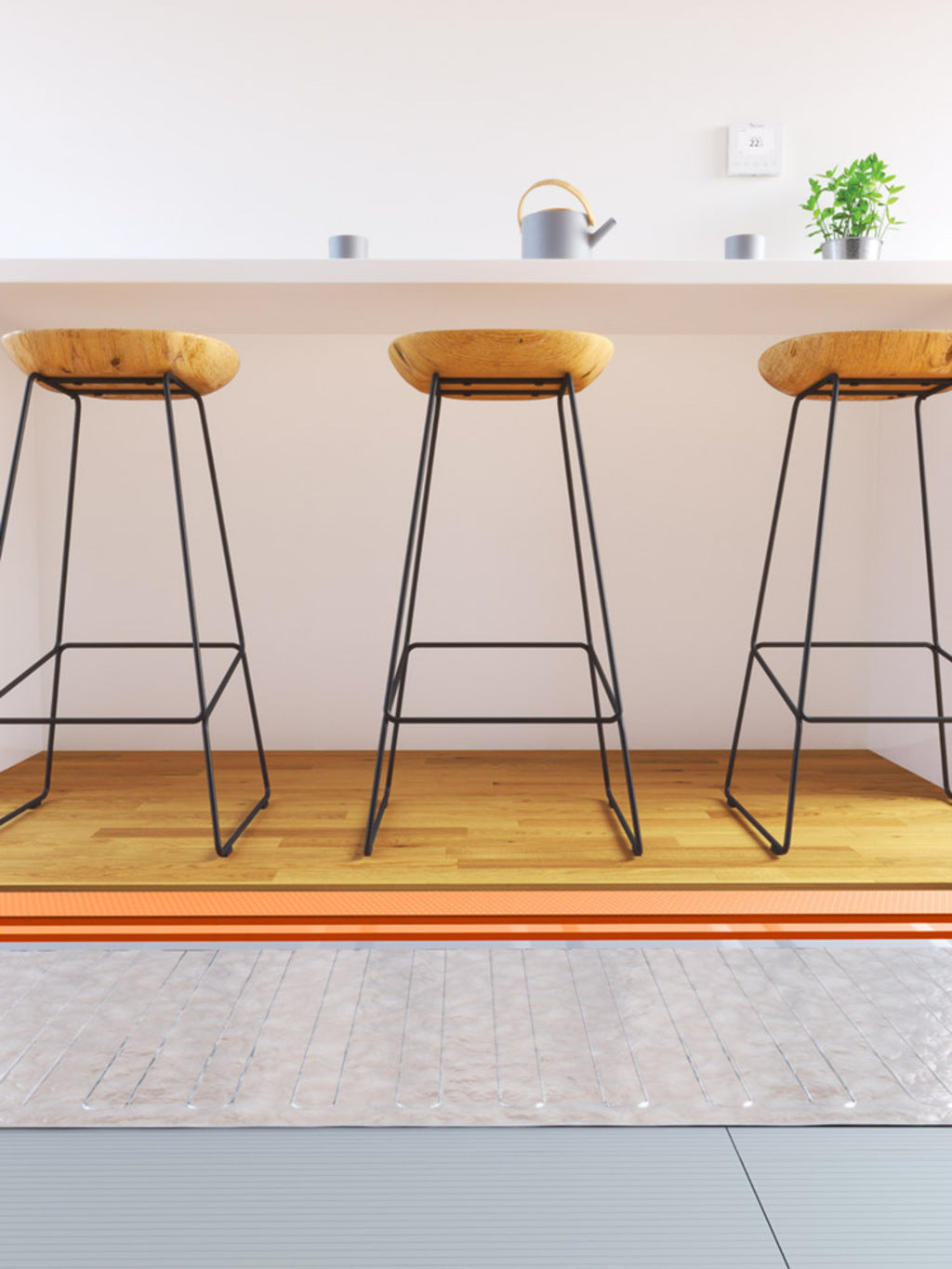

Three wooden bar stools with black metal wire legs are arranged along a white counter in a bright, modern interior with light wood flooring and a cutout showing the Thermosphere underfloor foil heating.
Roll over image to zoom in Click on image to zoom
Thermosphere radiant floor heating mat kit with a roll of orange heating mats, a roll of silver insulation material, a black electrical cable and the overlay boards under the packaging box on a white background.A silver reflective ThermoSphere Heating Foil mat shown partially unrolled, with a black power cord extending from one end on a plain white background.An exploded view diagram of ThermoSphere Heating Foil showing the layered construction, including a wood-flooring look top panel, orange overlay, silver underfloor heating, underlay heating board, and plywood flooring on wooden joists, isolated on a white background.An exploded view diagram of ThermoSphere Heating Foil showing the layered construction, including a wood-flooring look top panel, orange overlay, silver underfloor heating, underlay heating board, and chipboard flooring, isolated on a white background.A modern bedroom interior with a cutout on the floor showing the Thermosphere underfloor heating foil with the different layers of substrate.Three wooden bar stools with black metal wire legs are arranged along a white counter in a bright, modern interior with light wood flooring and a cutout showing the Thermosphere underfloor foil heating.

ThermoSphere Heating Foil Kit 140W c/w Overlay & Underlay

ThermoSphere
Coverage: 1.0m²
Price:
£59.99

Description

The ThermoSphere Heating Foil Kit is a complete, award-winning dry-lay electric underfloor heating system for wood, carpet and vinyl floor finishes, supplied with the cushioning underlay and overlay boards needed for a full installation in one kit.

Key Benefits

  • 140W/m² aluminium fibre heating foil with exposed cable loops for easy installation
  • Kit includes matched cushioning underlay and overlay boards — nothing extra to source
  • Continuous earth sheath, no separate earth tapes or connections required
  • Simple loose-lay installation process, ideal for renovation projects
  • Adds up to 19dB of impact sound reduction underfoot
  • IP68 rated and suitable for bathrooms and kitchens

Applications

Designed for dry installation beneath engineered wood, carpet, laminate and vinyl floor finishes in bedrooms, living rooms, kitchens and bathrooms where a wet tile bed isn't being used.

Performance & Features

The foil conducts heat evenly across the floor while the cushioning underlay and overlay improve underfoot comfort, protect the foil and cables from wear, and add acoustic insulation between floors.

Compatibility

Requires a compatible ThermoSphere thermostat, such as the T-MO, for control. HDF Overlay Boards are recommended in addition for floor finishes other than engineered timber 10mm or thicker.

Supplied by Millcot as part of our full ThermoSphere underfloor heating range.

Downloads

FAQs

What floor finishes is this suitable for?
Engineered wood, carpet, laminate and vinyl. For finishes other than engineered timber 10mm+, also fit HDF Overlay Boards (WCVF-HDFO).

What's included in the kit?
The heating foil mat plus matched cushioning underlay and overlay boards for the stated coverage area.

Do I need a thermostat separately?
Yes, a compatible thermostat such as the ThermoSphere T-MO is required and sold separately.

Can this go under tiles?
Foil systems are designed for dry-lay finishes; for tiled floors, use the ThermoSphere Mesh or Ultimate cable/membrane systems instead.

Is it safe in bathrooms?
Yes, the foil is IP68 rated, though always follow zone requirements for electrical installations in bathrooms.
