Description
ThermoSphere HDF Overlay Boards are 7mm high-density fibreboard panels fitted above ThermoSphere Heating Foil, required whenever the finished floor covering is anything other than engineered timber 10mm thick or more.
Key Benefits
- 7mm HDF board, 1.2m x 0.5m per board, supplied in packs of 4 pairs (2.88m²)
- Required beneath carpet, vinyl and other floor finishes over heating foil
- Provides a firm, load-spreading surface above the foil and cables
- Protects the heating system during and after installation
Applications
Used above ThermoSphere Heating Foil wherever the final floor covering is carpet, vinyl, laminate, or engineered timber under 10mm thick.
Performance & Features

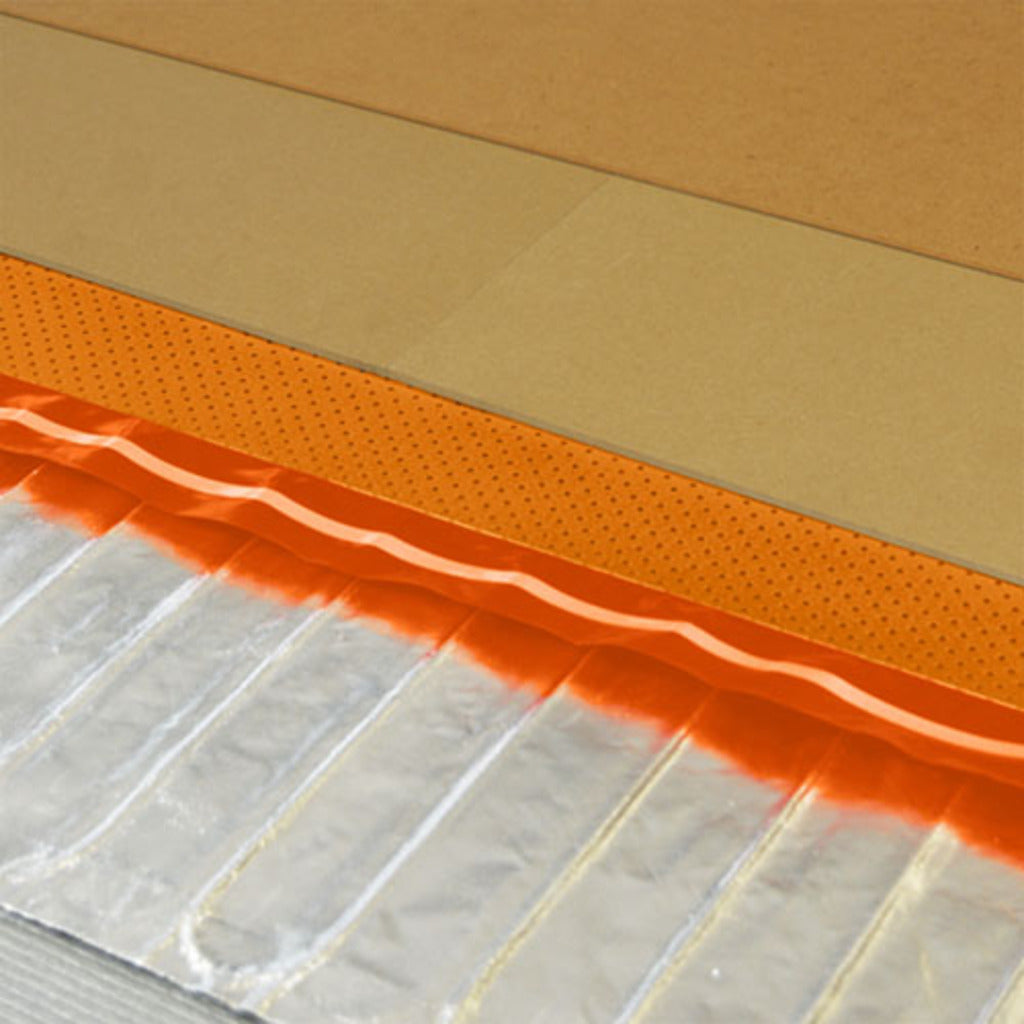

Fitted above the cushioning overlay and heating foil, the HDF board spreads point loads and protects the heating elements beneath floor finishes that need a firmer, load-bearing surface.
Compatibility
Designed for use with the ThermoSphere Heating Foil (WCVF-140) range, in addition to the standard Cushioning Underlay and Overlay.
Supplied by Millcot as part of our full ThermoSphere underfloor heating range.
Downloads
- ThermoSphere Heating Foil Data Sheet (PDF)
- ThermoSphere Heating Foil Installation Instructions (PDF)
FAQs
When do I need HDF Overlay Boards?
Whenever your floor finish is anything other than engineered timber 10mm thick or more — for example carpet, vinyl or thinner timber.
Do I still need the cushioning overlay as well?
Yes, the HDF board is an additional layer on top of the standard cushioning underlay and overlay, not a replacement for them.
How much coverage does one pack give?
Each pack covers 2.88m² (4 pairs of boards) — calculate packs needed based on your total floor area.
