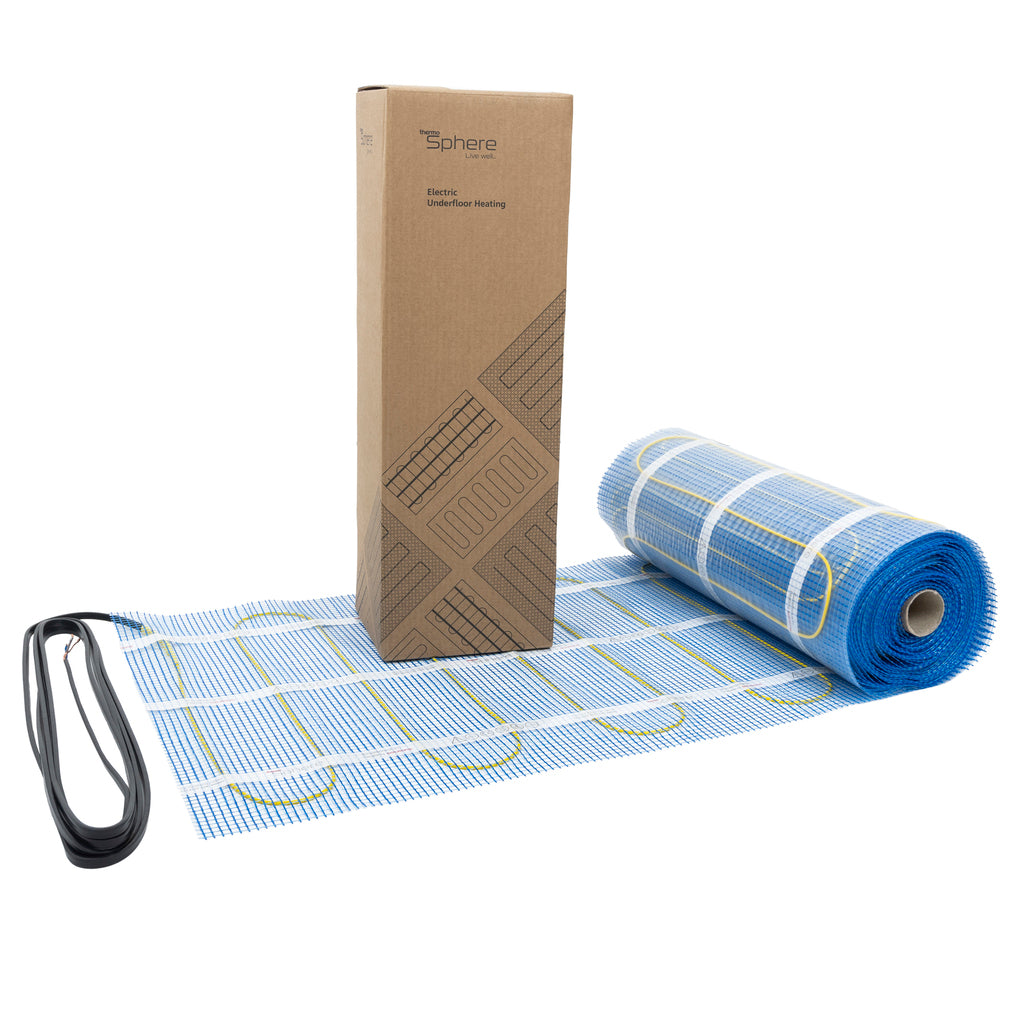

Thermosphere electric underfloor heating mat shown unrolled with its brown cardboard packaging box and a black cable on a white background.

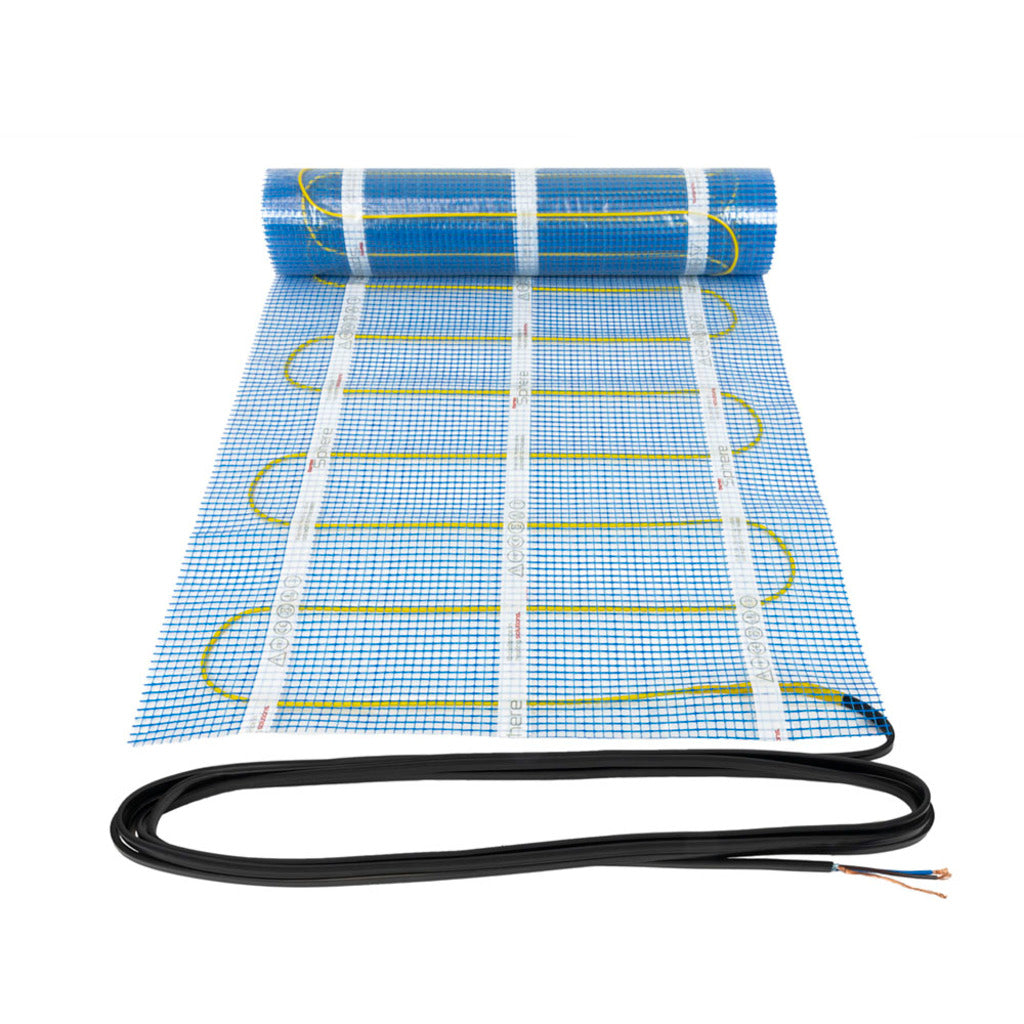

A blue and white grid-patterned floor heating mat, partially unrolled to show the serpentine yellow-green electrical trace, with a black cable running along the bottom, photographed on a solid white background.

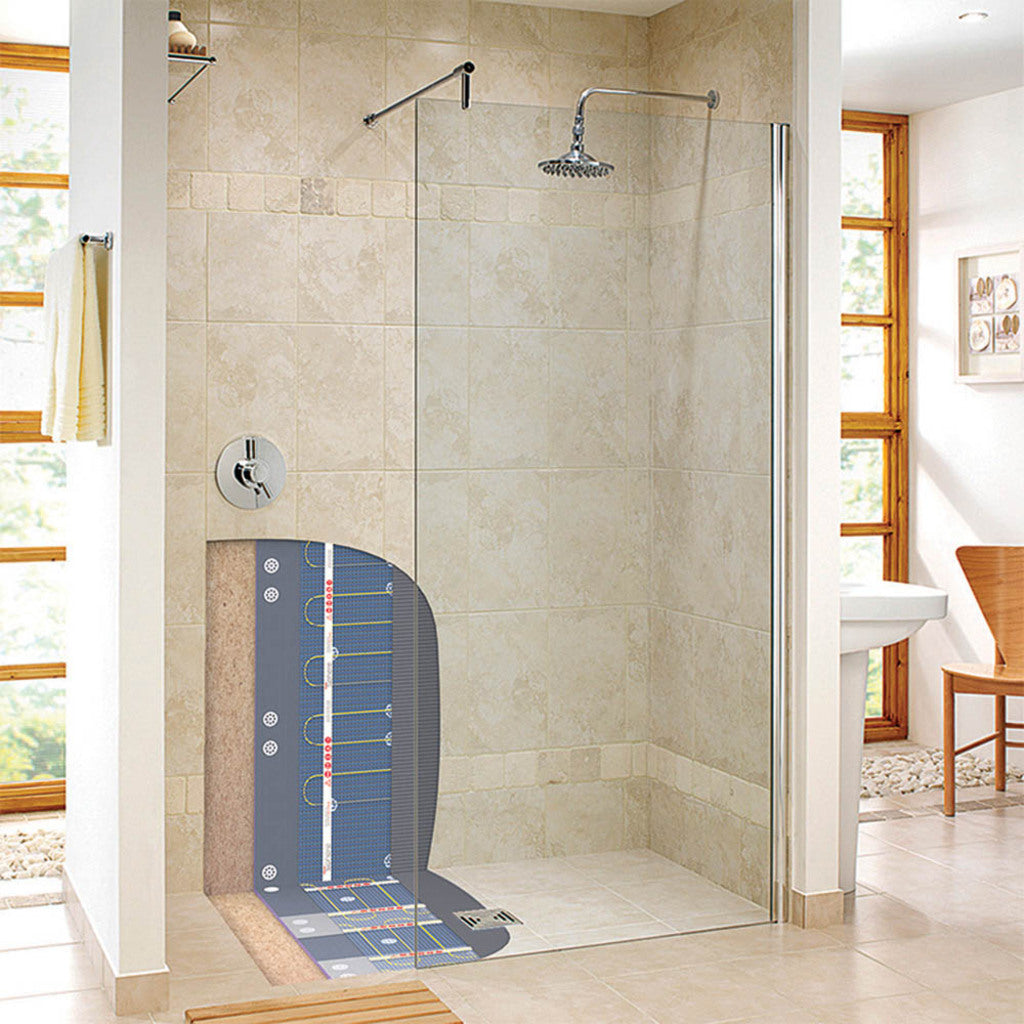

A frameless glass shower door installed in a tiled bathroom shower enclosure, shown with a transparent panel overlay highlighting the glass profile and hardware details. Cutout on the tiled wall and floor shows the Thermosphere heating mesh behind.

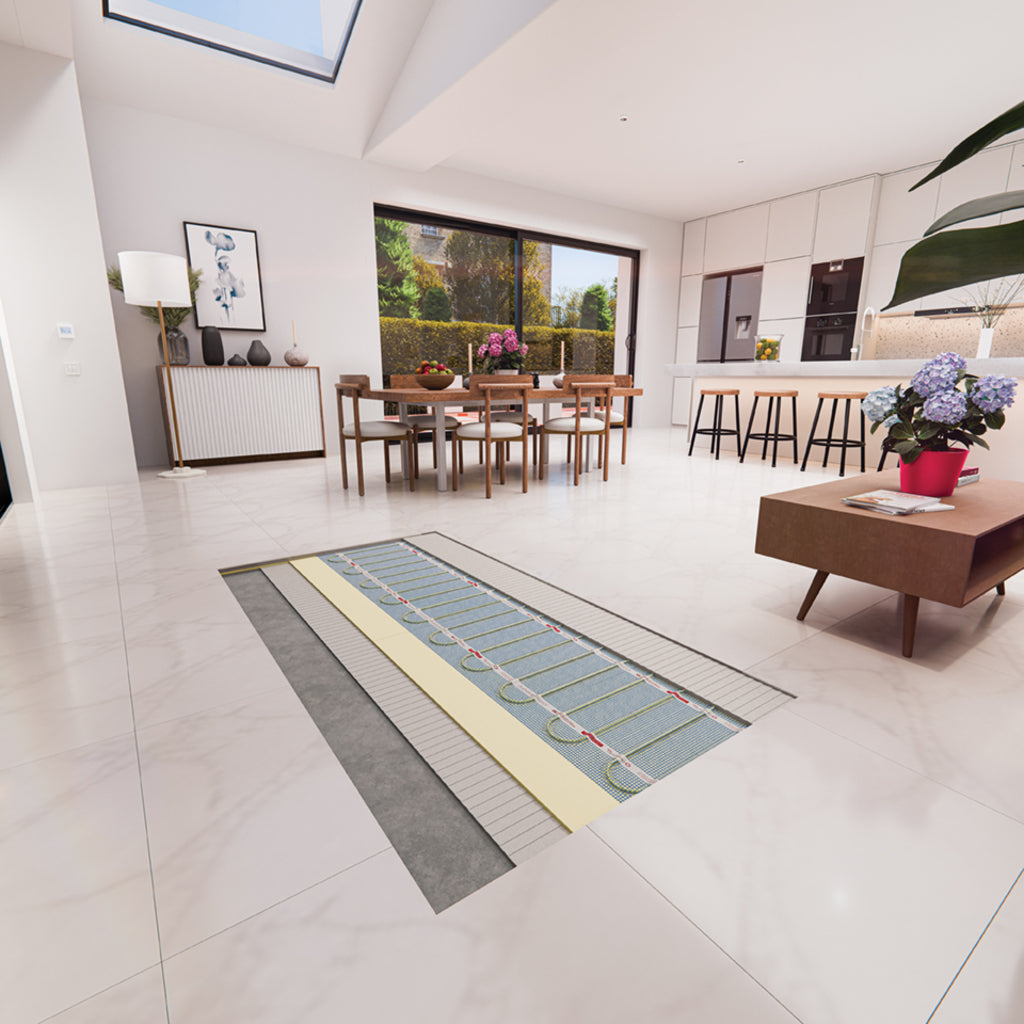

A radiant floor heating system shown installed in a large light-colored tiled living room and kitchen. The heating mat features a gray outer border, a pale yellow center, and multiple rows of red and blue heating elements.

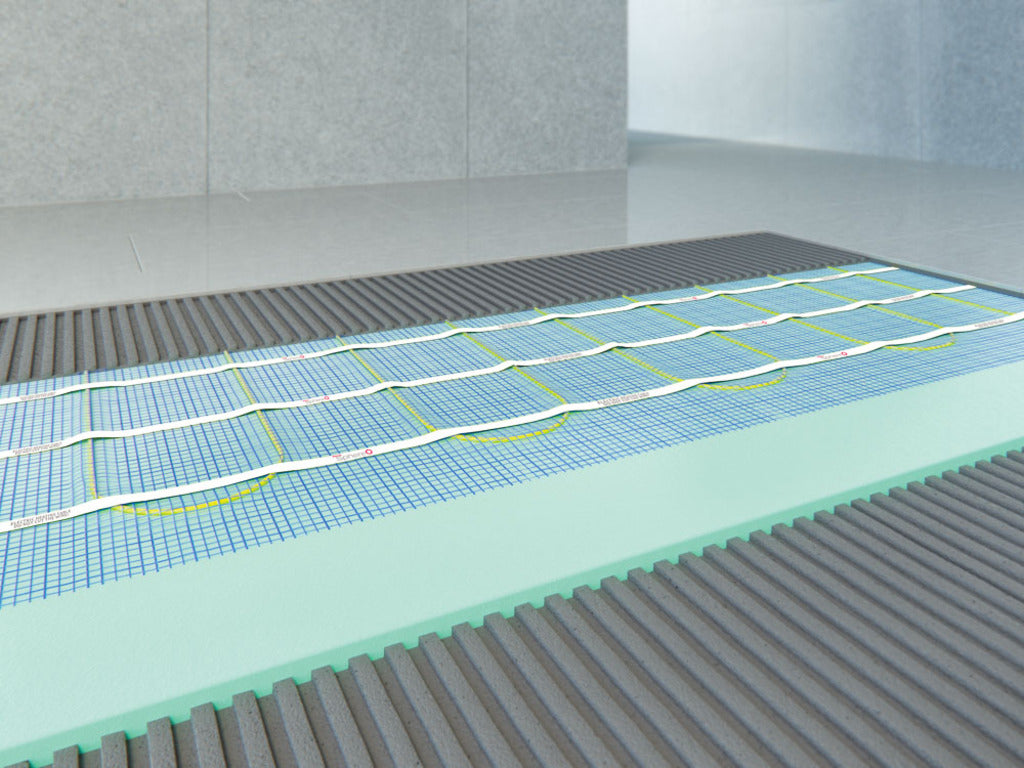

Underfloor heating system diagram showing a blue grid floor mat with white and yellow heating pipes, layered over a light green insulation board and finished with a dark gray ribbed protective cover.

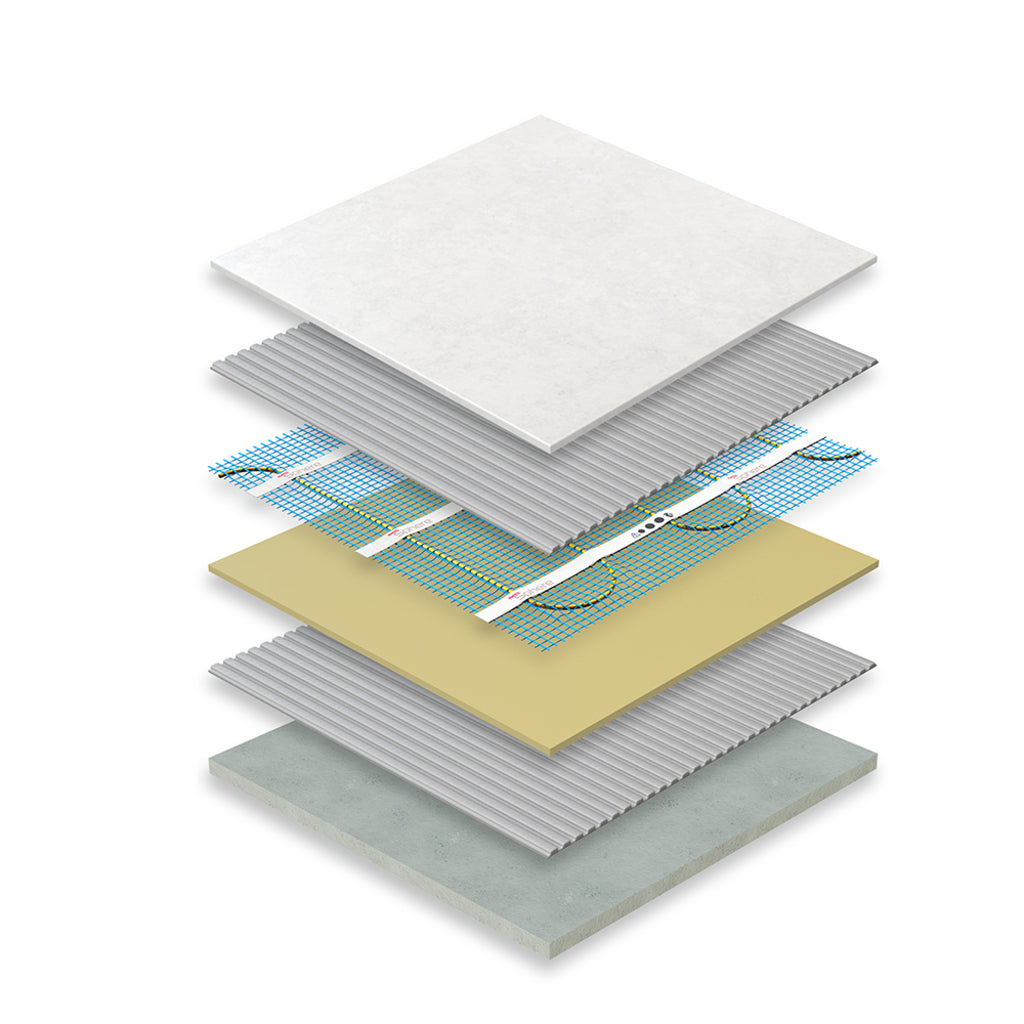

An exploded stack diagram of layered flooring or tile materials on a white background, showing thermosphere underfloor heating mesh above insulation panels on top of tile adhesive and then the susbrate at the bottom.

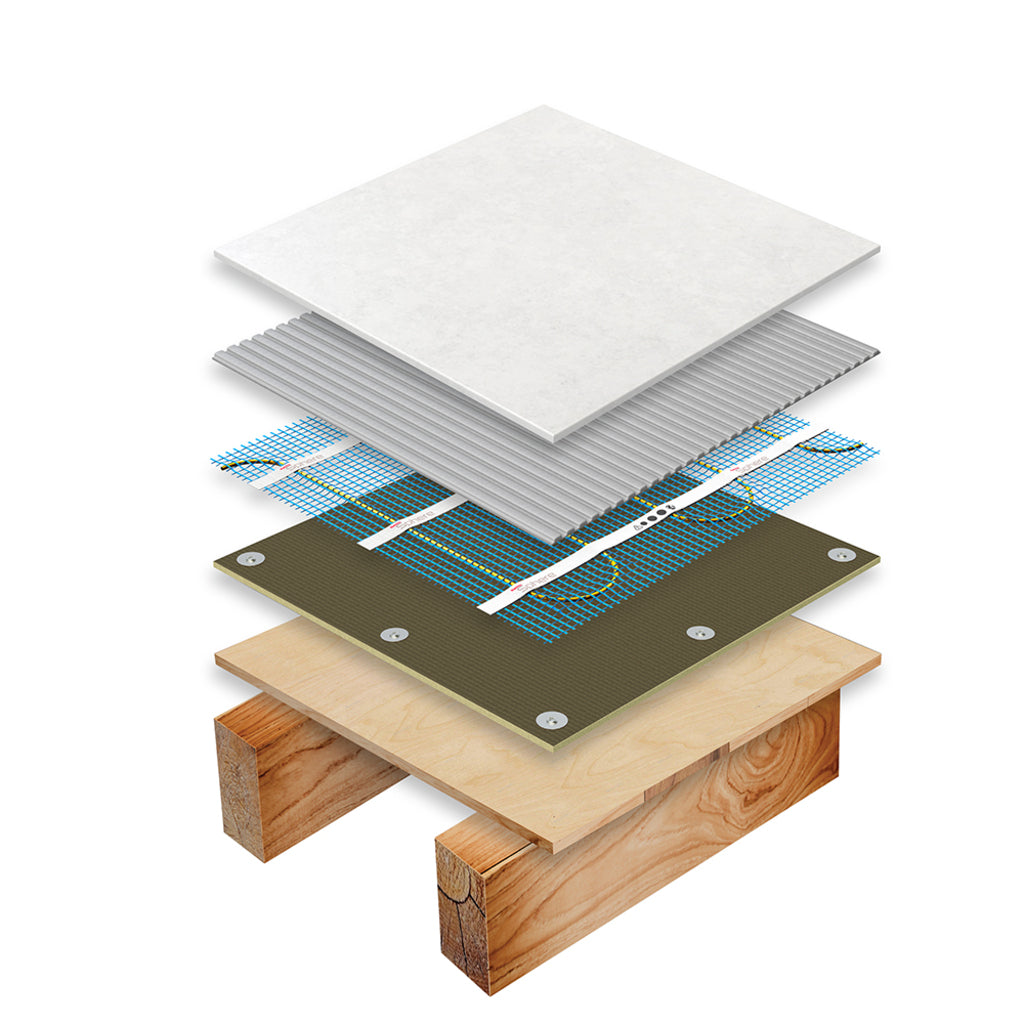

An exploded view diagram of a modular wood deck system, showing stacked layers including a white top tile, gray slats, blue and green underfloor heating mesh , a dark backing board, a light wood plywood base, and wooden support beams on a white background.
Roll over image to zoom in Click on image to zoom
Thermosphere electric underfloor heating mat shown unrolled with its brown cardboard packaging box and a black cable on a white background.A blue and white grid-patterned floor heating mat, partially unrolled to show the serpentine yellow-green electrical trace, with a black cable running along the bottom, photographed on a solid white background.A frameless glass shower door installed in a tiled bathroom shower enclosure, shown with a transparent panel overlay highlighting the glass profile and hardware details. Cutout on the tiled wall and floor shows the Thermosphere heating mesh behind.A radiant floor heating system shown installed in a large light-colored tiled living room and kitchen. The heating mat features a gray outer border, a pale yellow center, and multiple rows of red and blue heating elements.Underfloor heating system diagram showing a blue grid floor mat with white and yellow heating pipes, layered over a light green insulation board and finished with a dark gray ribbed protective cover.An exploded stack diagram of layered flooring or tile materials on a white background, showing thermosphere underfloor heating mesh above insulation panels on top of tile adhesive and then the susbrate at the bottom.An exploded view diagram of a modular wood deck system, showing stacked layers including a white top tile, gray slats, blue and green underfloor heating mesh , a dark backing board, a light wood plywood base, and wooden support beams on a white background.

ThermoSphere Self-Adhesive Mesh 100W/m²

ThermoSphere
Coverage: 1.0m²
Price:
£41.99

Description

ThermoSphere Self-Adhesive Mesh 100W/m² is a fully self-adhesive electric underfloor heating mat designed to provide gentle, supplementary warmth beneath ceramic, porcelain and natural stone tiles in well-insulated rooms.

Key Benefits

  • Fully self-adhesive mesh sticks wire side down, protecting the heating cable during installation
  • TwistedTwin heating cable construction with full earth protection
  • IP68 rated — safe for bathrooms, showers and wetrooms
  • 3.5mm thick mat with a low-profile LayFlat cold tail
  • Can also be used under tiled walls
  • Available in 12 sizes from 1.0m² to 12.0m²

Applications

Best suited to well-insulated bathrooms, ensuites and kitchens where a gentle top-up of warmth underfoot is wanted rather than full primary heating, and to tiled wall applications.

Performance & Features

The self-adhesive backing sticks the mesh directly to the substrate wire-side down, protecting the cable while tile adhesive is applied over the top, giving a fast, tidy installation.

Compatibility

Requires a compatible ThermoSphere thermostat, such as the T-MO, for control. Fit over a rigid, stable substrate suitable for tiling.

Supplied by Millcot as part of our full ThermoSphere underfloor heating range.

Downloads

FAQs

Is 100W/m² enough to heat a room fully?
100W/m² is generally best used as supplementary warmth in well-insulated spaces; for primary heating consider the 150W or 200W mesh.

Can this go on walls as well as floors?
Yes, it can also be used under tiled walls in addition to floors.

What substrate does it need?
A rigid, stable, clean substrate suitable for tiling — check the datasheet for full substrate preparation guidance.

Is it safe for wet areas?
Yes, it's IP68 rated and suitable for bathrooms, showers and wetrooms when installed correctly.

Do I need a thermostat?
Yes, a compatible ThermoSphere thermostat is required and sold separately.
