Description
The Genesis TDP225 Outdoor Aluminium Square Edge Tile Trim is a 22.5mm aluminium profile with a bold 10mm top face, designed to show off its finish while protecting exposed tile edges on balconies, terraces, patios and other external areas. It can also be used as a feature strip. Supplied in 2.5m lengths in six silver, black and stone-effect finishes.
Key benefits
- Bold 10mm square top face makes a feature of the finish
- 22.5mm height suits 2cm outdoor tiles and paving

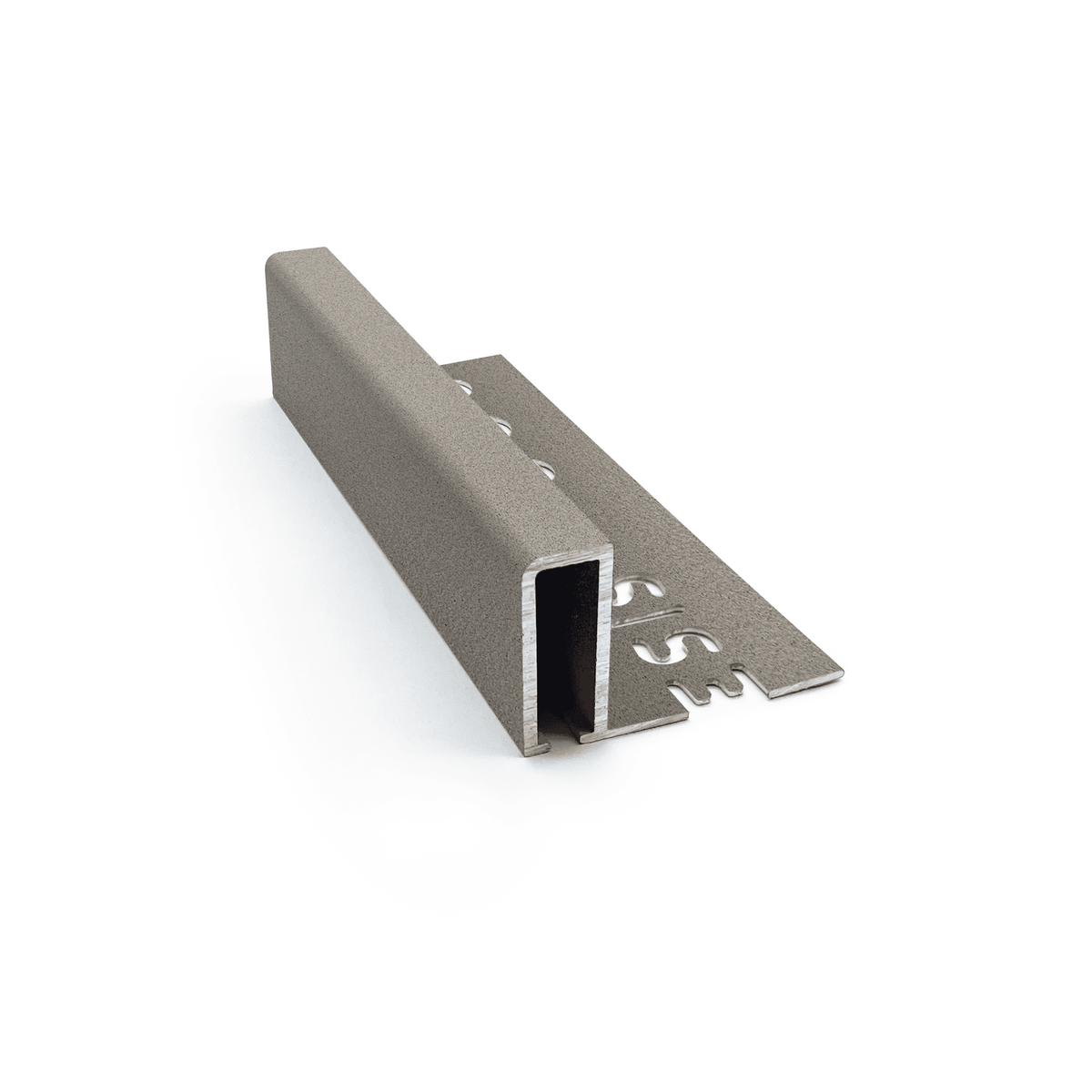

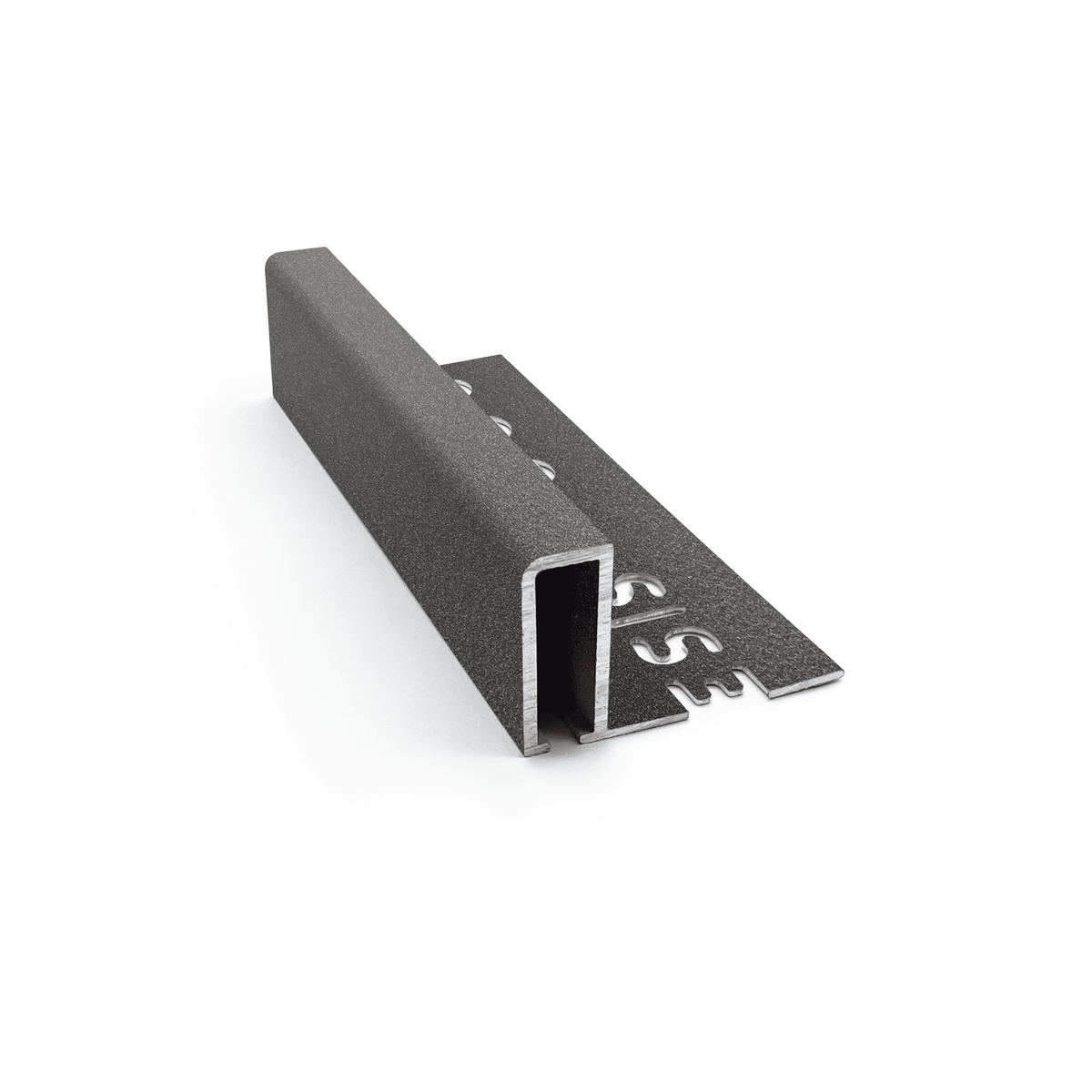

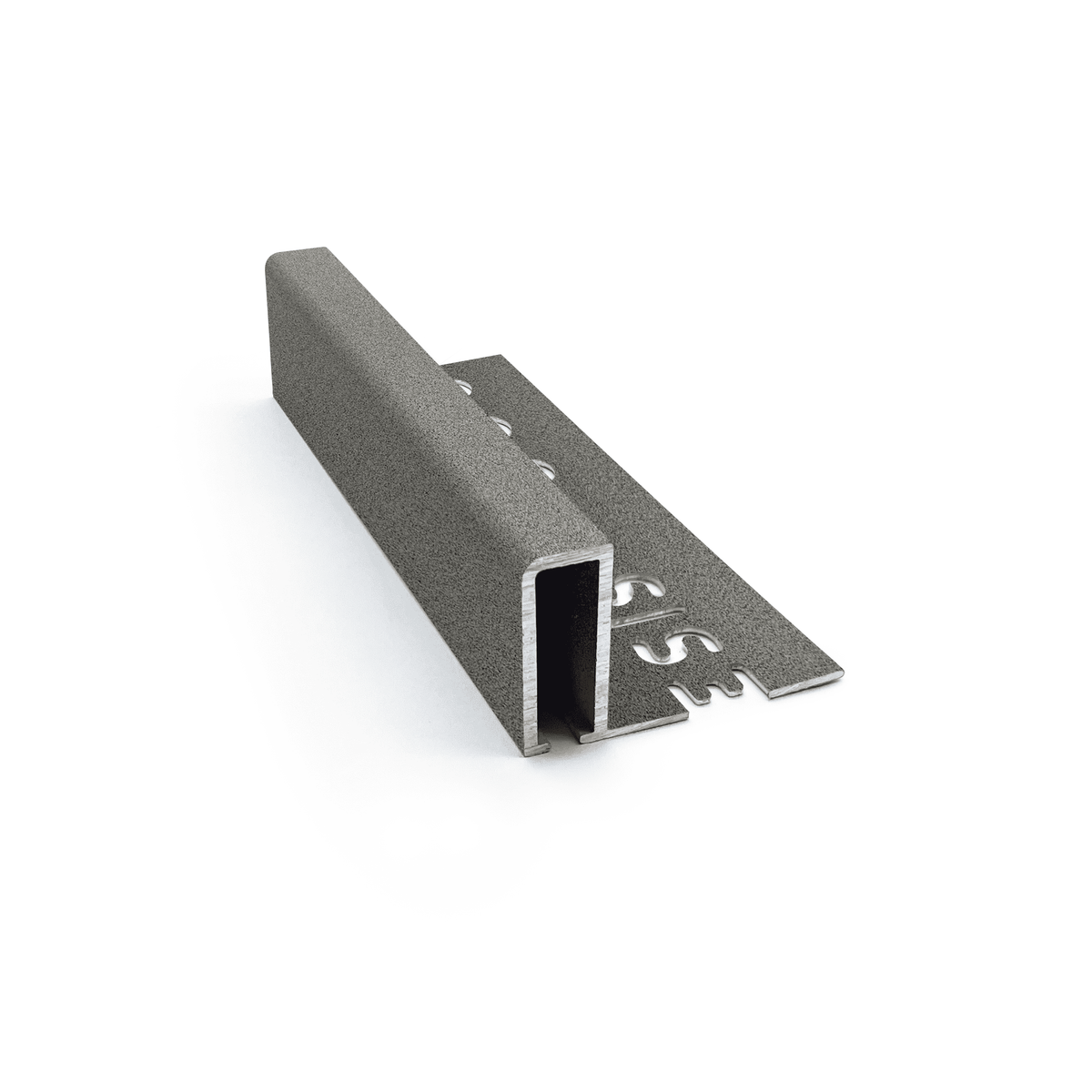

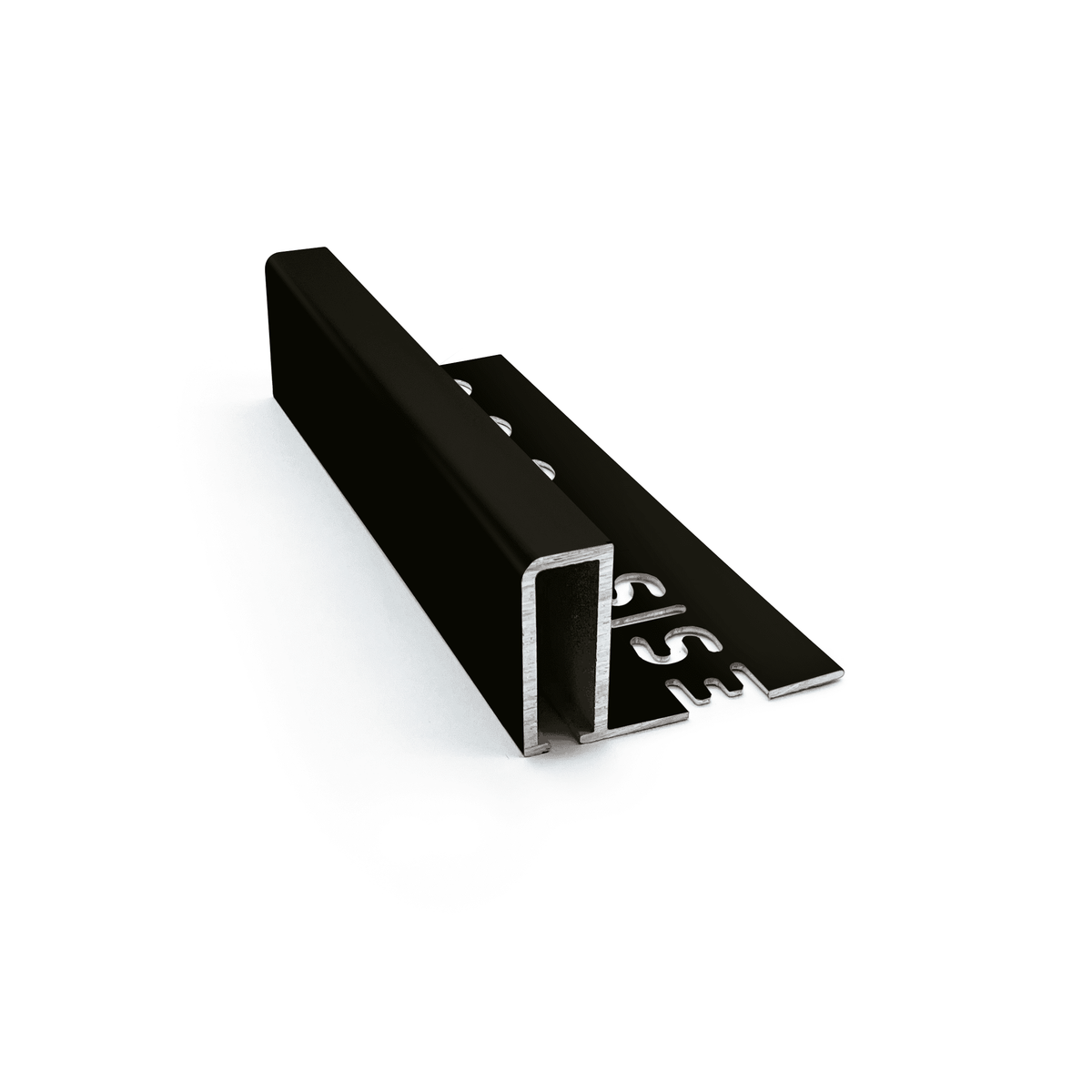

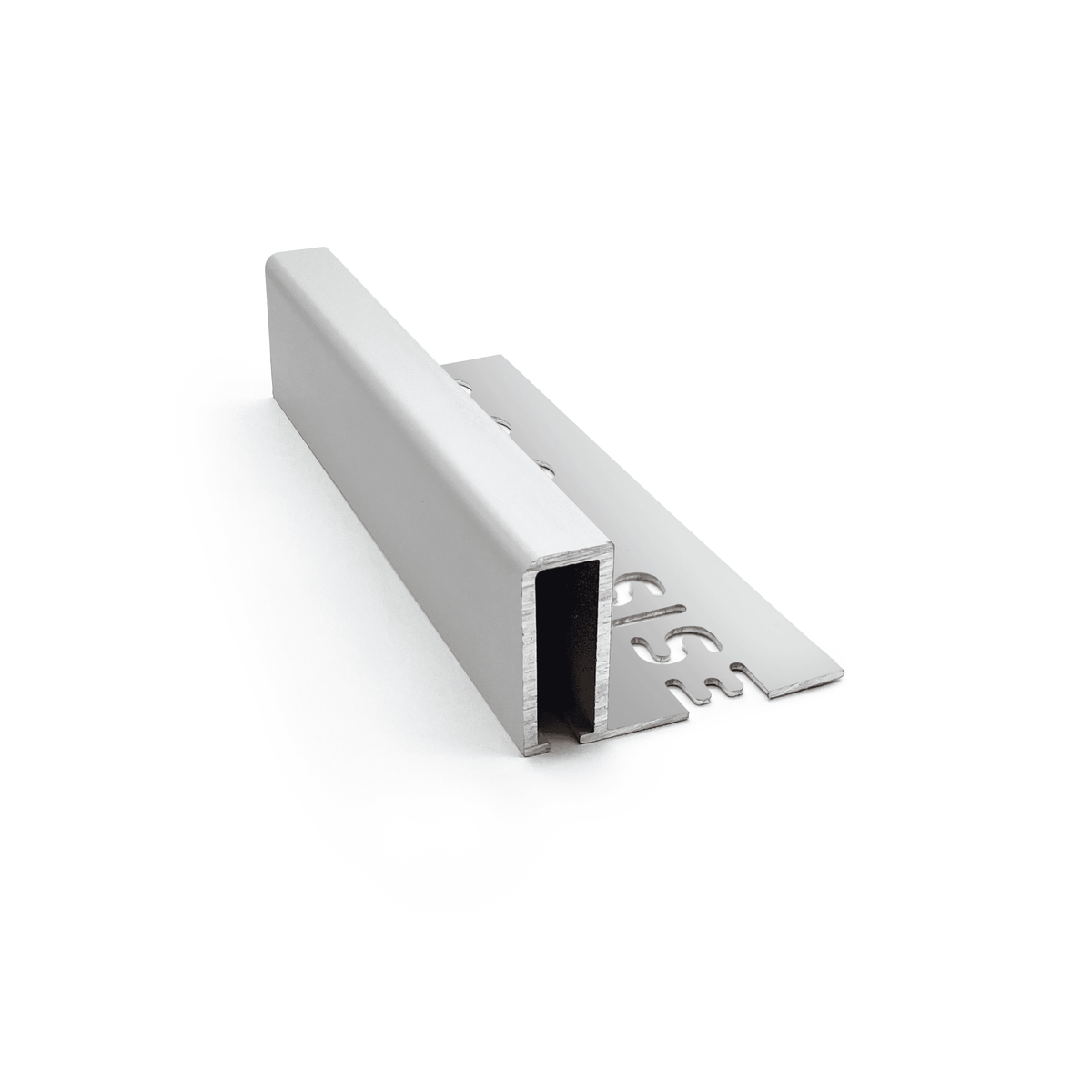

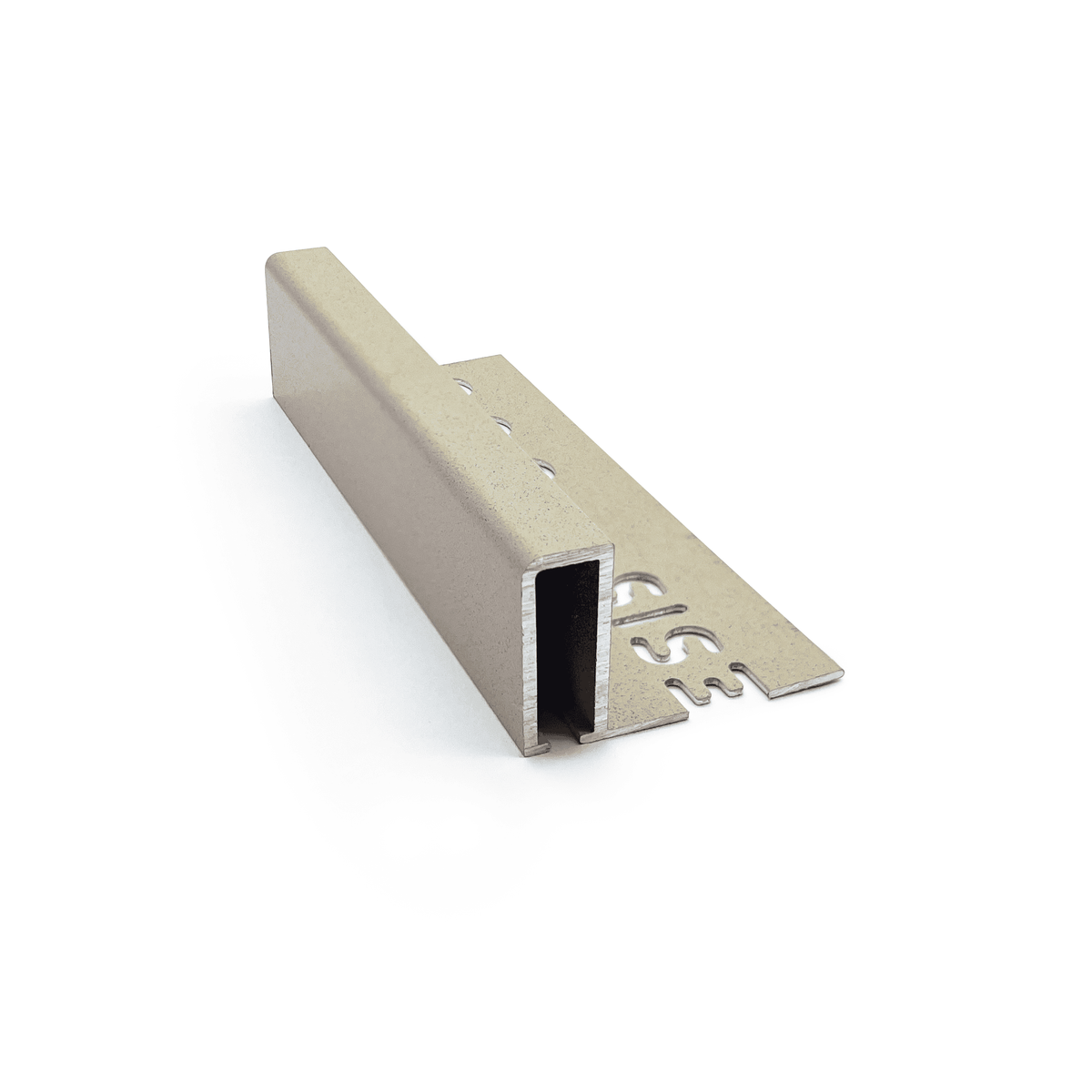

- Six finishes: Matt Black, Matt Silver and four stone effects
- Can be used as edge protection or as a decorative feature strip
- Wide 39mm perforated flange keys securely into tile adhesive
- Stone finishes blend with natural-look porcelain and stone paving
Applications
Used by professional tilers, landscapers, builders and DIY users to finish exposed tile edges, or as a feature strip, on balconies, terraces, patios, steps and other external areas. Suitable for porcelain, ceramic and natural stone tiles and slabs.
Performance and features
- Profile: square edge, 10mm top face (TDP225)
- Height: 22.5mm
- Flange: 39mm wide, 1mm thick, perforated
- Length: 2.5m
- Material: Aluminium AA 6063 T6 / UNS A96063, anodised to DIN 17611
Compatibility
Choose your finish from the Finish option and select the profile to suit your tile thickness. It is bedded into tile adhesive and works with ceramic, porcelain and natural stone tiles. Make sure it is fully embedded with no voids, as cement-based materials can corrode aluminium if left in contact for extended periods. Pair with Millcot flexible tile adhesives, grouts and tanking systems for a complete outdoor installation.
Supplied by Millcot, your trusted UK trade supplier of tiling, wetroom and building products.
Technical specifications
- Brand: Genesis
- Range: TDP225 Outdoor, Balcony & Landscaping Square Edge
- Profile: Square edge
- Height: 22.5mm
- Top face width: 10mm
- Flange width: 39mm
- Flange thickness: 1mm
- Length: 2.5m
- Material: Aluminium AA 6063 T6 / UNS A96063, anodised to DIN 17611
- Finish: See Finish option
- Fitting type: Bedded in tile adhesive, mechanical fix if required
- Use: Internal and external
- Pack quantity: 1 x 2.5m length
What's included
- 1 x 2.5m Genesis TDP225 Outdoor Aluminium Square Edge Tile Trim in your chosen finish
Frequently asked questions
What tile thickness is the TDP225 for?
It has a 22.5mm height and is designed for use with 2cm tiles.
Can it be used outdoors?
Yes, the TDP225 is part of the Genesis Outdoor, Balcony and Landscaping range.
What is the difference between square edge and straight edge?
The TDP has a 10mm flat top face that stands out as a feature, while a straight edge such as the ESA225 has a slim 3mm face. Both protect the tile edge, so choose by the look you want.
How do I fix it?
Trowel adhesive around the tiled perimeter, press the perforated anchoring leg into the adhesive and align it, then trowel more adhesive over the leg. Embed the tiles flush with the top of the profile, never higher, then fill the joint completely with grout. Mechanical fixing is possible if required.
Can I cut it to length?
Yes, use a fine-tooth hacksaw or metal-cutting blade and file the end smooth.
How do I keep the finish looking good?
Remove adhesive and grout residue promptly and clean with a pH-neutral detergent or diluted colourless alcohol and a soft cloth. Avoid acidic cleaners and abrasive pads.
