Description

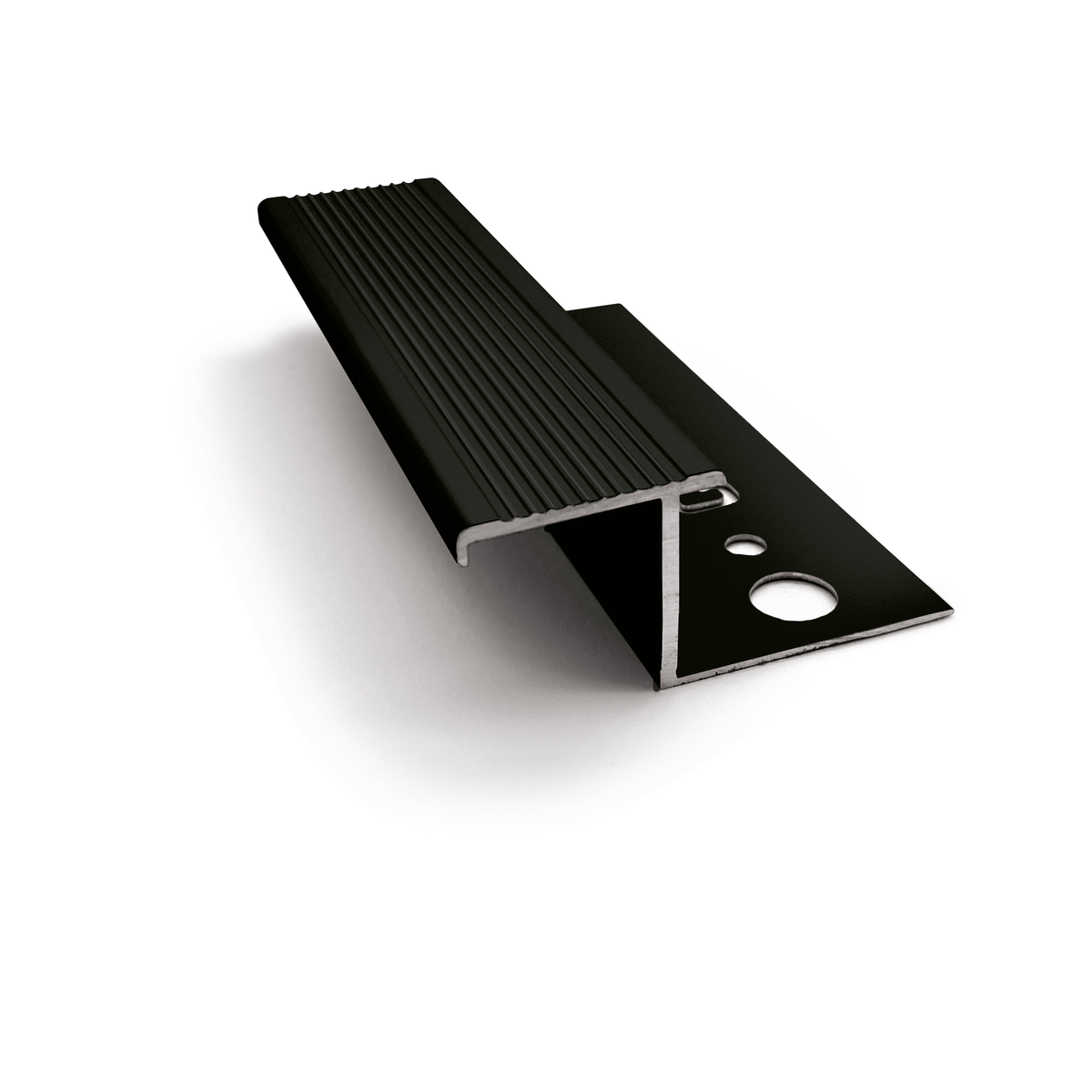

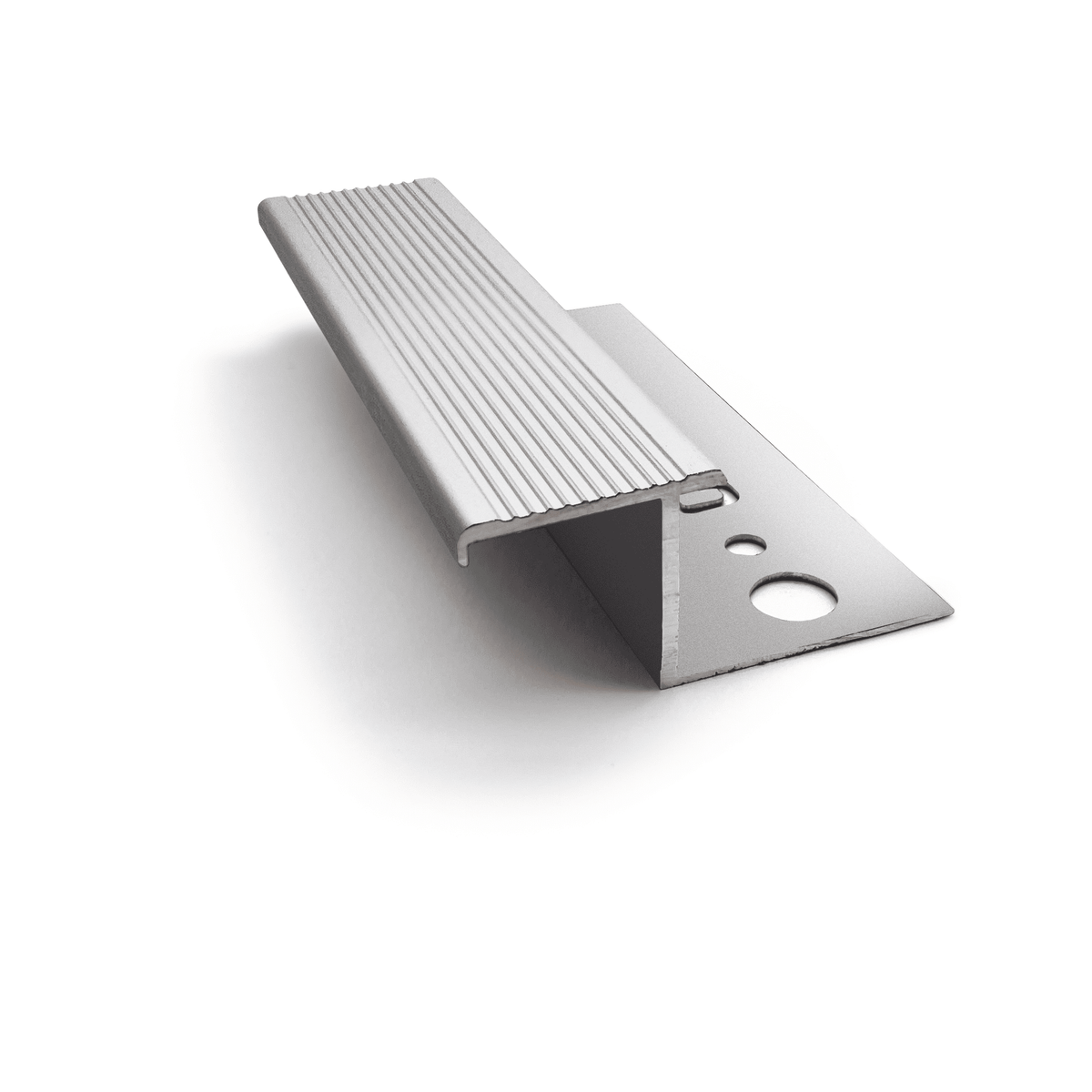

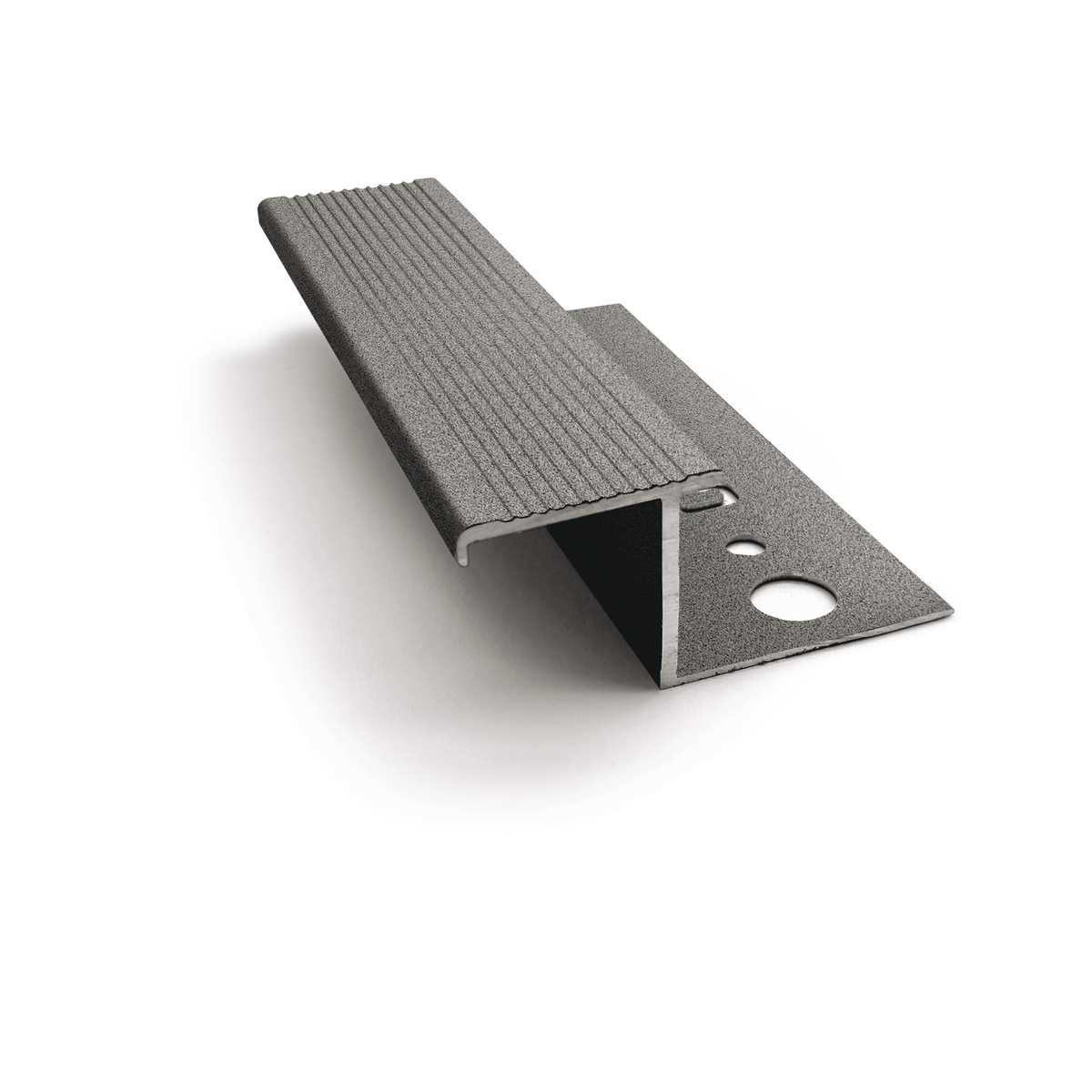

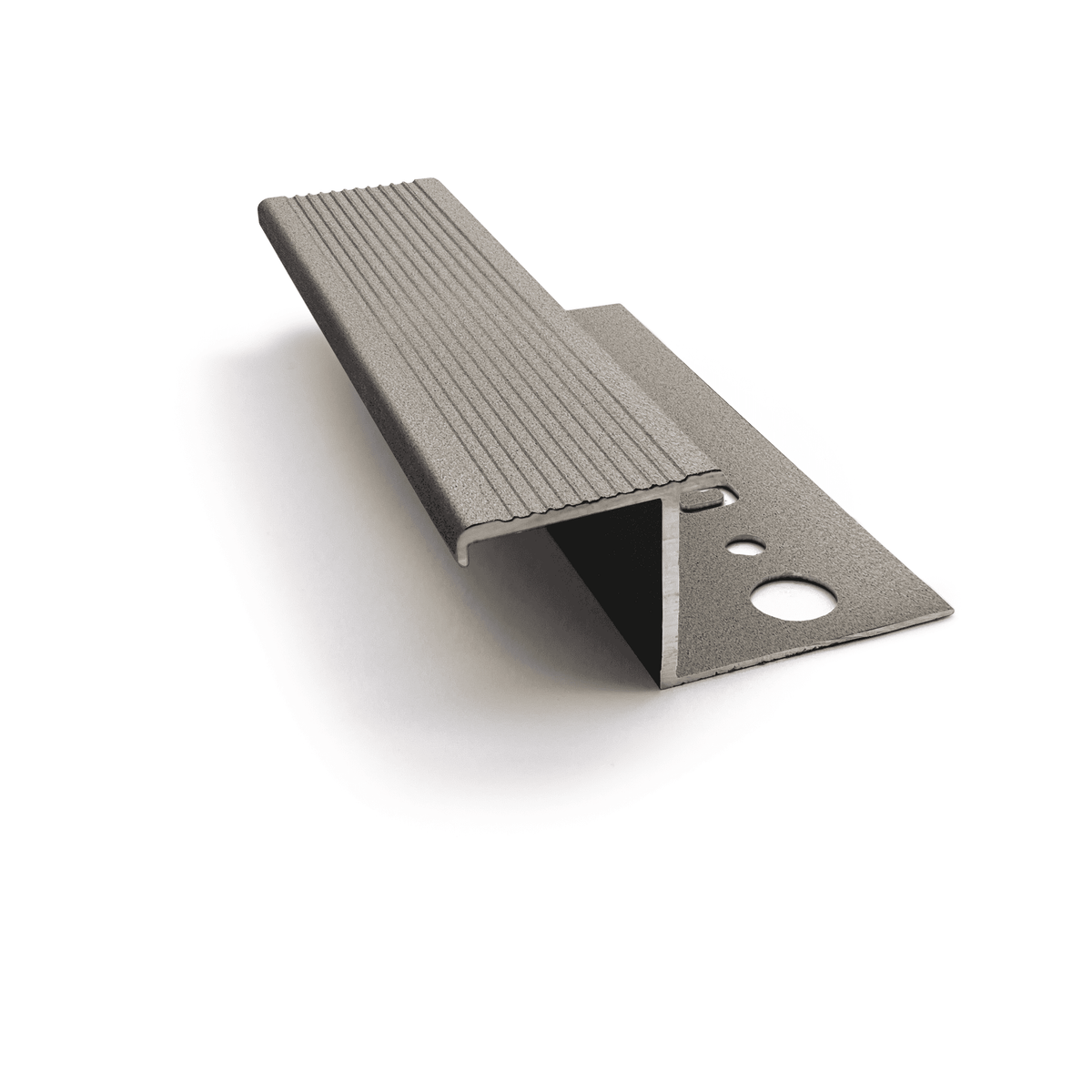

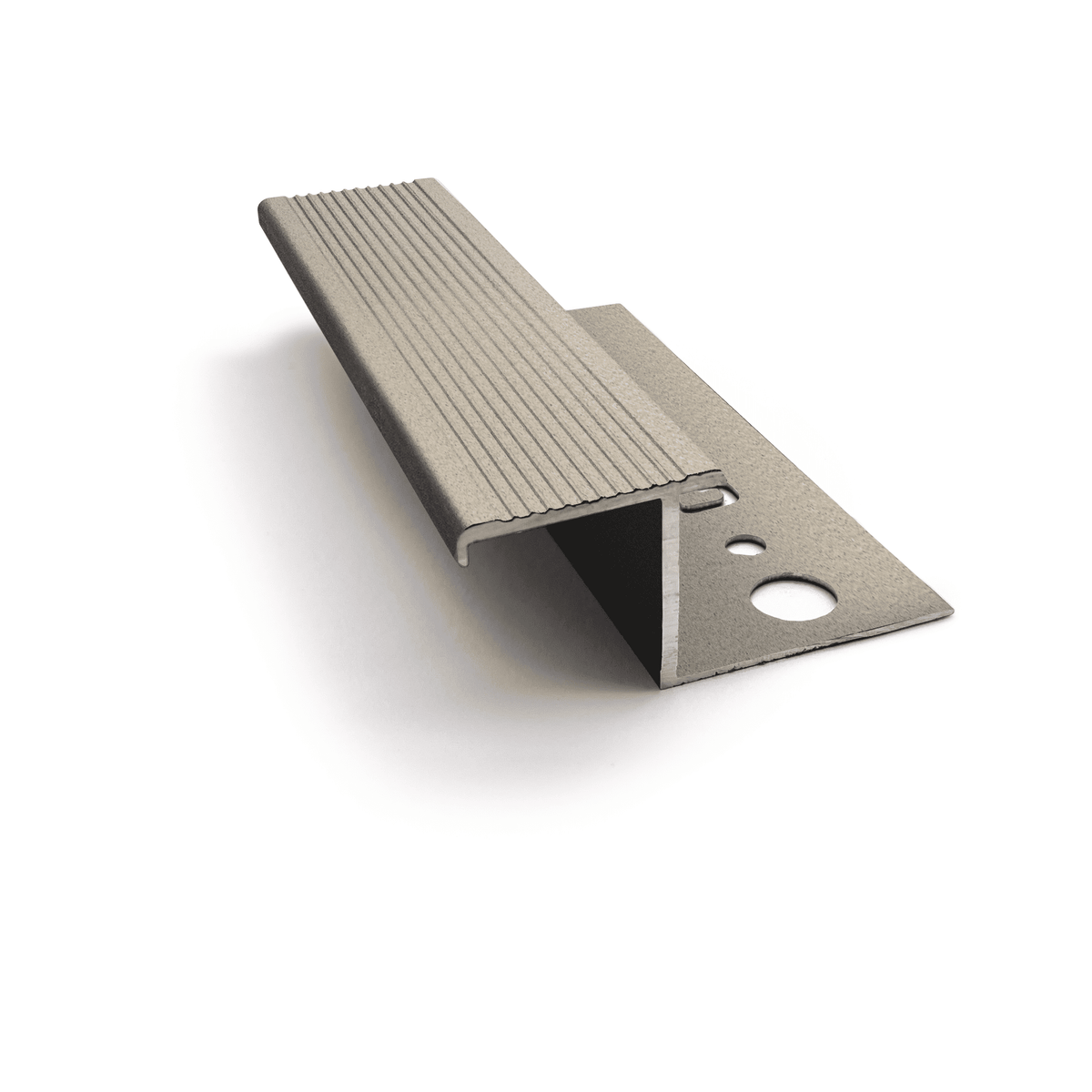

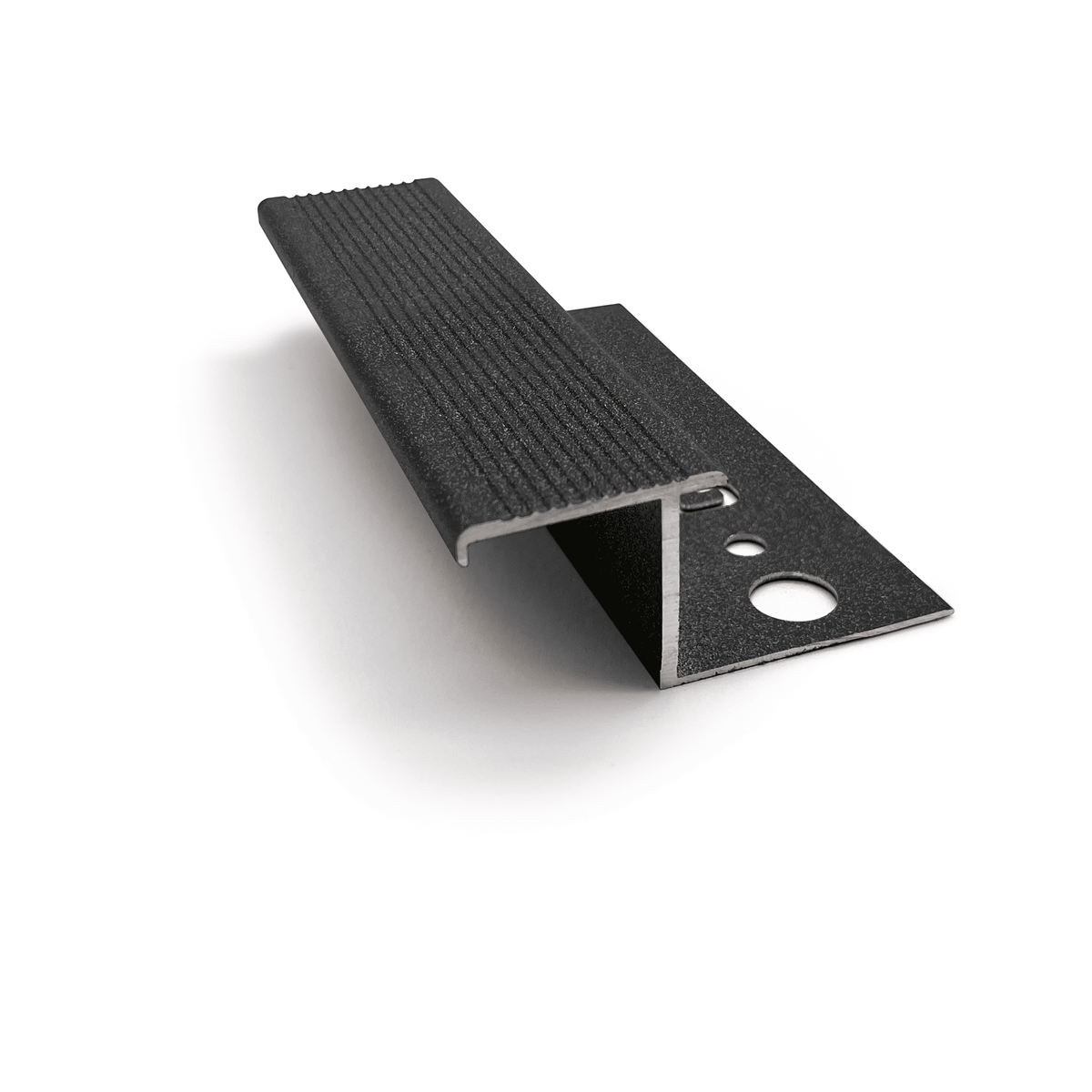

The Genesis NLT225 Outdoor Aluminium Tile-In Pro Step Edge Trim is a 22.5mm aluminium step edge for elevated outdoor spaces and steps. Its grooved 28mm tread gives a safe, secure edge to step on, while protecting the riser tile edge and preventing water ingress into the joint gap. Supplied in 2.8m lengths in six silver, black and stone-effect finishes.
Key benefits
- Grooved 28mm step tread for a safe, secure edge
- Protects the riser tile edge from chips and knocks
- Helps prevent water ingress into the joint gap
- 22.5mm depth suits 2cm outdoor tiles and paving
- Six finishes: Matt Black, Matt Silver and four stone effects
- Long 2.8m lengths reduce joins along wide steps
Applications
Used by professional tilers, landscapers, builders and DIY users to finish steps on balconies, terraces, patios and other elevated outdoor areas. Suitable for porcelain, ceramic and natural stone tiles and slabs.
Performance and features
- Profile: tile-in step edge with grooved tread (NLT225)
- Depth: 22.5mm, step tread 28mm
- Flange: 35mm, perforated for adhesive key
- Length: 2.8m
- Material: Aluminium AA 6063 T6 / UNS A96063, anodised to DIN 17611
Compatibility
Choose your finish from the Finish option. The profile is bedded into tile adhesive and works with ceramic, porcelain and natural stone tiles. Make sure it is fully embedded with no voids, as cement-based materials can corrode aluminium if left in contact for extended periods. Pair with Millcot flexible tile adhesives, grouts and tanking systems for a complete installation.
Supplied by Millcot, your trusted UK trade supplier of tiling, wetroom and building products.
Technical specifications
- Brand: Genesis
- Range: NLT225 Outdoor, Balcony & Landscaping Tile-In Step Edge
- Profile: Tile-in step edge, grooved tread
- Depth: 22.5mm
- Step tread width: 28mm
- Flange width: 35mm
- Length: 2.8m
- Material: Aluminium AA 6063 T6 / UNS A96063, anodised to DIN 17611
- Finish: See Finish option
- Fitting type: Bedded in tile adhesive, mechanical fix if required
- Use: Internal and external
- Pack quantity: 1 x 2.8m length
What's included
- 1 x 2.8m Genesis NLT225 Outdoor Aluminium Tile-In Pro Step Edge Trim in your chosen finish
Frequently asked questions
What is a tile-in step edge?
It is a profile bedded into the adhesive and tiled into the step, so the tile and trim finish together at the nose of the step.
What tile thickness is the NLT225 for?
It has a 22.5mm depth and is designed for use with 2cm tiles.
Is it slip resistant?
The grooved tread provides a safe, secure edge to step on.
How do I fix it?
Check the fit, install the floorcovering on the riser, then place the nosing on the step. Apply adhesive with a notched trowel, bed the profile in so adhesive comes through the flange holes, and spread adhesive over the flange before laying the tiles. A grout gap is not required, but if visible make sure grout is compressed firmly in the gap.
Can I cut it to length?
Yes, use a fine-tooth hacksaw or metal-cutting blade and file the end smooth.
How do I keep the finish looking good?
Remove adhesive and grout residue promptly and clean with a pH-neutral detergent or diluted colourless alcohol and a soft cloth. Avoid acidic cleaners and abrasive pads.
Download the Genesis NLT225 Outdoor Aluminium Tile-In Step Edge Technical Datasheet (PDF)
