Description

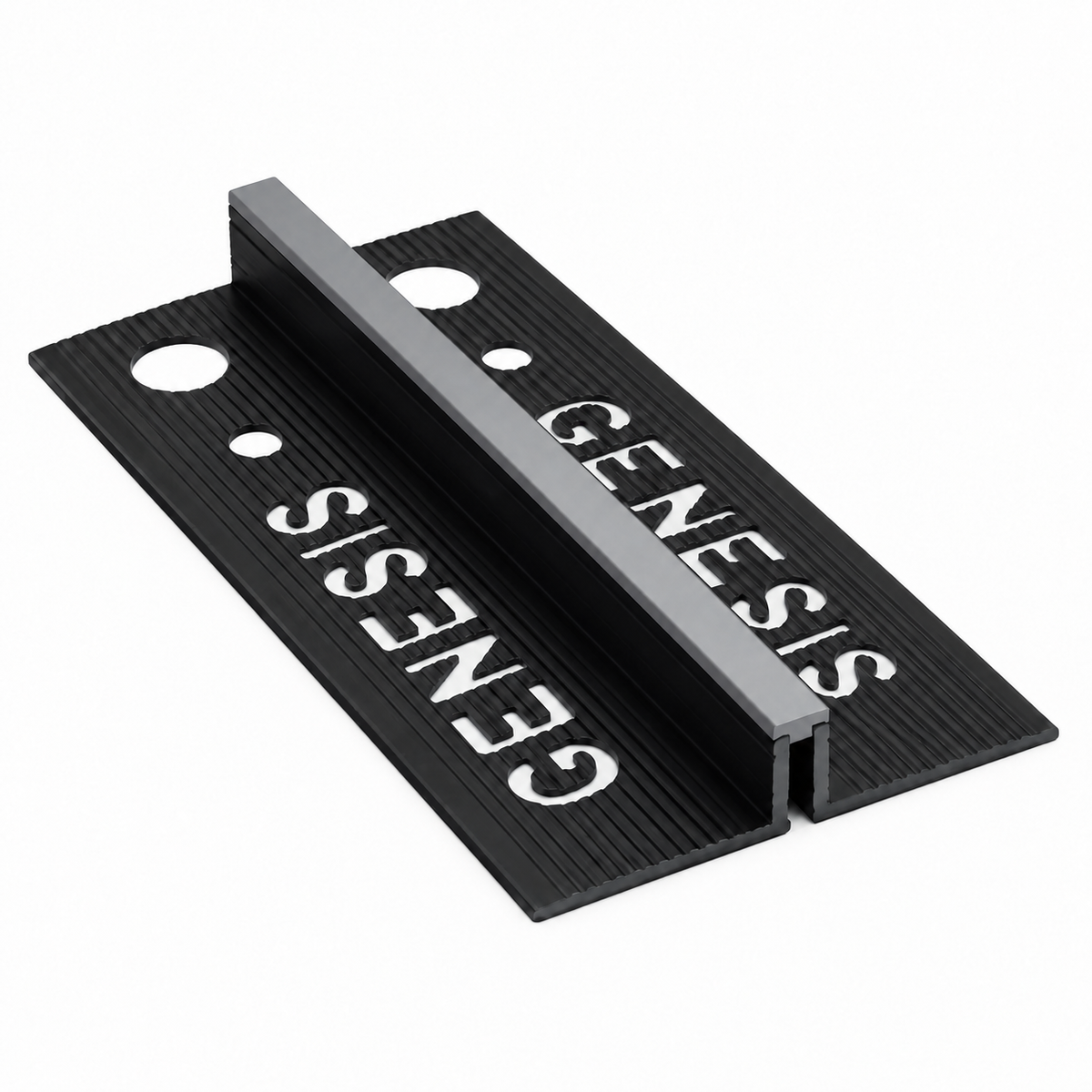

The Genesis MLT PVC Slim Movement and Perimeter Joint in Traffic Grey is a light-duty, 5mm-wide movement joint that lets tiled floors expand and contract without cracking or debonding. Supplied in 2.5m lengths and in 10mm and 12.5mm depths to match your tile thickness, it's designed for foot-traffic areas in homes, shops and offices, and its slim profile keeps the joint neat and unobtrusive. The traffic grey finish blends well with grey and stone-effect tiles and grout.
Key benefits
- Slim 5mm movement gap for a discreet finish on tiled floors
- Two depths (10mm and 12.5mm) to suit most ceramic and porcelain tiles
- Perforated 56mm base flange keys securely into tile adhesive
- Flexible PVC absorbs lateral expansion and compression
- Suitable for internal and external use, including facades and balconies
- Easy to cut to length on site
Applications
Used by professional tilers, builders, bathroom fitters and DIY users wherever a tiled floor needs a movement joint, such as above changes in substrate, over existing movement joints in the screed, and across large tiled areas. Also suitable as a perimeter joint to create a cushion between the tiling and the wall. Designed for light foot traffic on ceramic and porcelain floor tiles, both indoors and outdoors.
Performance and features
- Profile: MLT slim movement joint, 5mm wide
- Length: 2.5m
- Depths: 10mm and 12.5mm
- Base flange: 56mm wide, 1mm thick, perforated for adhesive key
- Colour: Traffic Grey
- Material: flexible PVC
- Duty: light duty (foot traffic)
Compatibility
Choose the depth that matches your tile thickness. Fixes into standard tile adhesive and works with ceramic and porcelain floor tiles. Movement joints should be installed directly above any change in substrate or movement joint in the substrate, and in line with BS 5385 guidance on movement joint positions. Pair with Millcot tile adhesives, grouts and levelling compounds for a complete installation.
Supplied by Millcot, your trusted UK trade supplier of tiling, wetroom and building products.
Technical specifications
- Brand: Genesis
- Range: MLT PVC Slim Movement and Perimeter Joint
- Joint width: 5mm
- Depths available: 10mm, 12.5mm

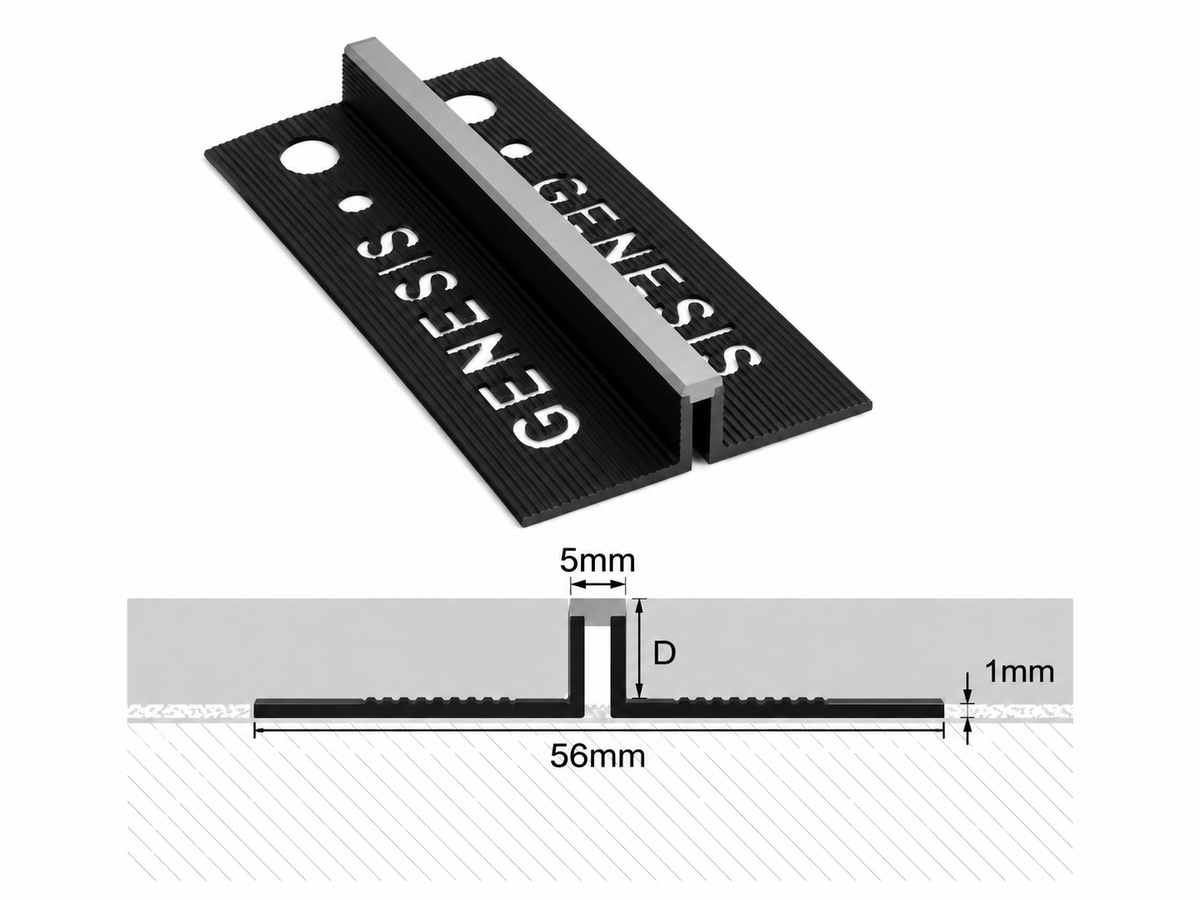

- Base flange: 56mm wide x 1mm thick, perforated
- Material: PVC
- Colour: Traffic Grey
- Length: 2.5m
- Fitting type: Bedded in tile adhesive
- Use: Internal and external, light duty
- Vicat softening point: 93°C (ISO 306)
- Elongation at failure: 131% (ASTM D638)
- Pack quantity: 1 x 2.5m length
What's included
- 1 x 2.5m Genesis MLT PVC Slim Movement and Perimeter Joint in Traffic Grey in your chosen depth
Frequently asked questions
Which depth do I need?
Pick the depth that matches the thickness of your tile, e.g. the 10mm joint for a 10mm tile. Best practice is for the profile to sit about 1mm below the tile surface.
How do I fit it?
Spread adhesive with a notched trowel, bed the perforated flange firmly so the adhesive pushes through the holes, then spread adhesive over the anchoring legs and bed the tiles up to the joint. Leave a grout joint between the tile and the profile.
Where should movement joints go?
Directly above any change in substrate or movement joint in the substrate, and across large tiled areas. Industry guidance suggests no more than 10m in any direction, and in practice 5-8m.
Can I use it outside?
Yes, the profile is suitable for exterior use such as facades and balconies, within its light-duty rating.
Is it suitable for heavy traffic?
No. MLT is a light-duty joint for foot traffic. Check suitability for forklift or vehicle traffic before specifying.
How do I clean it?
Vacuum or brush off dirt, then wipe with a soapless neutral detergent in warm water on a damp cloth and rinse. Avoid polishes and solvent cleaners.
Download the Genesis MLT Movement and Perimeter Joint Technical Datasheet (PDF)
