Description

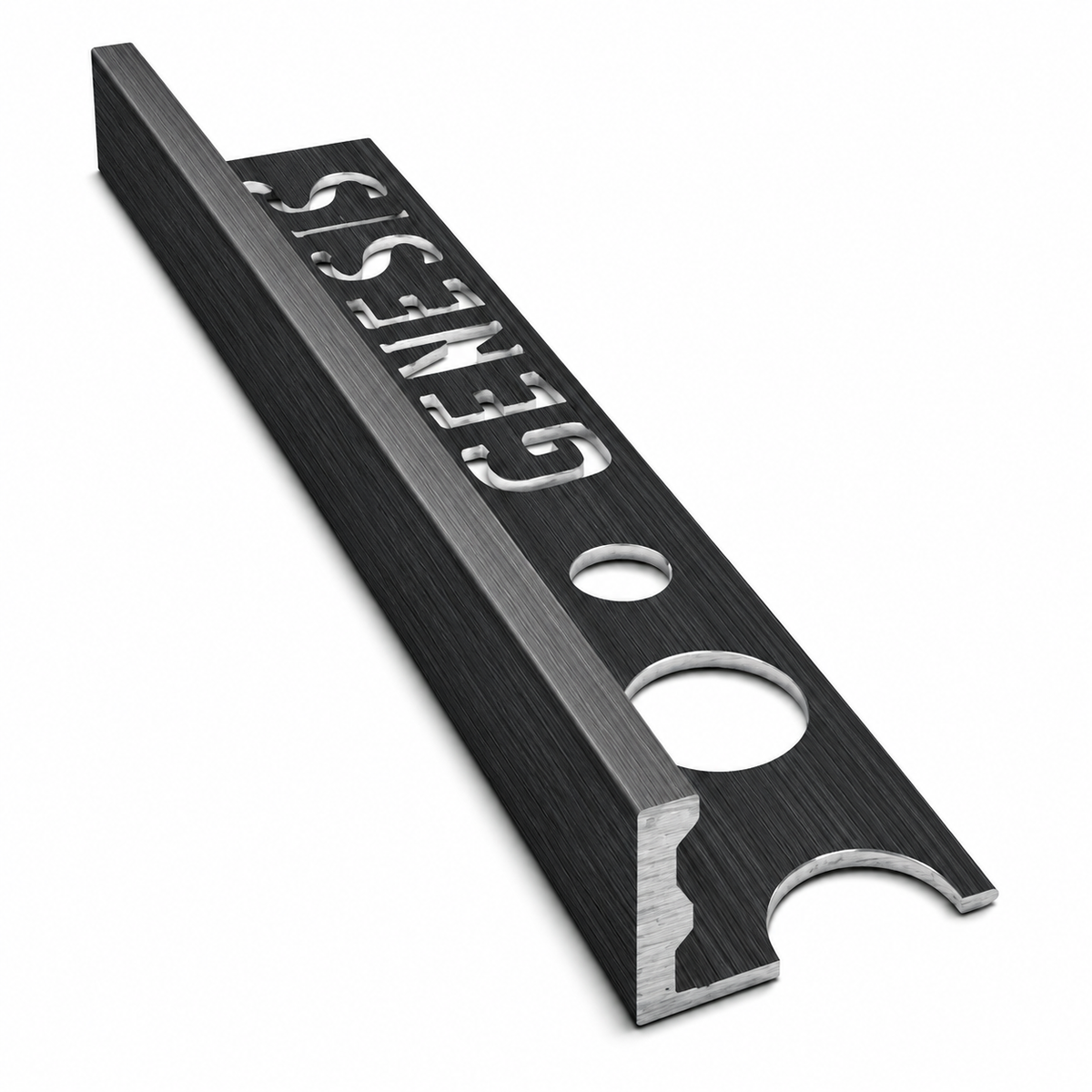

The Genesis ESA Aluminium Straight Edge Tile Trim in Brushed Gunmetal is an L-shaped extruded aluminium profile that protects exposed tile edges and gives a sharp, modern finish. Supplied in 2.5m lengths in a 10mm depth, it suits 10mm tiles on walls and floors in bathrooms, wetrooms, kitchens and living spaces. The dark gunmetal finish pairs well with grey, charcoal and stone-effect tiles.
Key benefits
- Strong extruded aluminium protects tile edges from chips and knocks
- Slim, crisp straight-edge profile with a 3mm visible face
- Perforated anchoring leg locks securely into tile adhesive
- Durable anodised finish in a contemporary gunmetal tone
- Suits rectified and square-cut tiles as well as standard ceramic and porcelain
Applications
Used by professional tilers, bathroom fitters, builders and DIY users to finish external tile corners, exposed edges and tile terminations on walls and floors. Ideal for bathrooms, wetrooms, kitchens, hallways and commercial interiors.
Performance and features
- Profile: L-shaped straight edge (ESA range)
- Depth: 10mm
- Length: 2.5m
- Material: Aluminium AA 6063 T6, anodised
- Finish: Brushed Gunmetal
- Flange: 21mm wide with perforated anchoring leg
Compatibility
Choose a depth that matches your tile thickness. Fixes into standard tile adhesive and works with ceramic, porcelain and natural stone tiles. Aluminium suitability should be checked where chemical or mechanical stresses are expected. Pair with Millcot tile adhesives, grouts and tanking systems for a complete installation.
Supplied by Millcot, your trusted UK trade supplier of tiling, wetroom and building products.
Technical specifications
- Brand: Genesis
- Range: ESA Aluminium Straight Edge
- Product code: ESA100.77

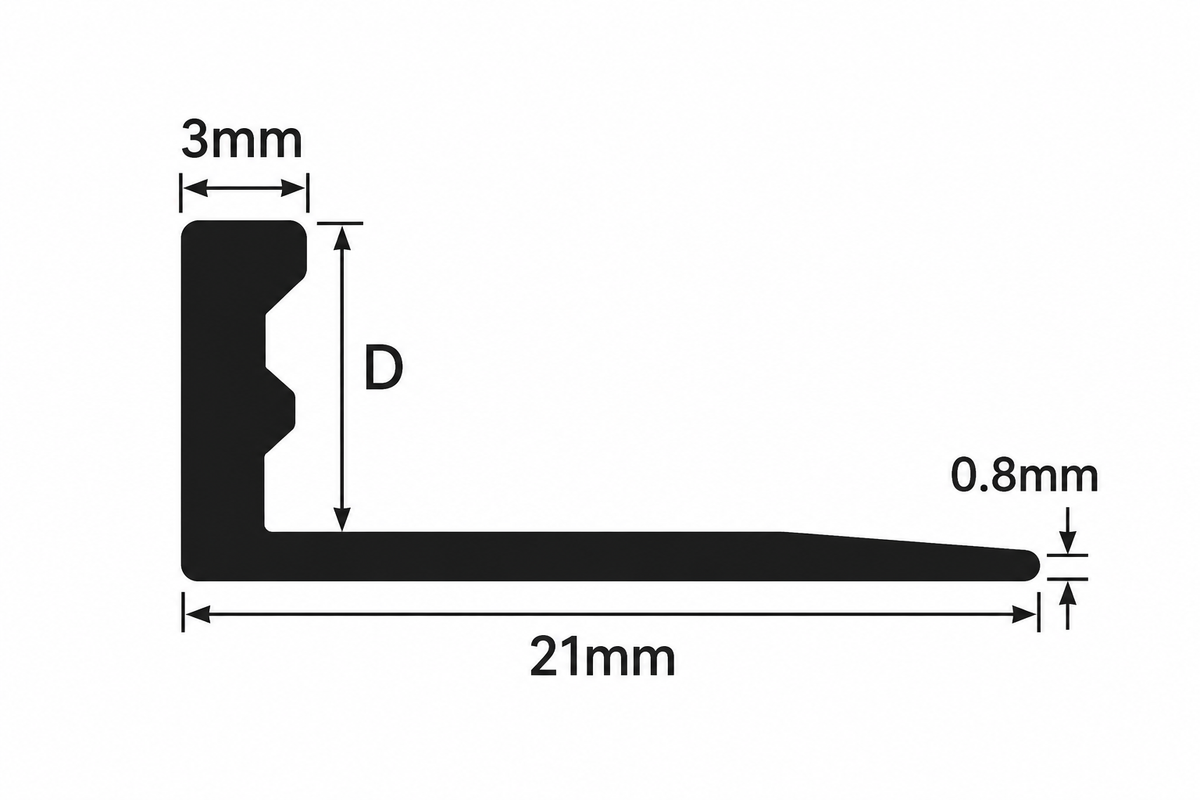

- Profile: L-shaped straight edge
- Depth: 10mm
- Length: 2.5m
- Visible face width: 3mm
- Flange width: 21mm
- Flange thickness: 0.8mm
- Material: Aluminium AA 6063 T6 / UNS A96063, anodised to DIN 17611
- Finish: Brushed Gunmetal
- Fitting type: Bedded in tile adhesive
- Use: Internal
- Pack quantity: 1 x 2.5m length
What's included
- 1 x 2.5m Genesis ESA Aluminium Straight Edge Tile Trim, 10mm, Brushed Gunmetal
Frequently asked questions
Which depth do I need?
Pick the depth that matches your tile thickness. This listing is the 10mm size for 10mm tiles.
How do I fix it?
Trowel adhesive over the tile perimeter, press the perforated anchoring leg into the adhesive and align it, then trowel more adhesive over the leg for full coverage. Embed the tiles so the profile sits level with, or up to about 1mm below, the tile surface, then fill the joint with grout.
Can I cut it to length?
Yes, use a fine-tooth hacksaw or a metal-cutting blade and file the end smooth.
How do I keep the finish looking good?
Remove adhesive and grout residue promptly and clean with a pH-neutral detergent and a soft cloth. Avoid acidic cleaners and abrasive pads.
Can it be used in wet areas?
Yes, it suits internal bathrooms and wetrooms. Make sure the profile is fully embedded with no voids, as cement-based materials can corrode aluminium if left in contact for long periods.
Can I use it outdoors?
This anodised finish is intended for internal use. Genesis recommend powder-coated finishes for external installations.
Download the Genesis ESA Aluminium Straight Edge Technical Datasheet (PDF)
