Description

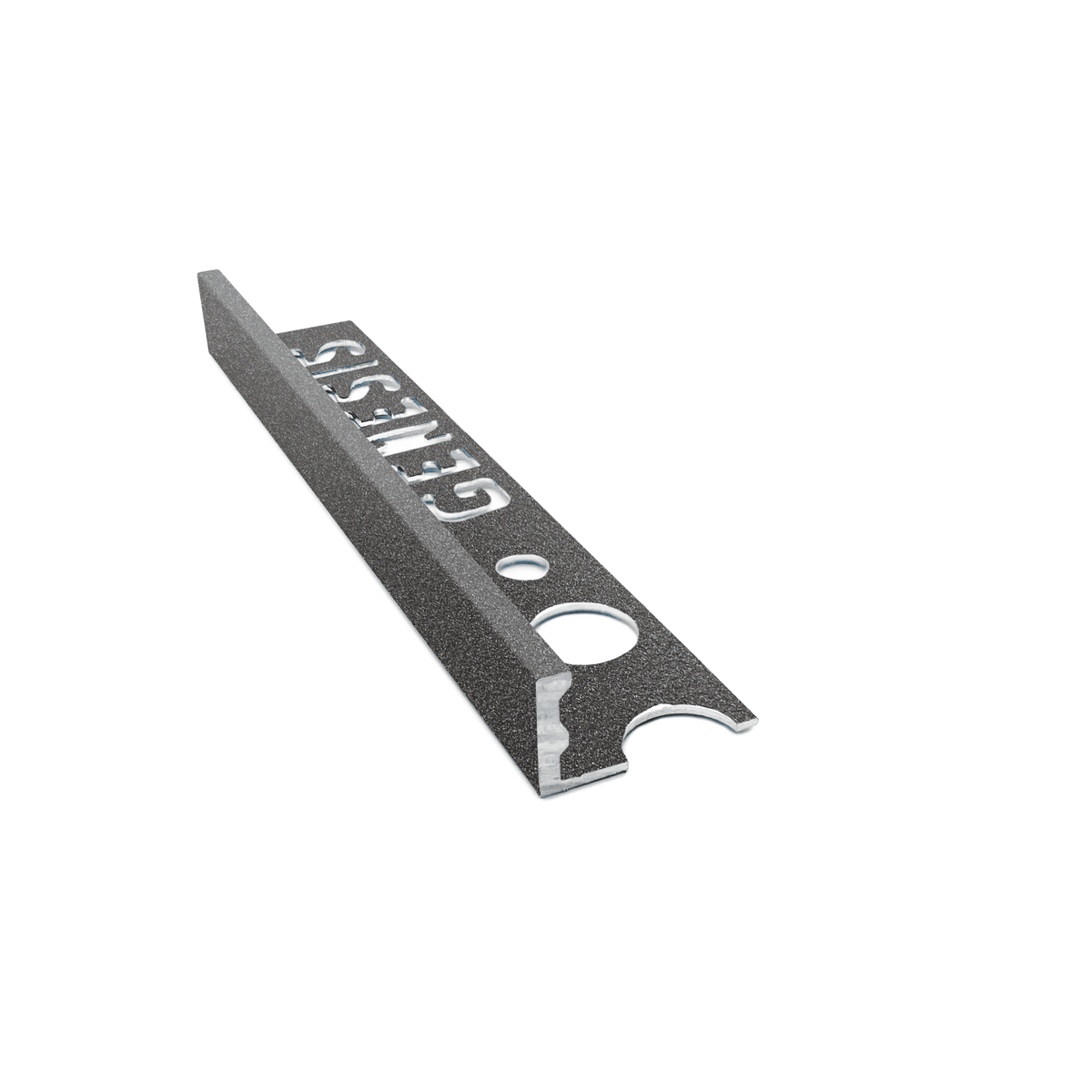

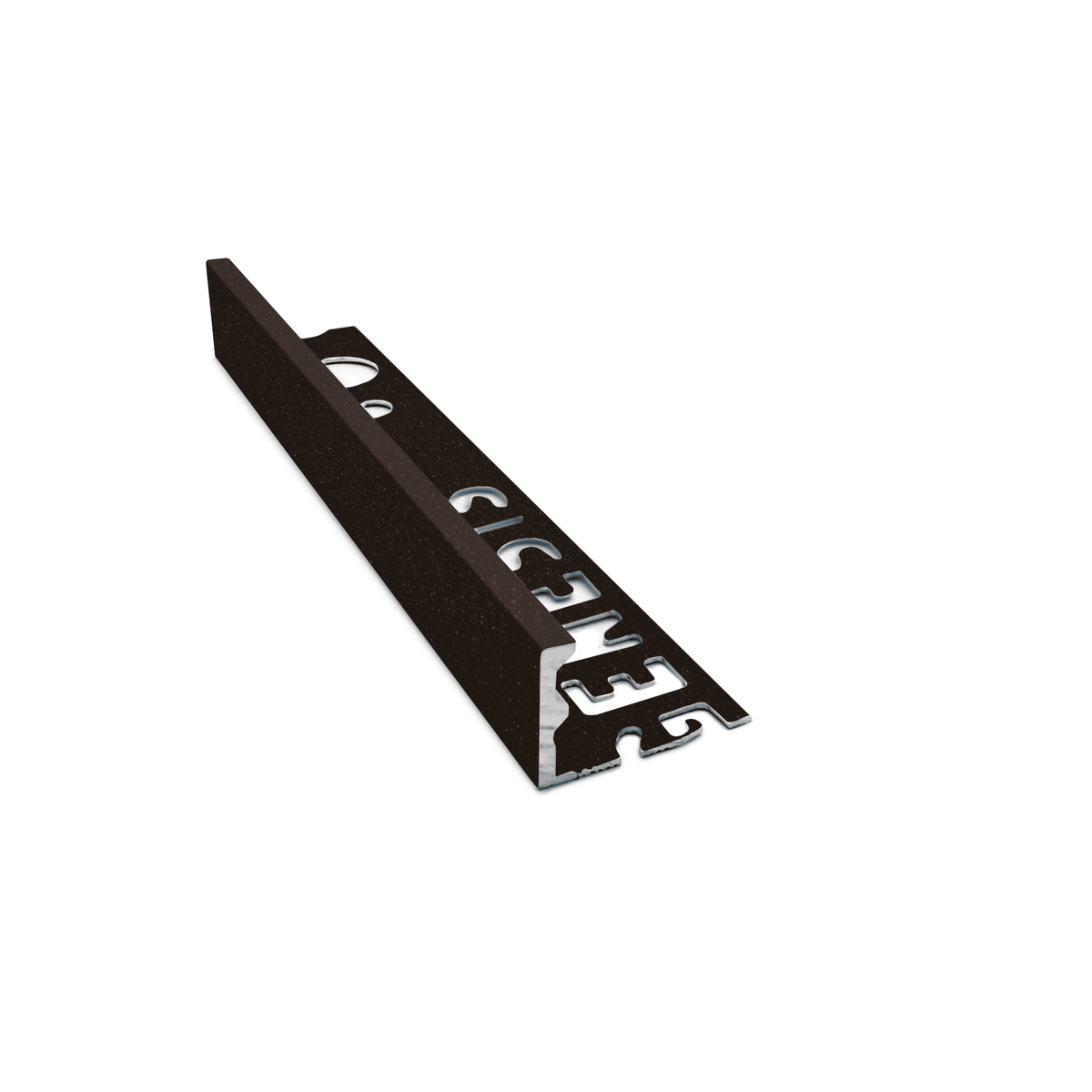

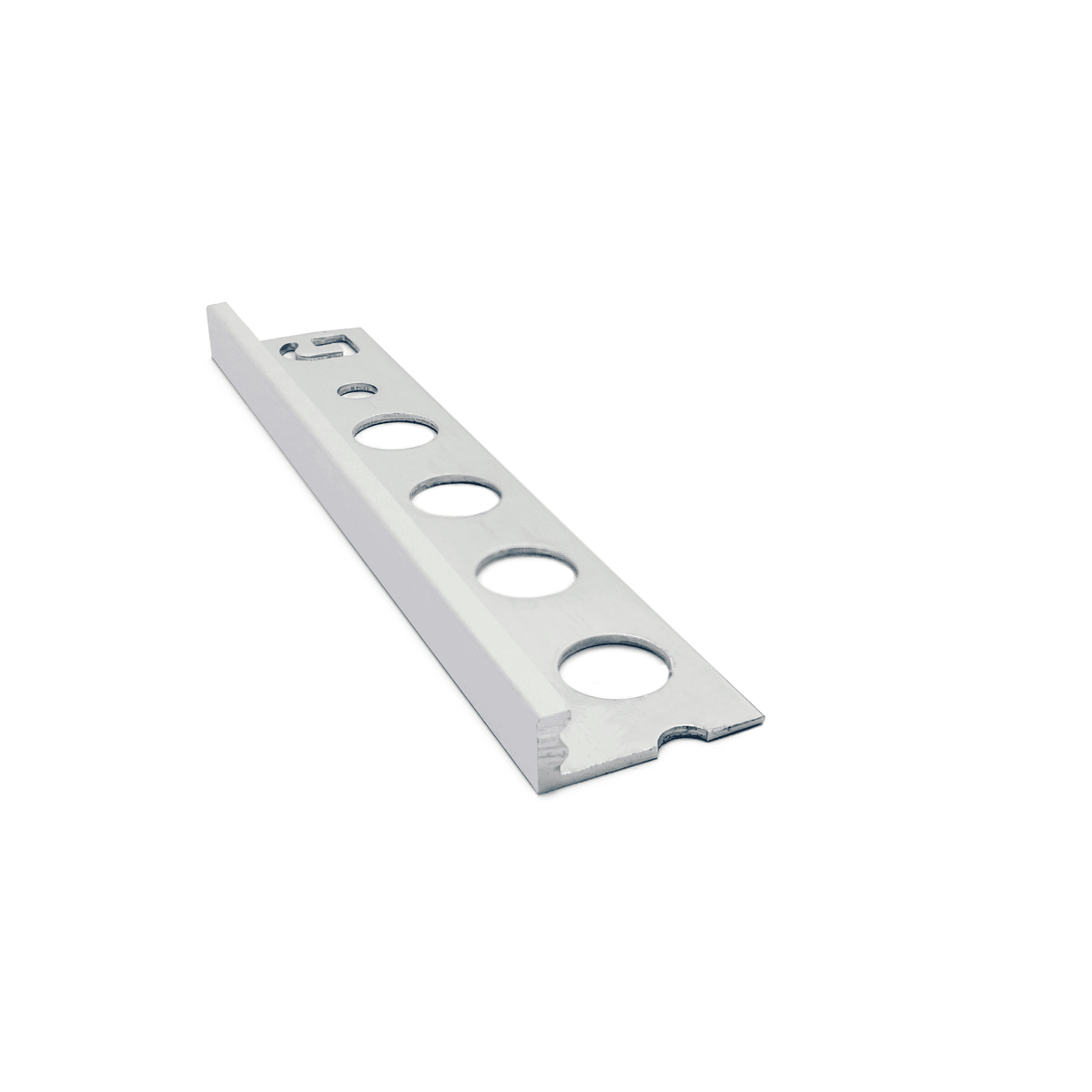

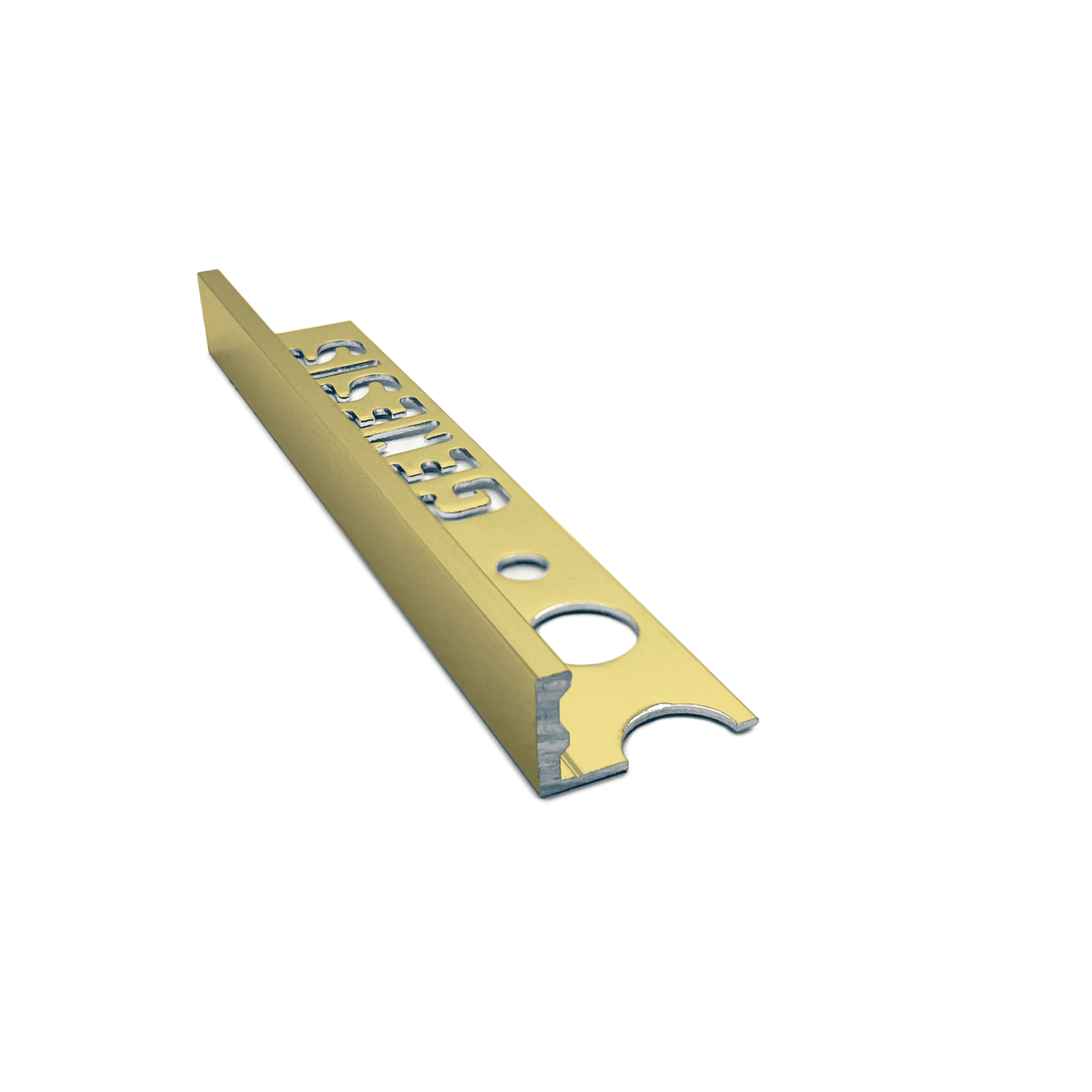

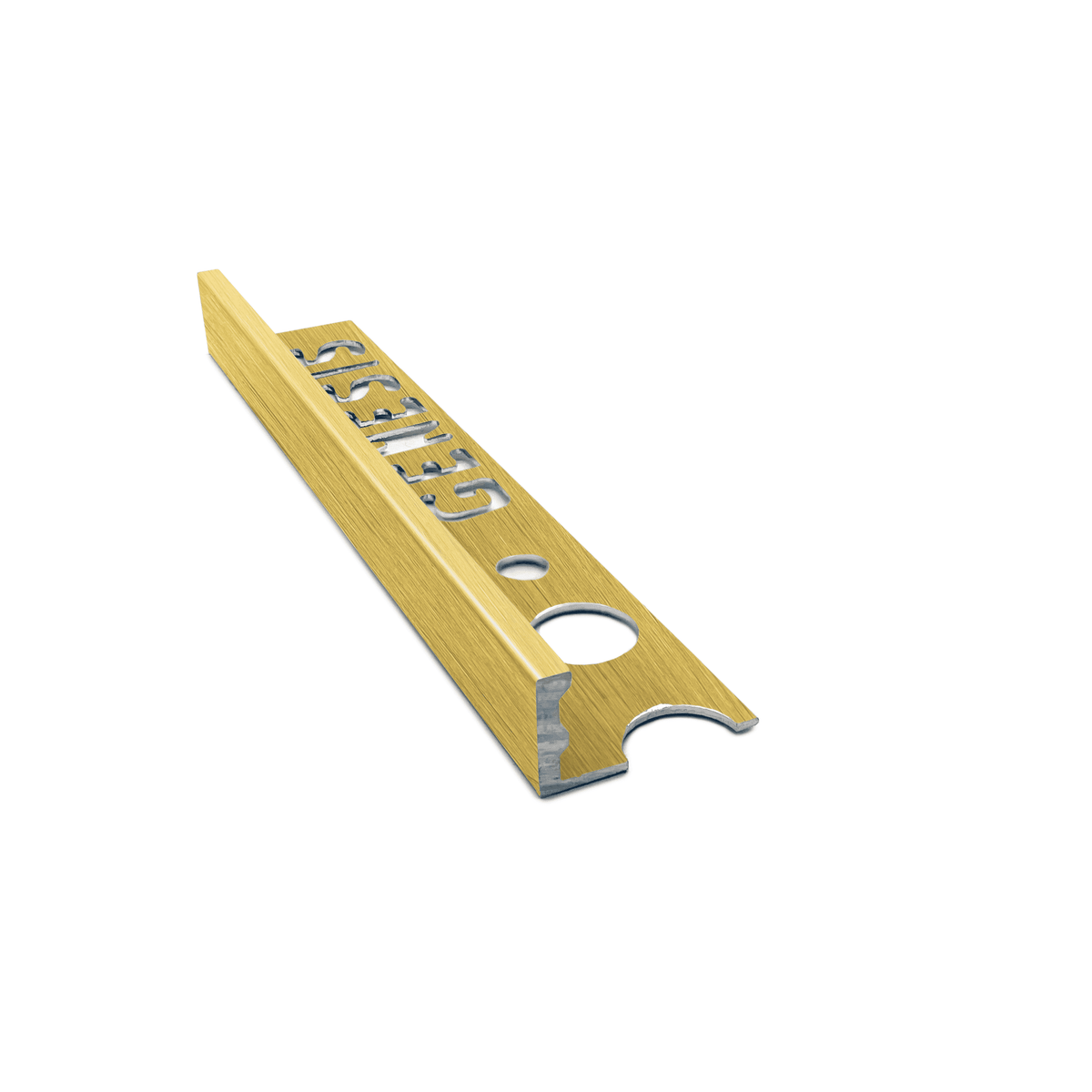

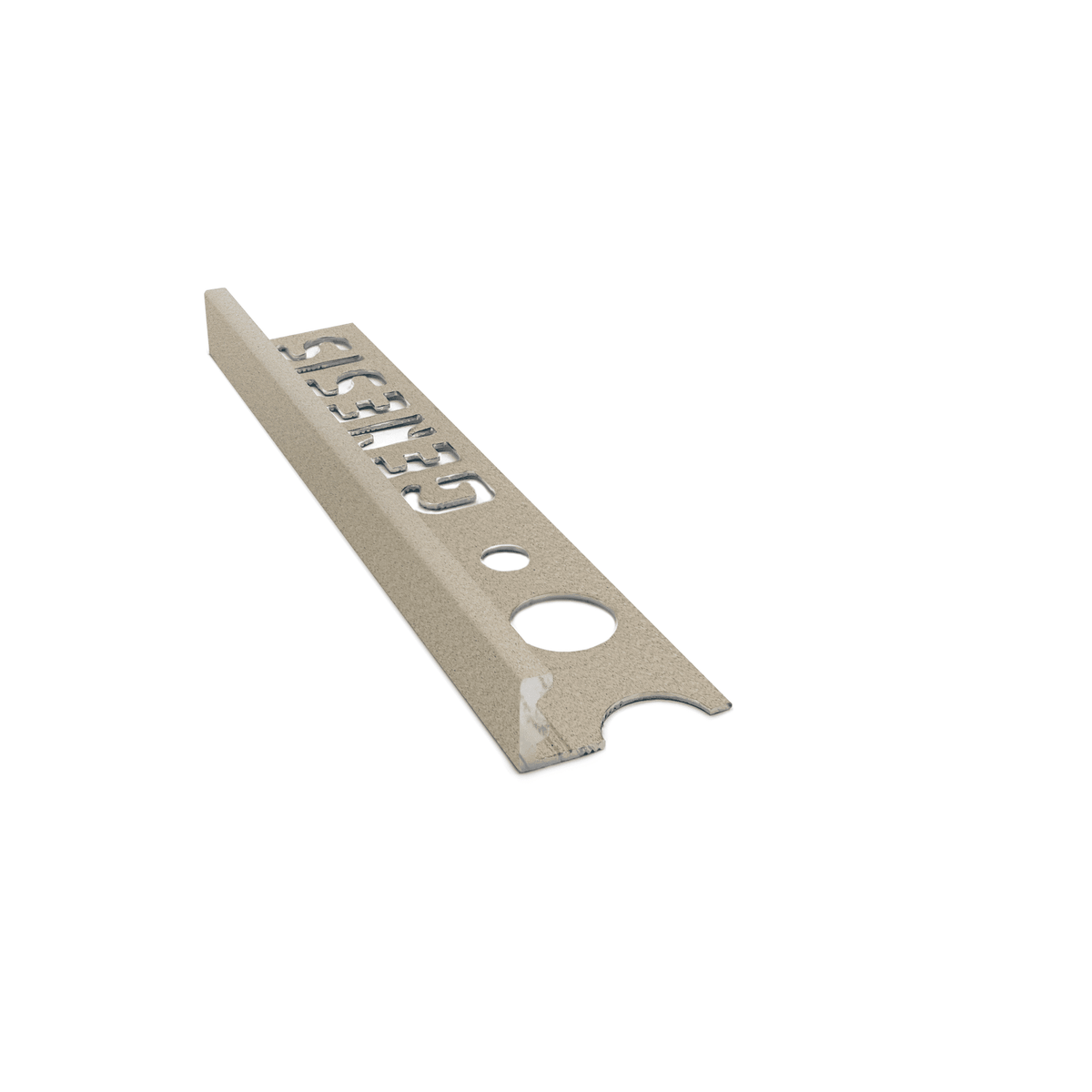

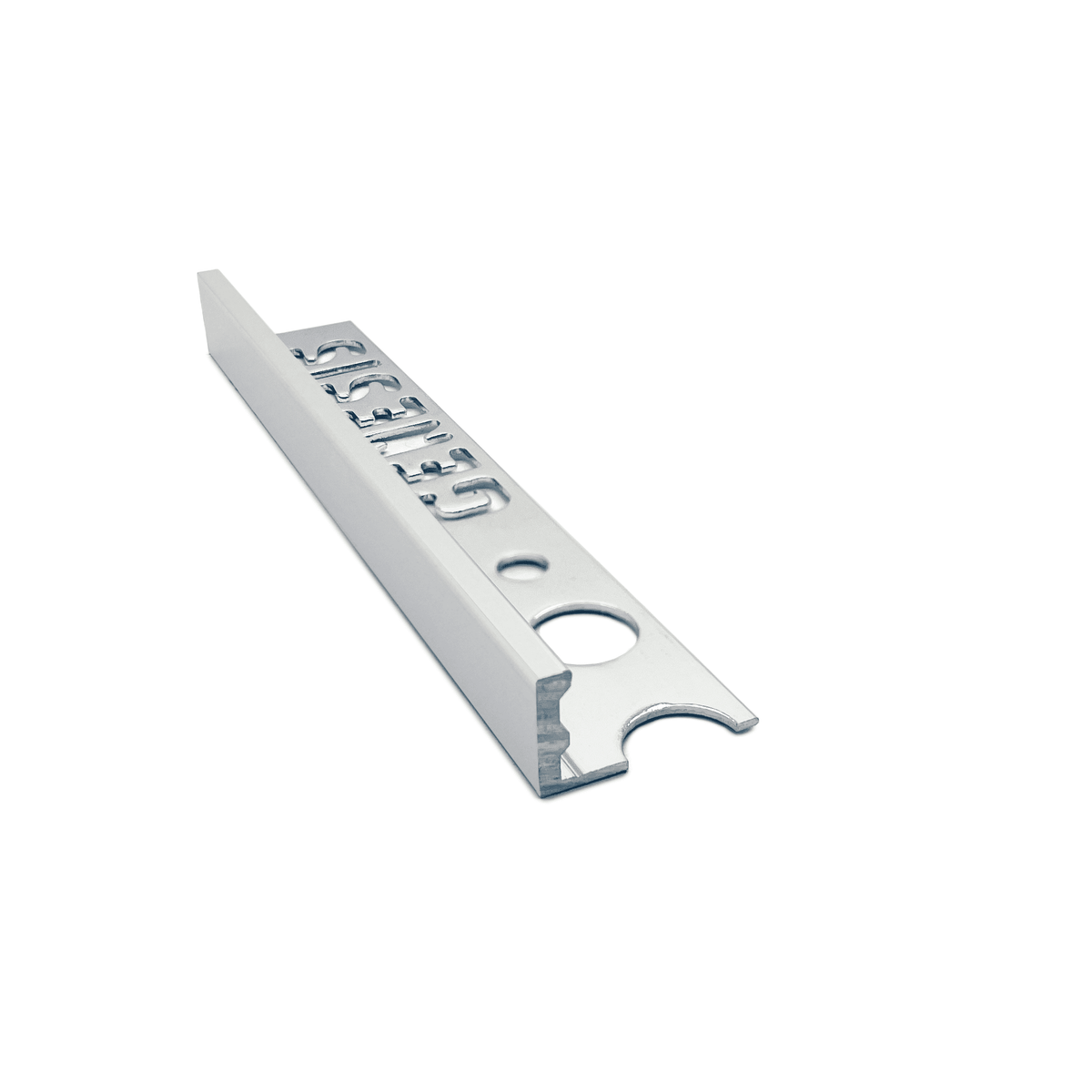

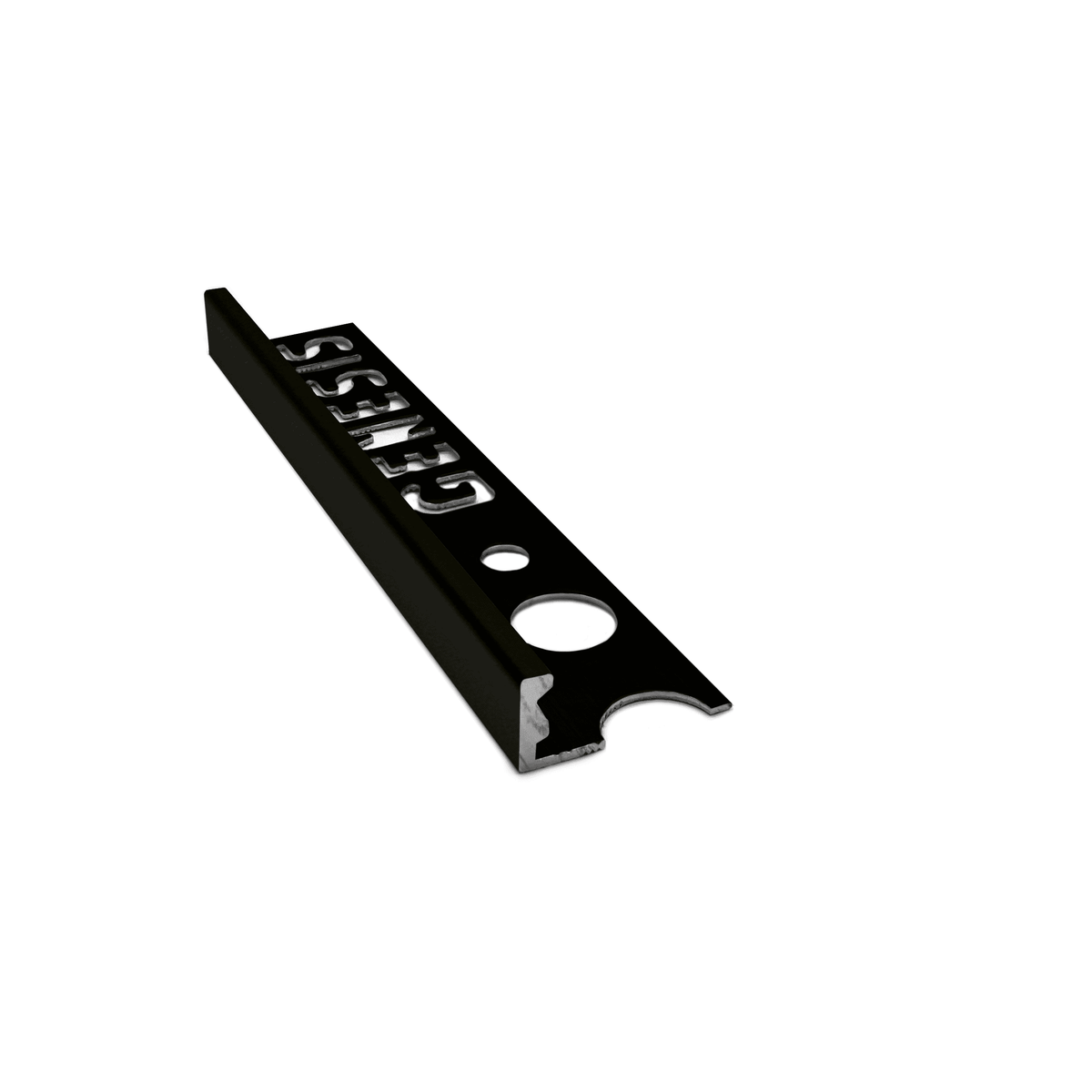

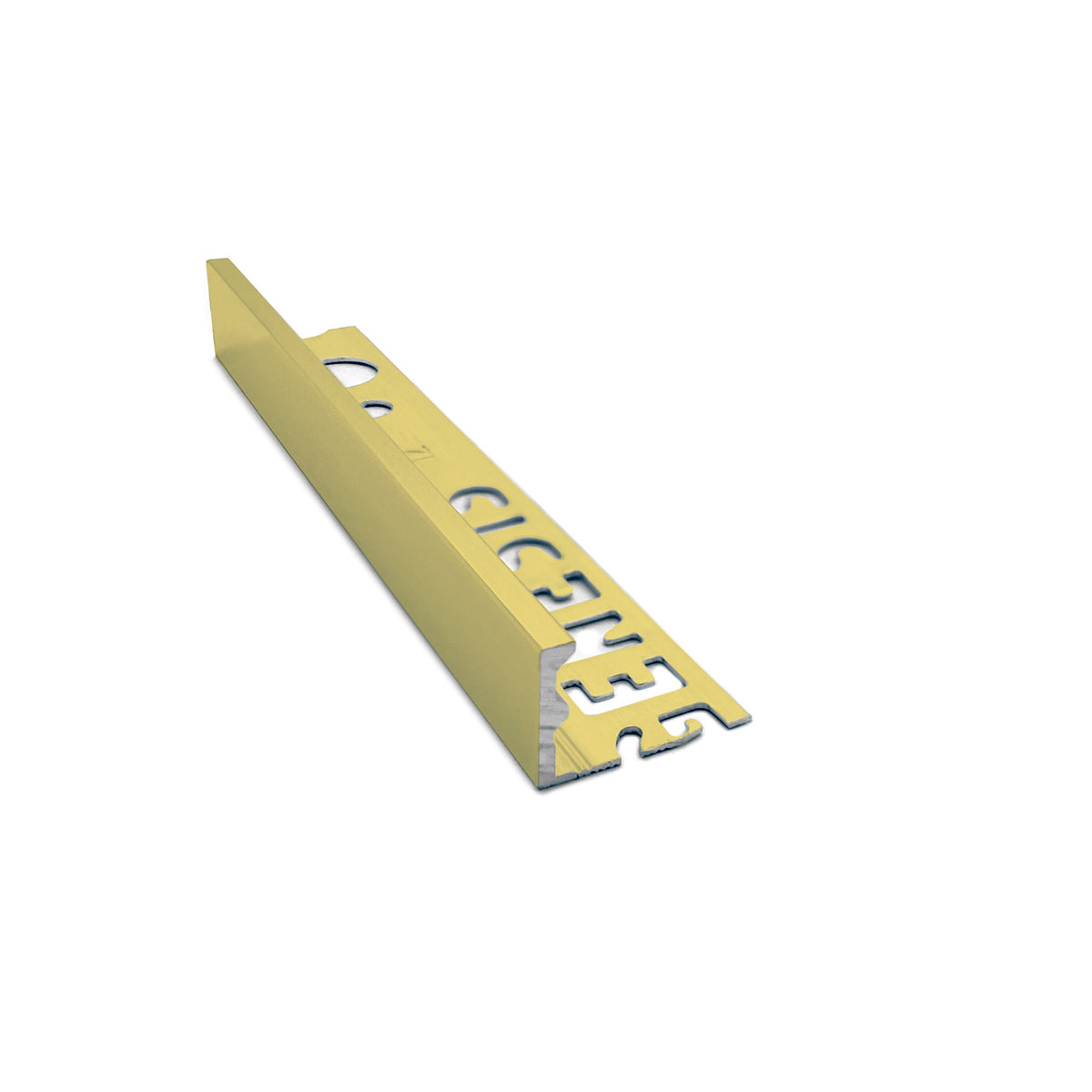

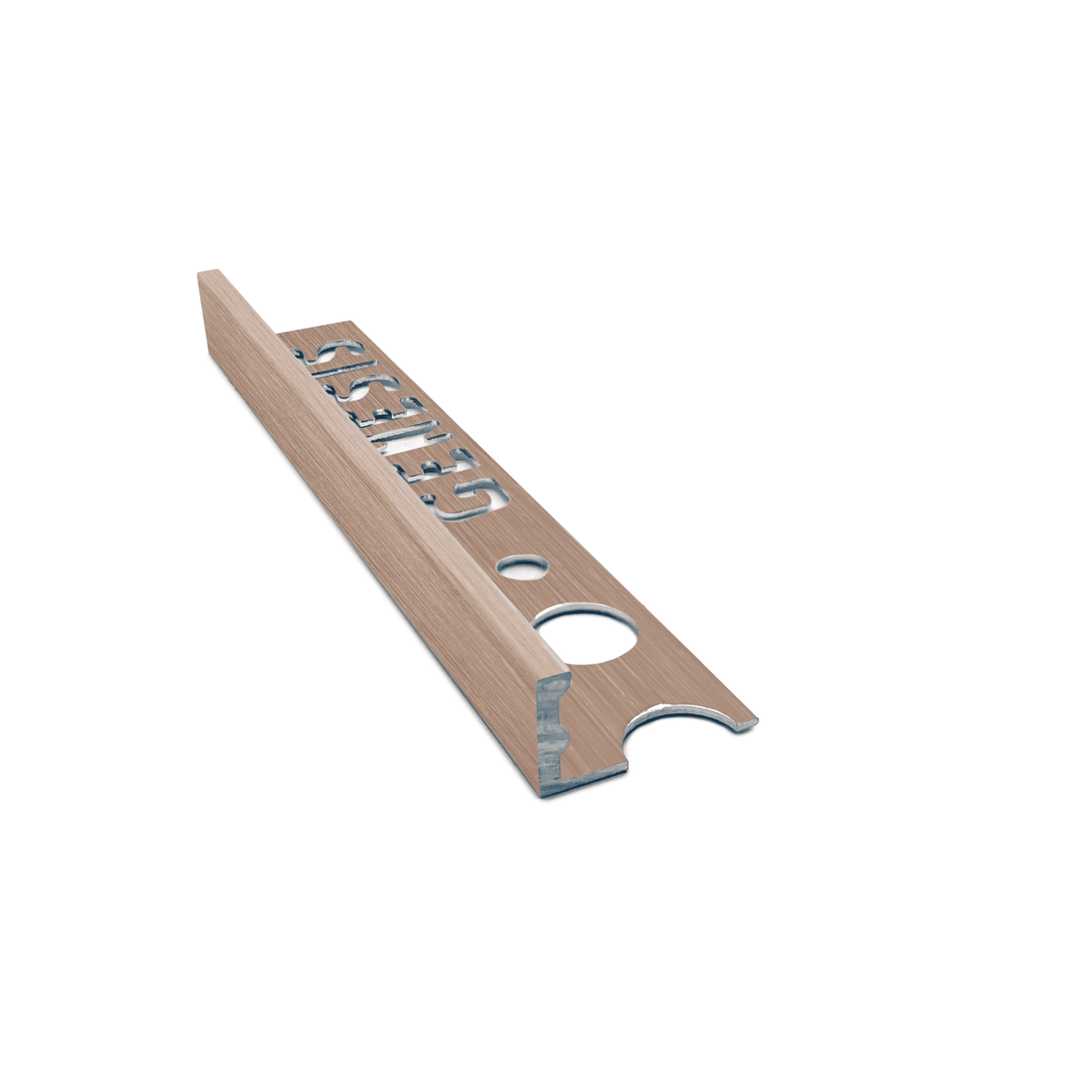

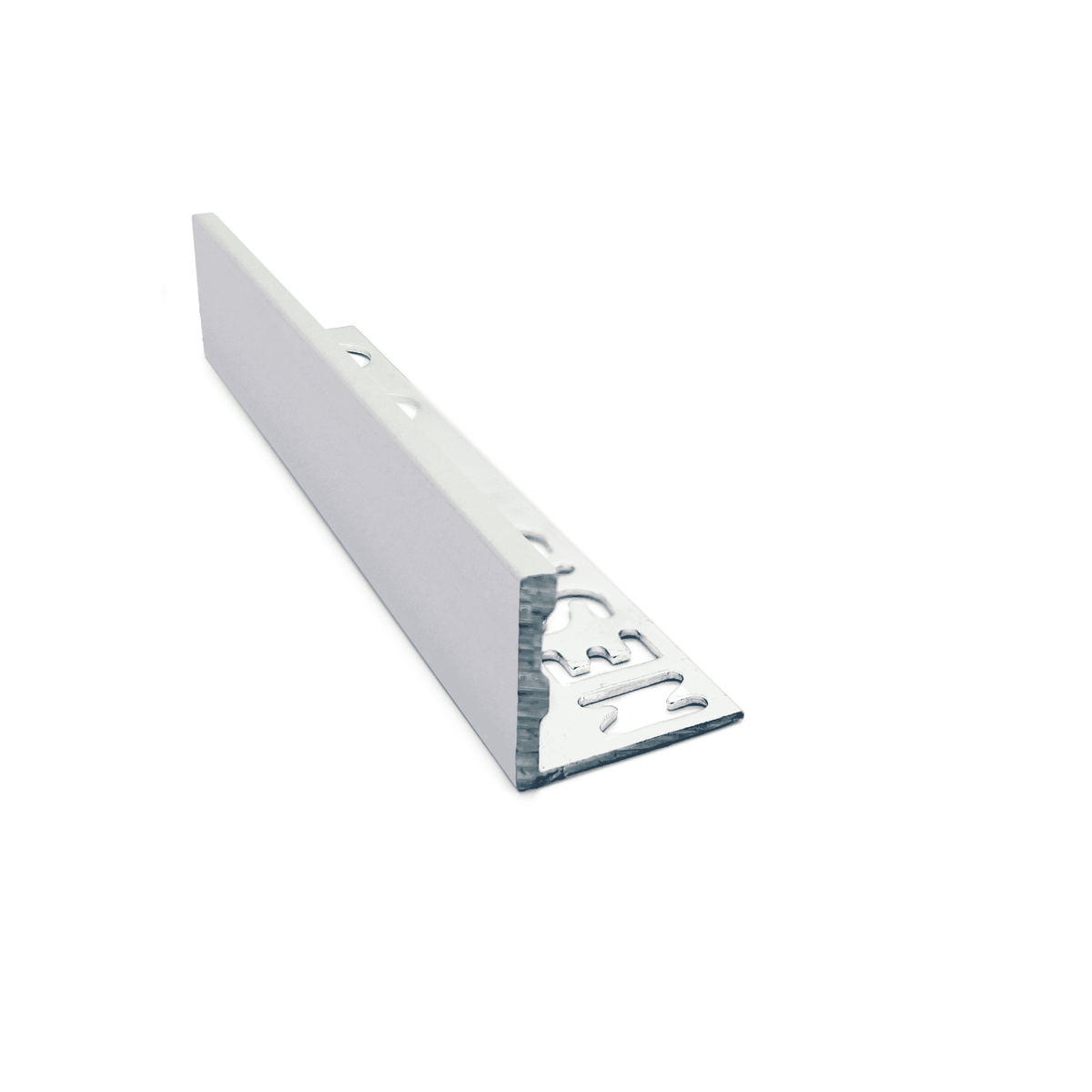

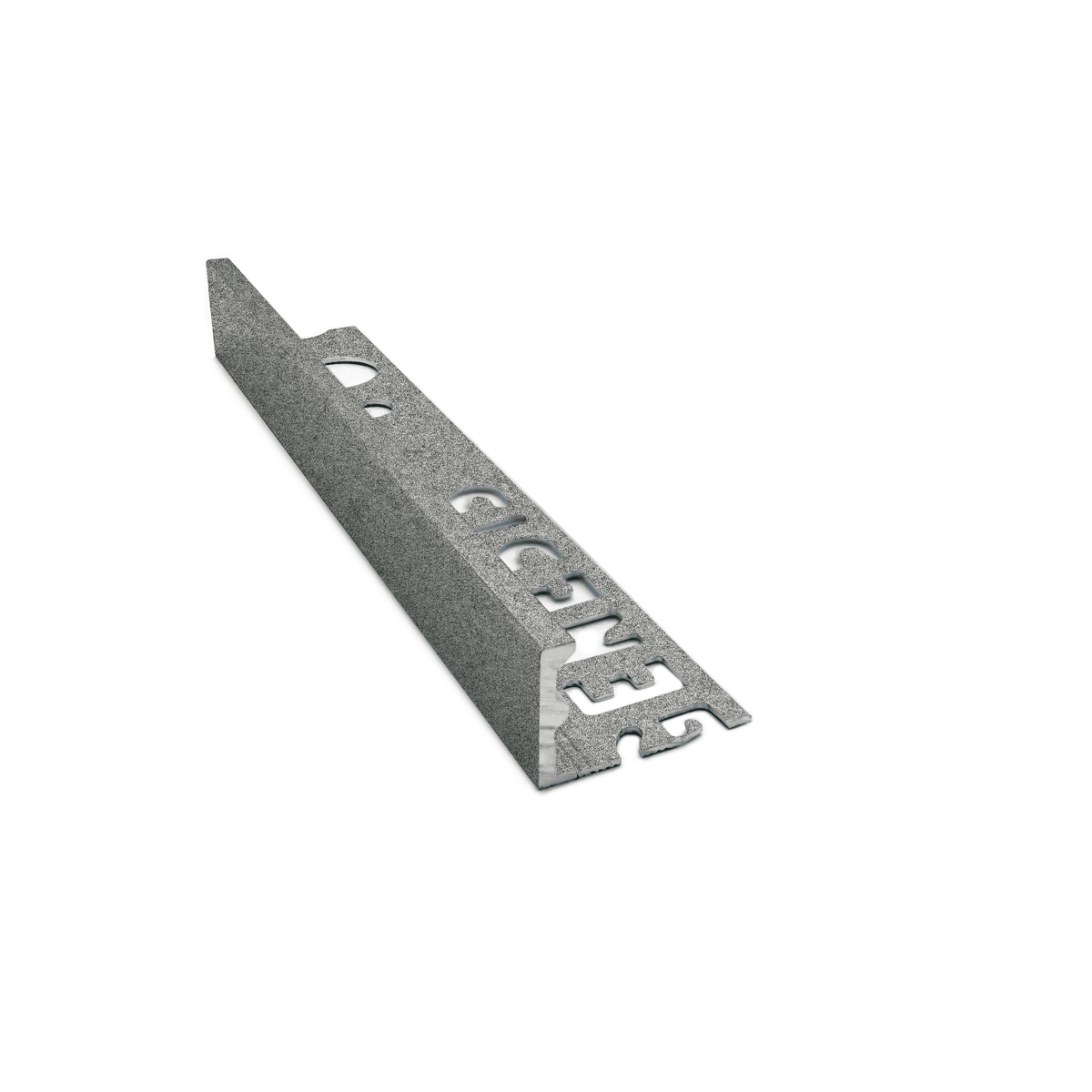

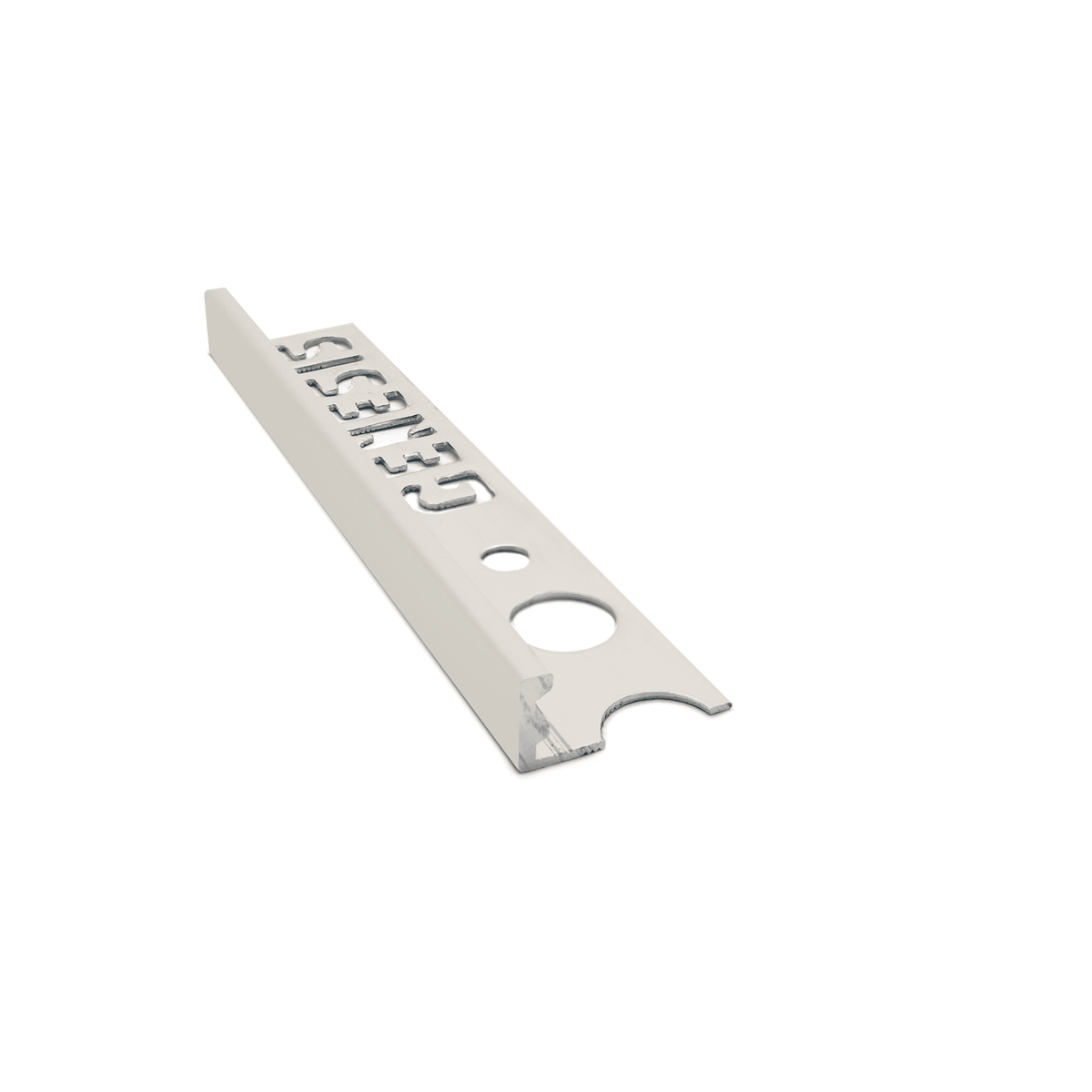

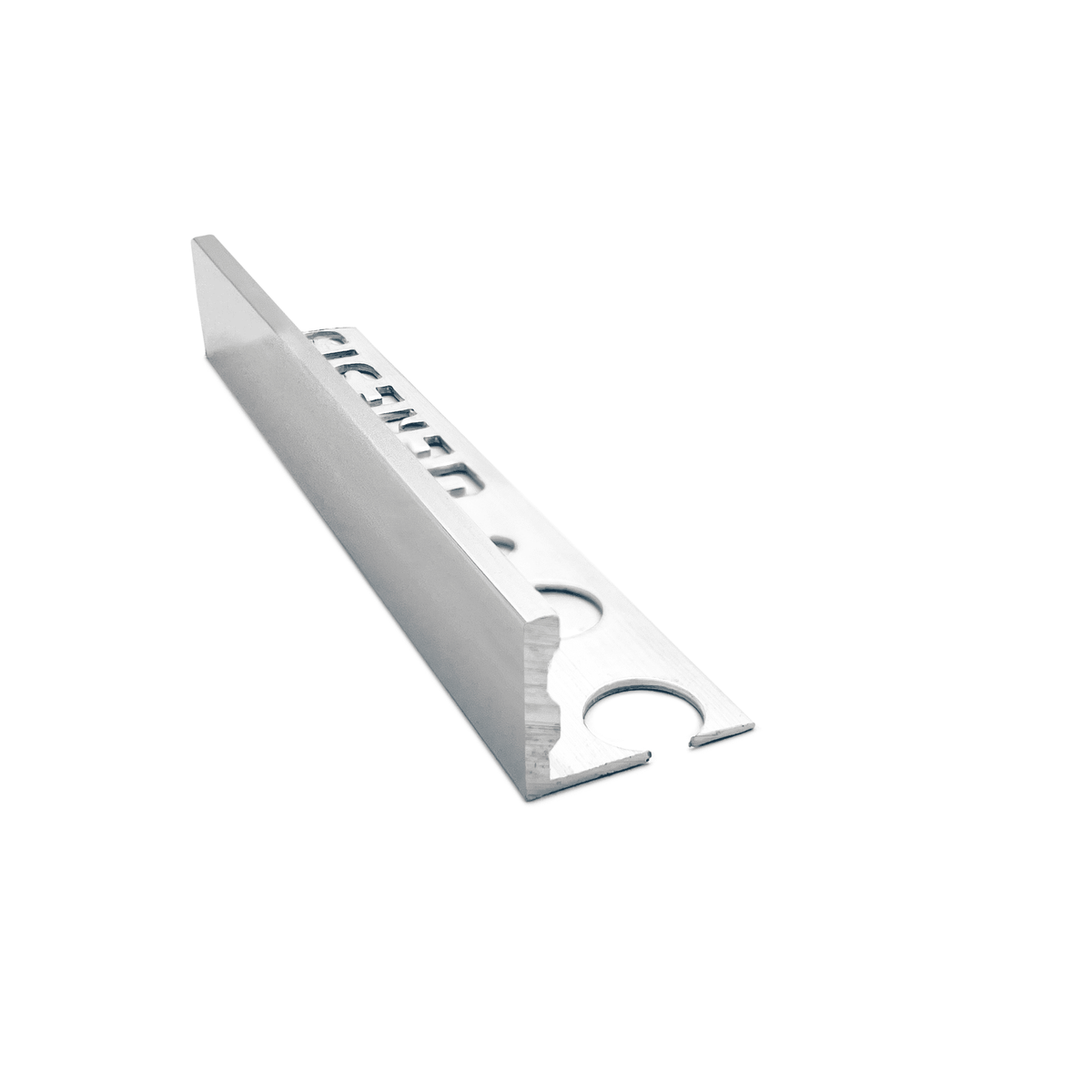

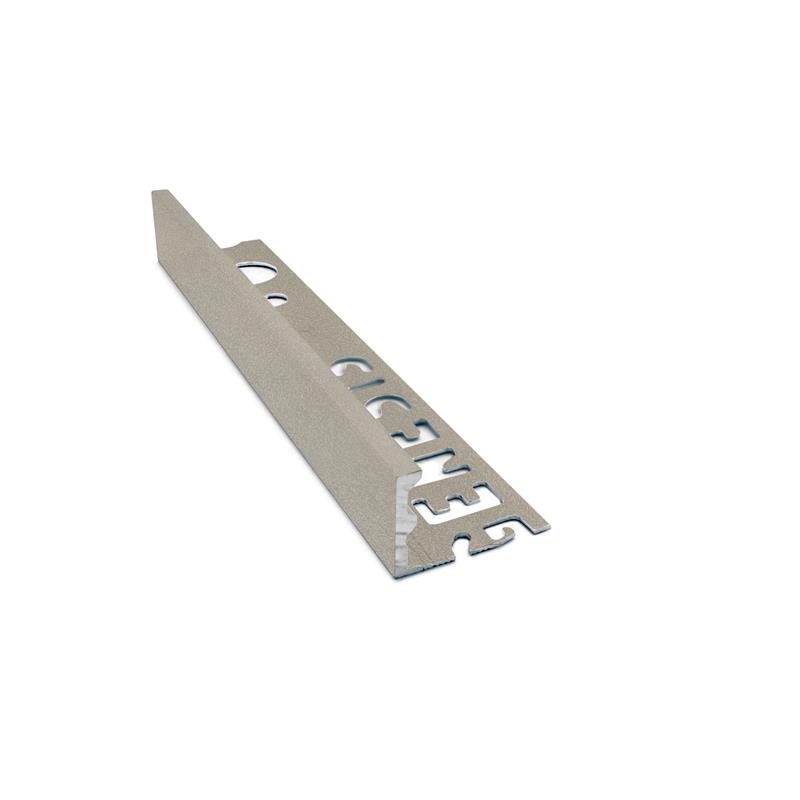

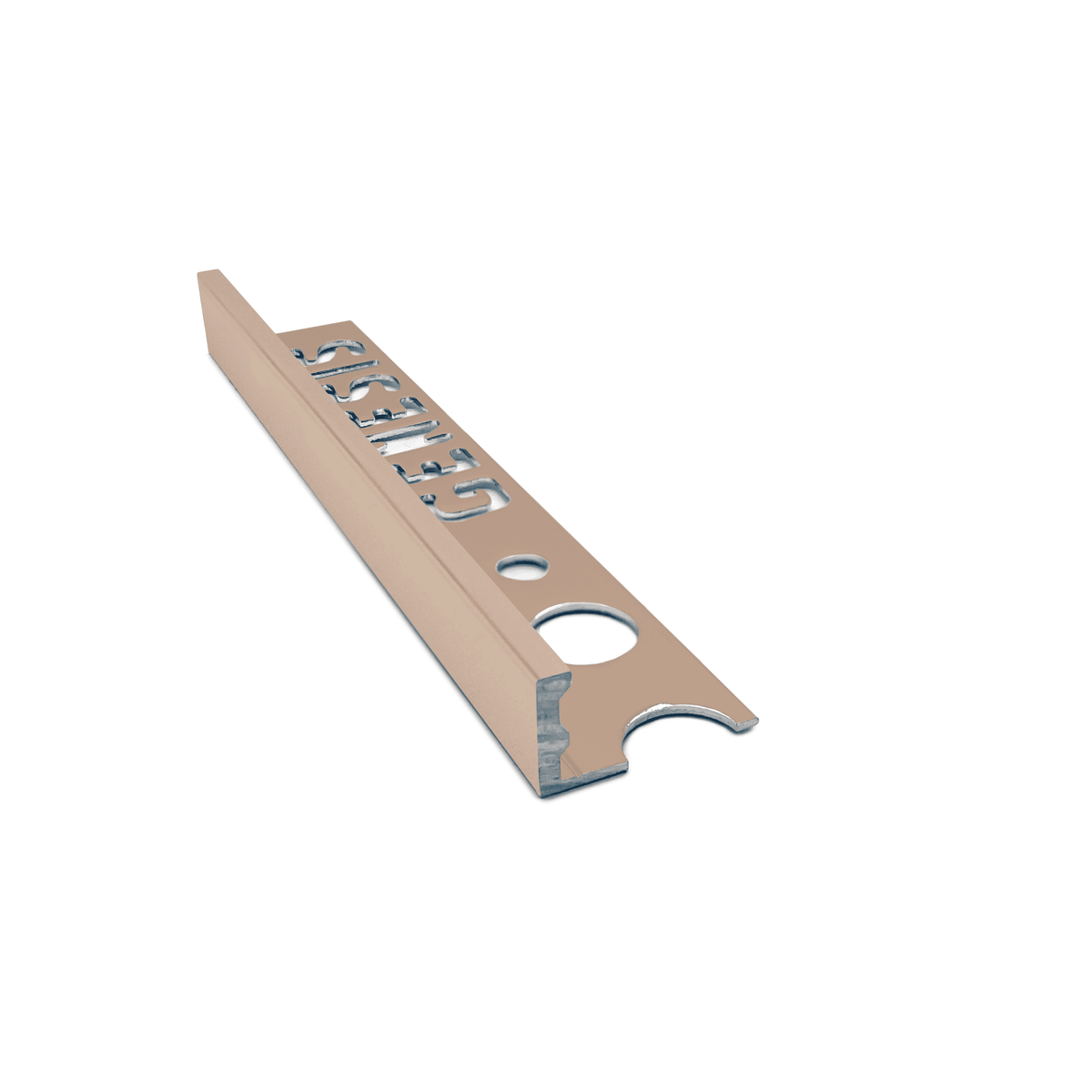

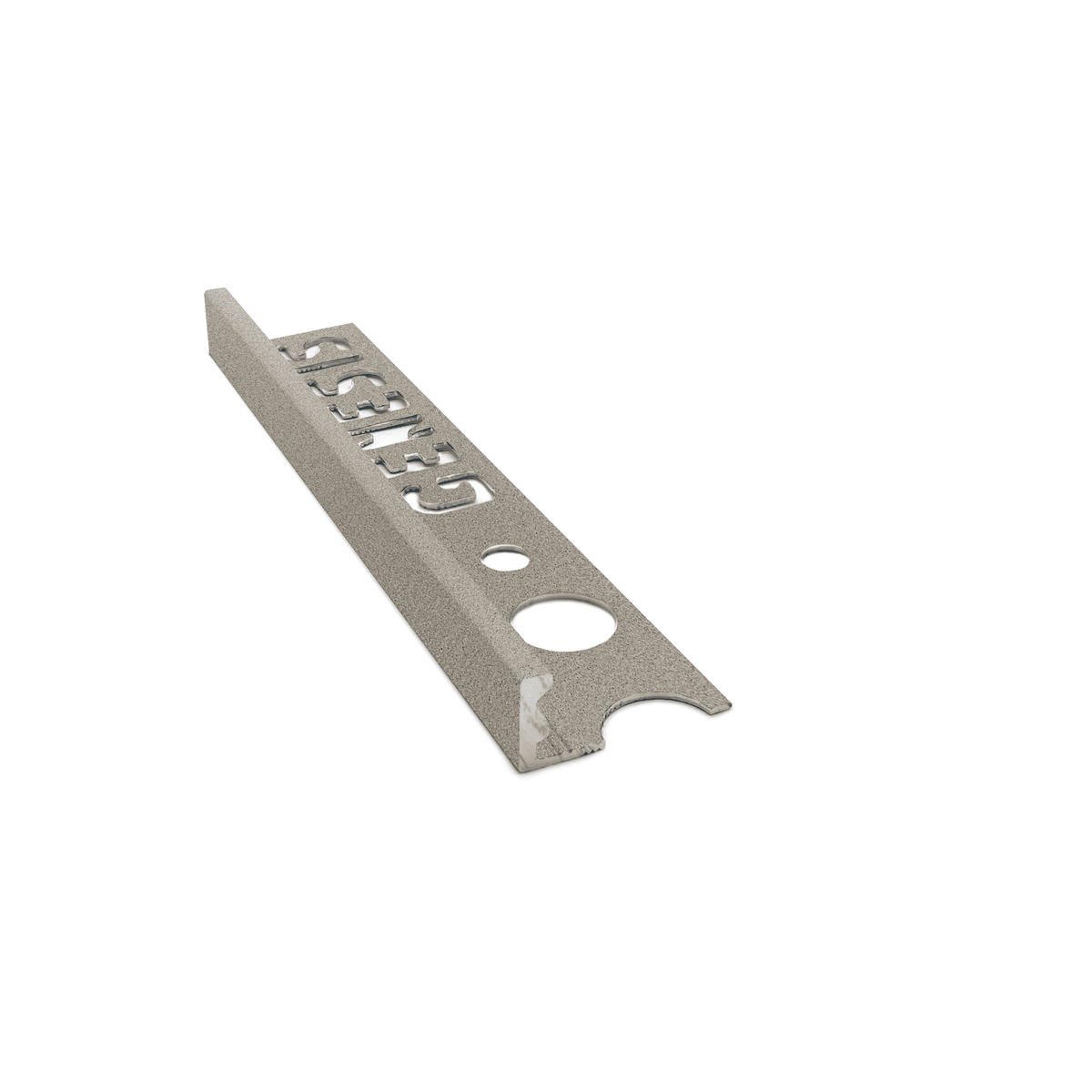

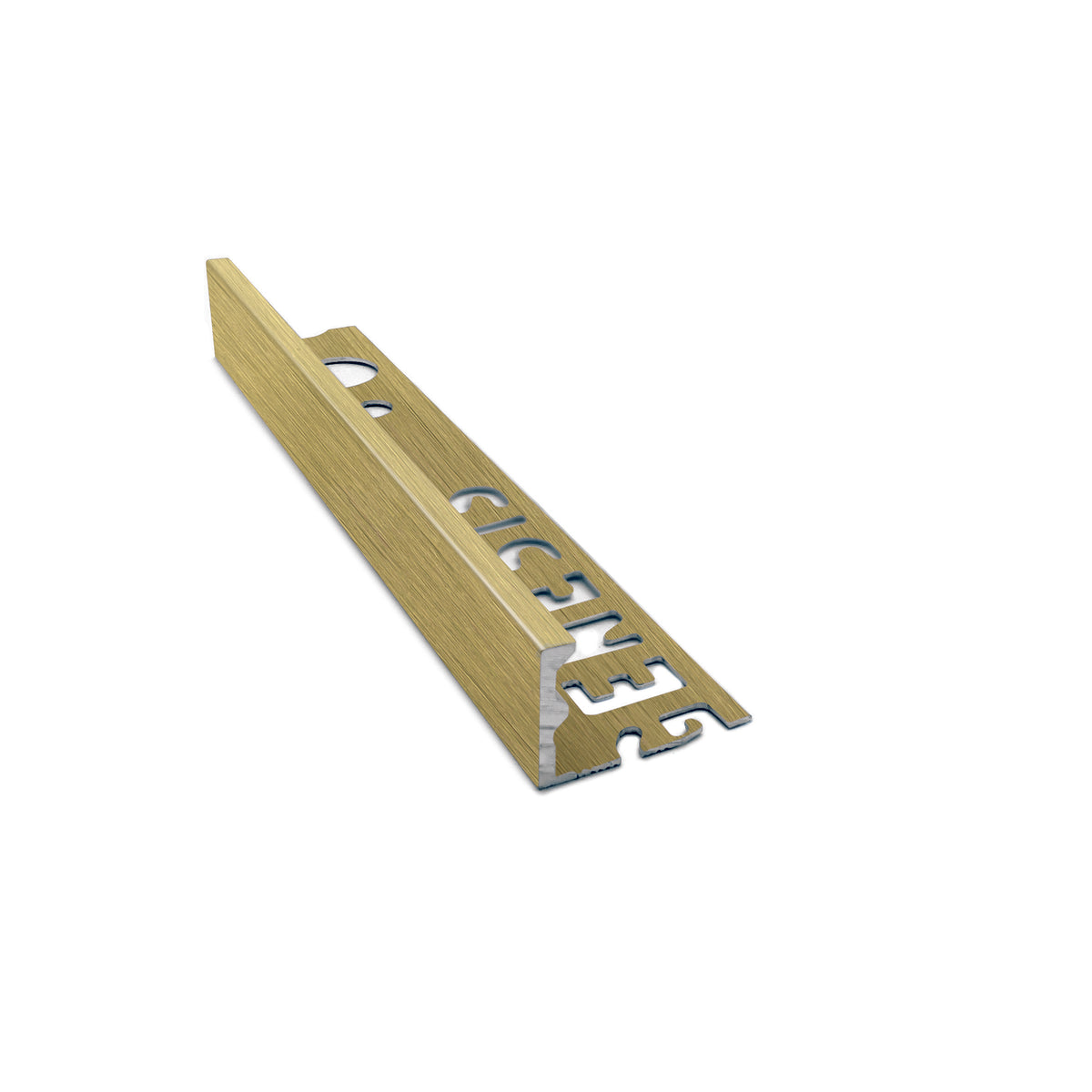

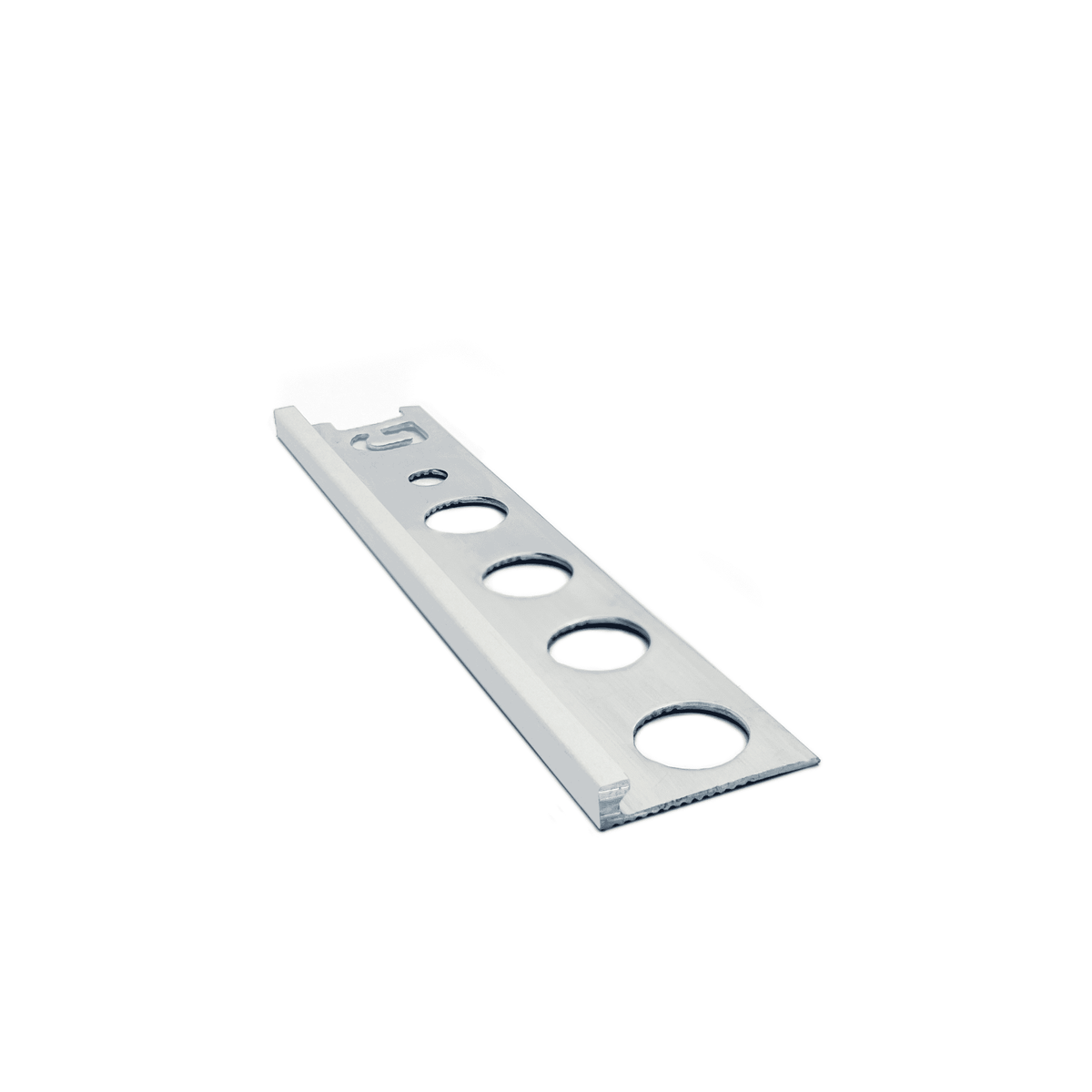

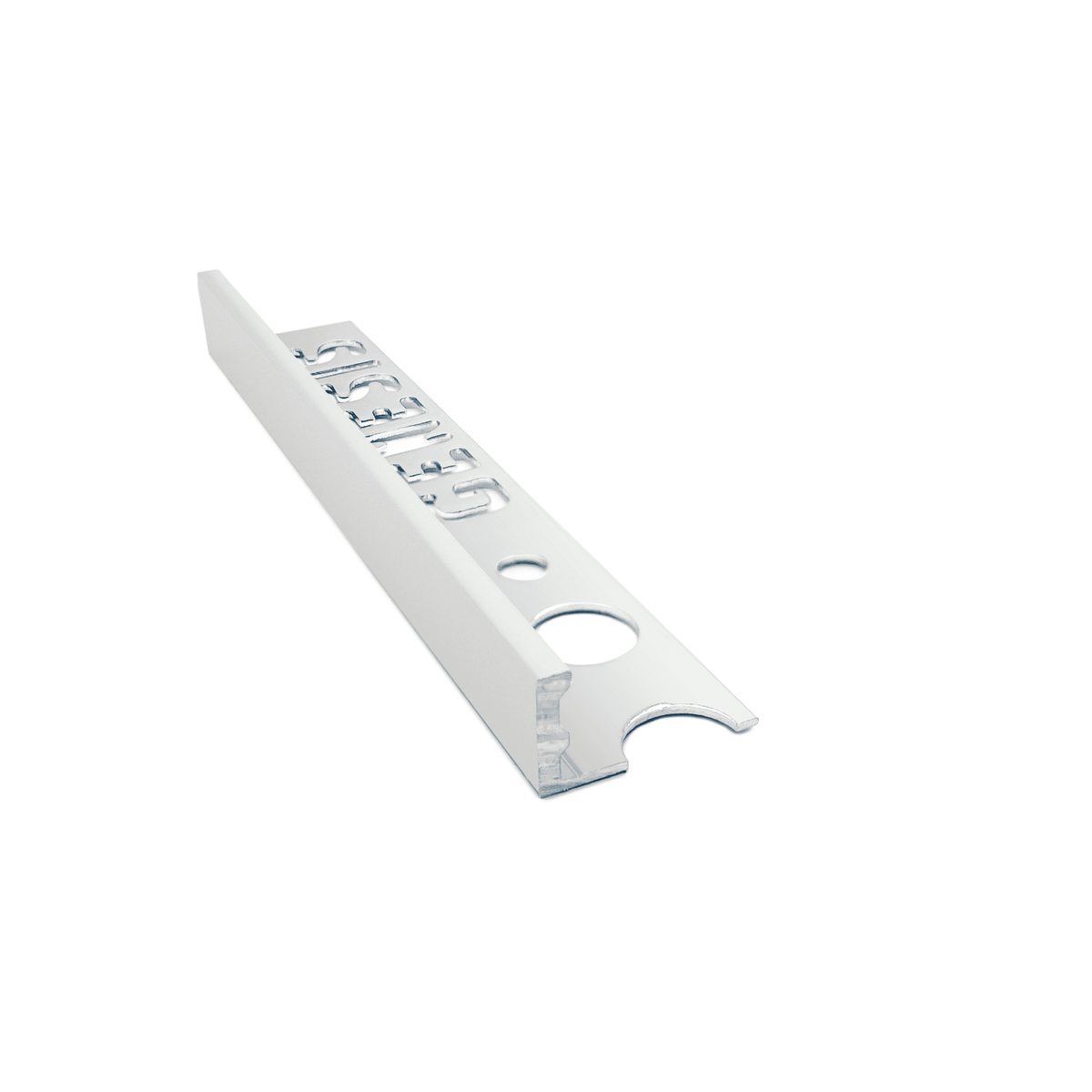

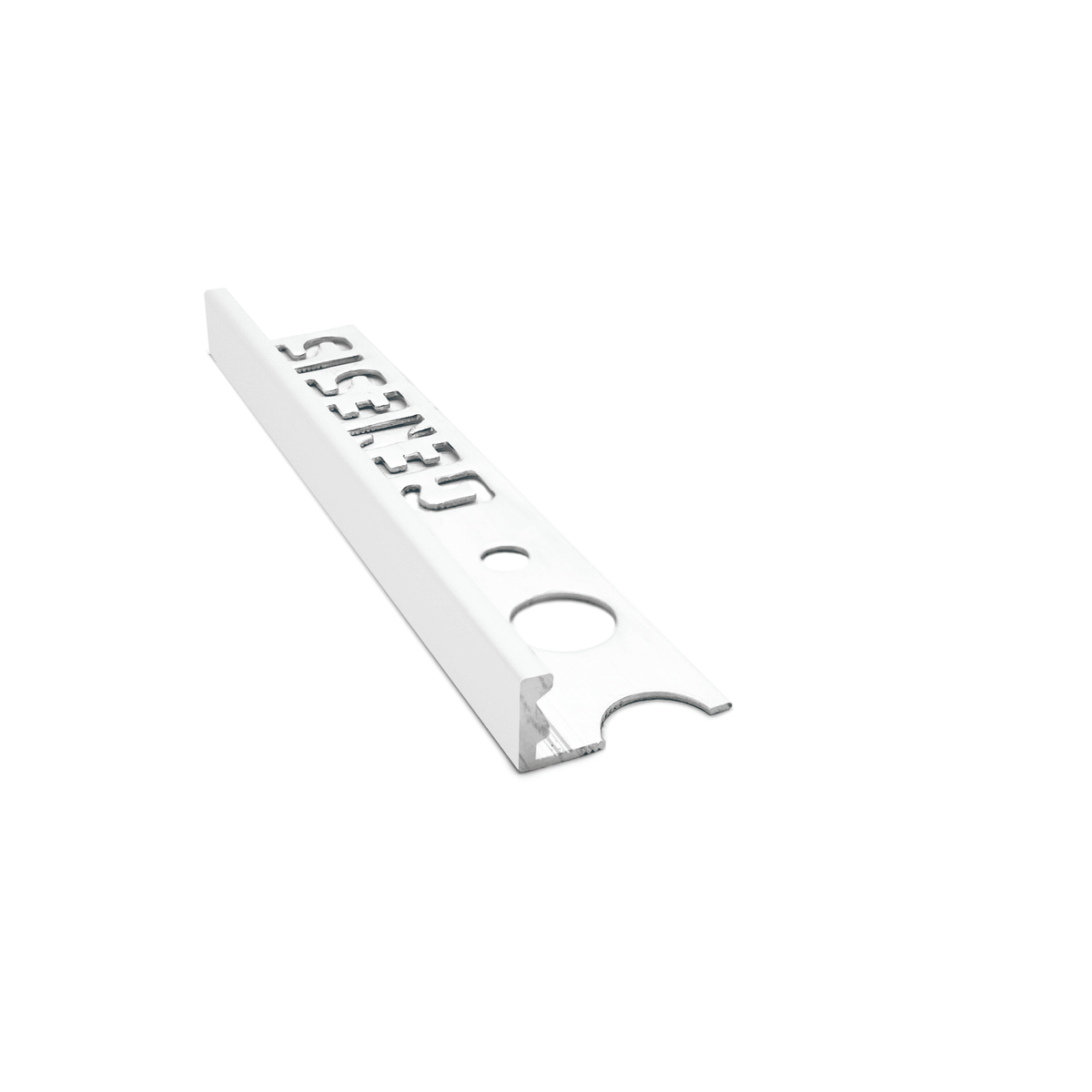

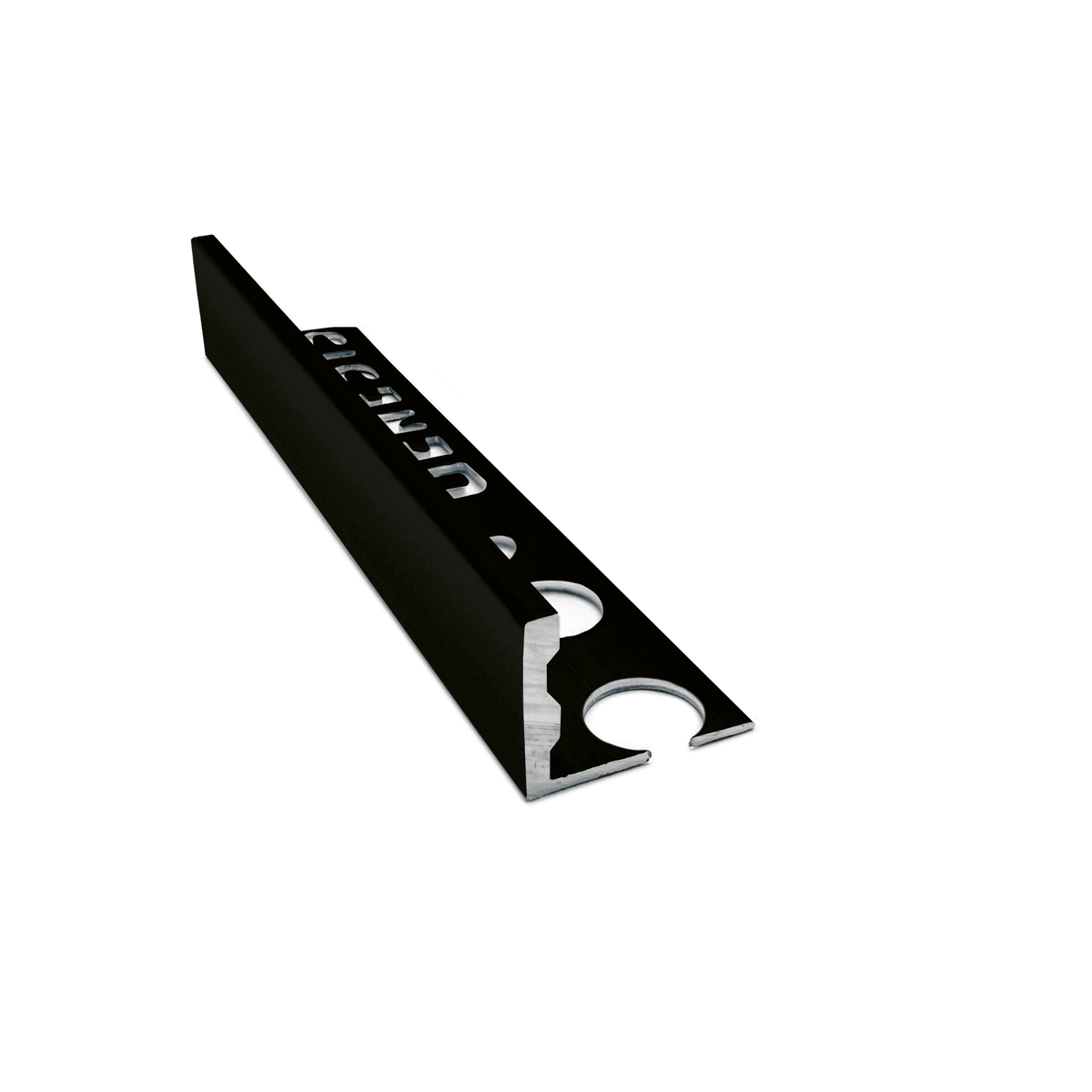

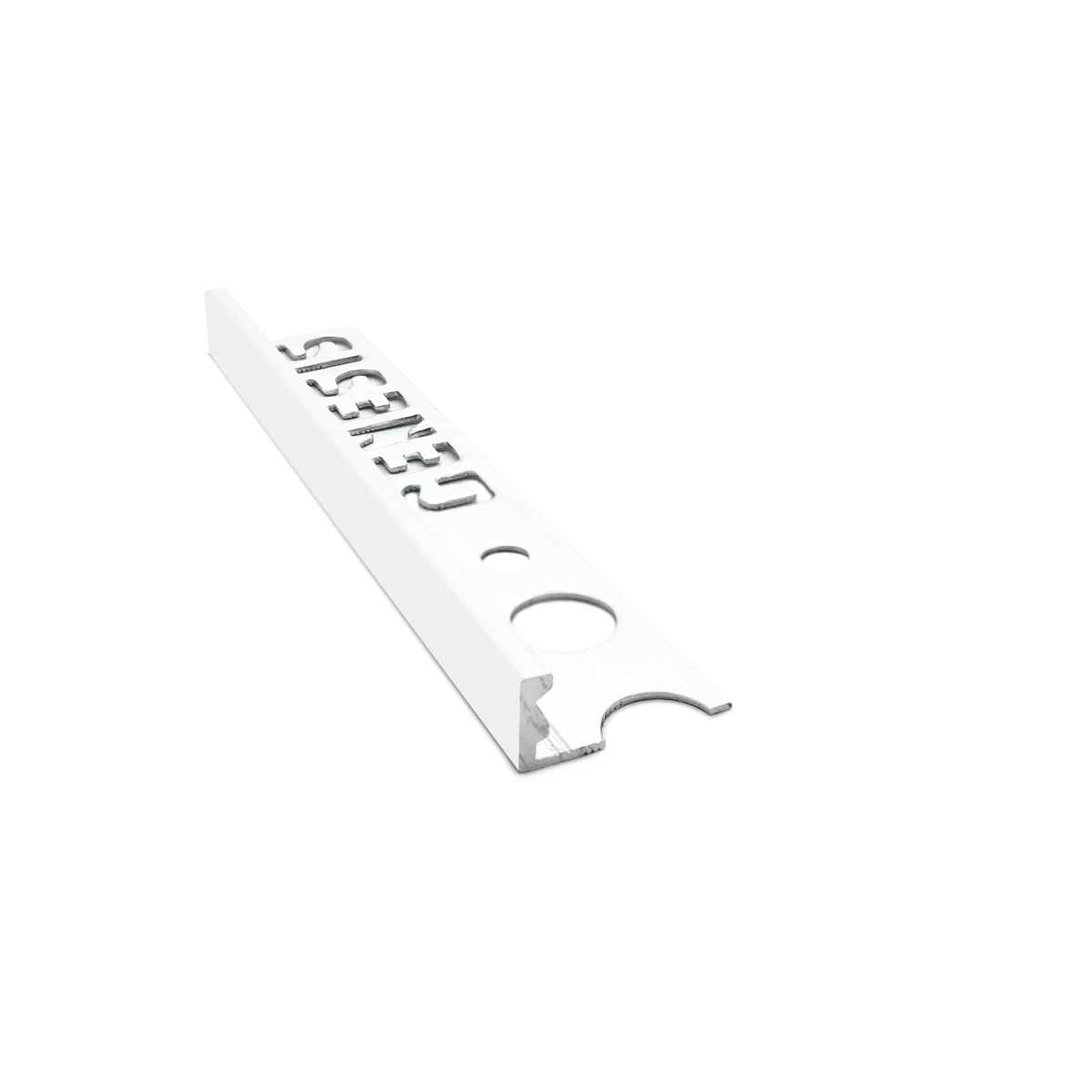

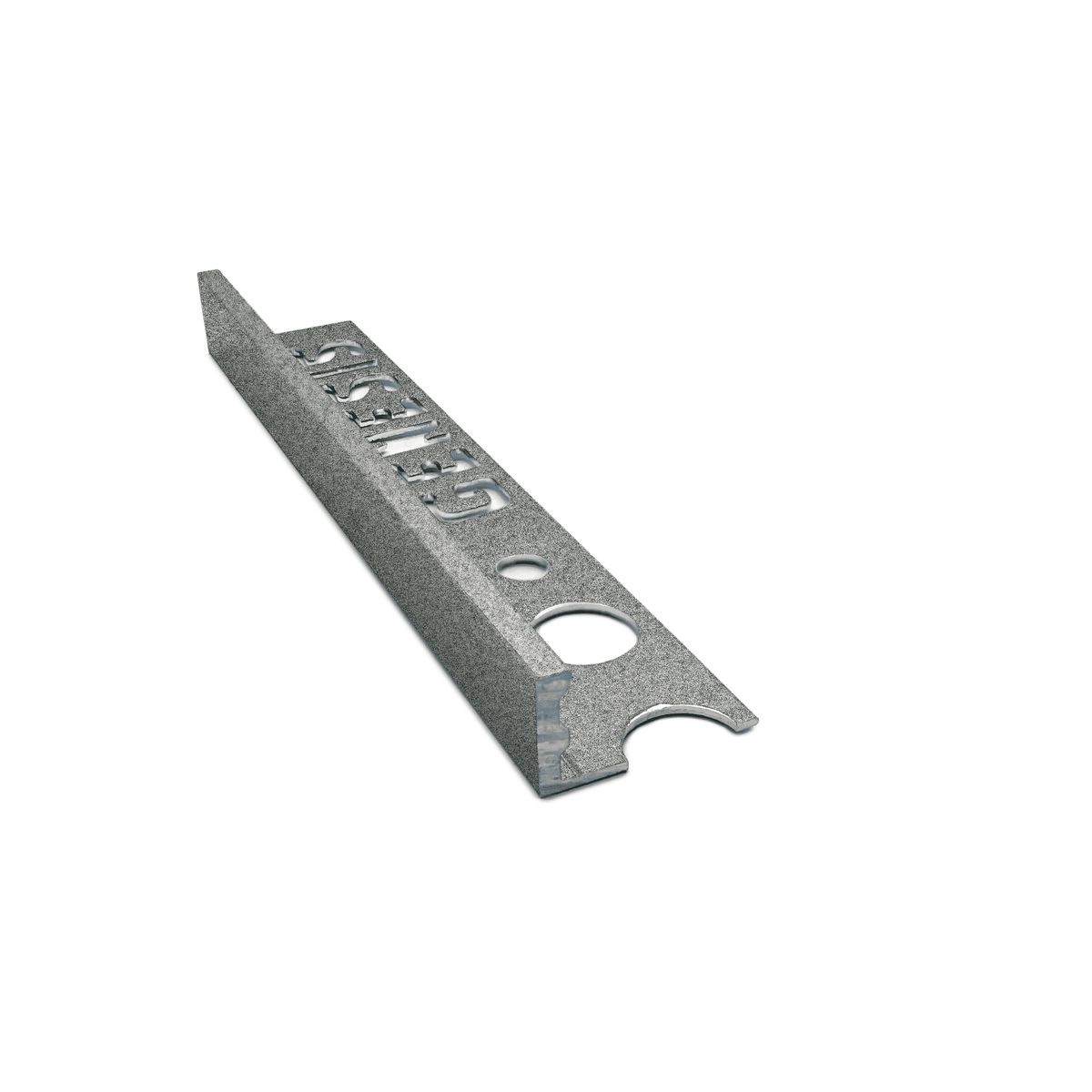

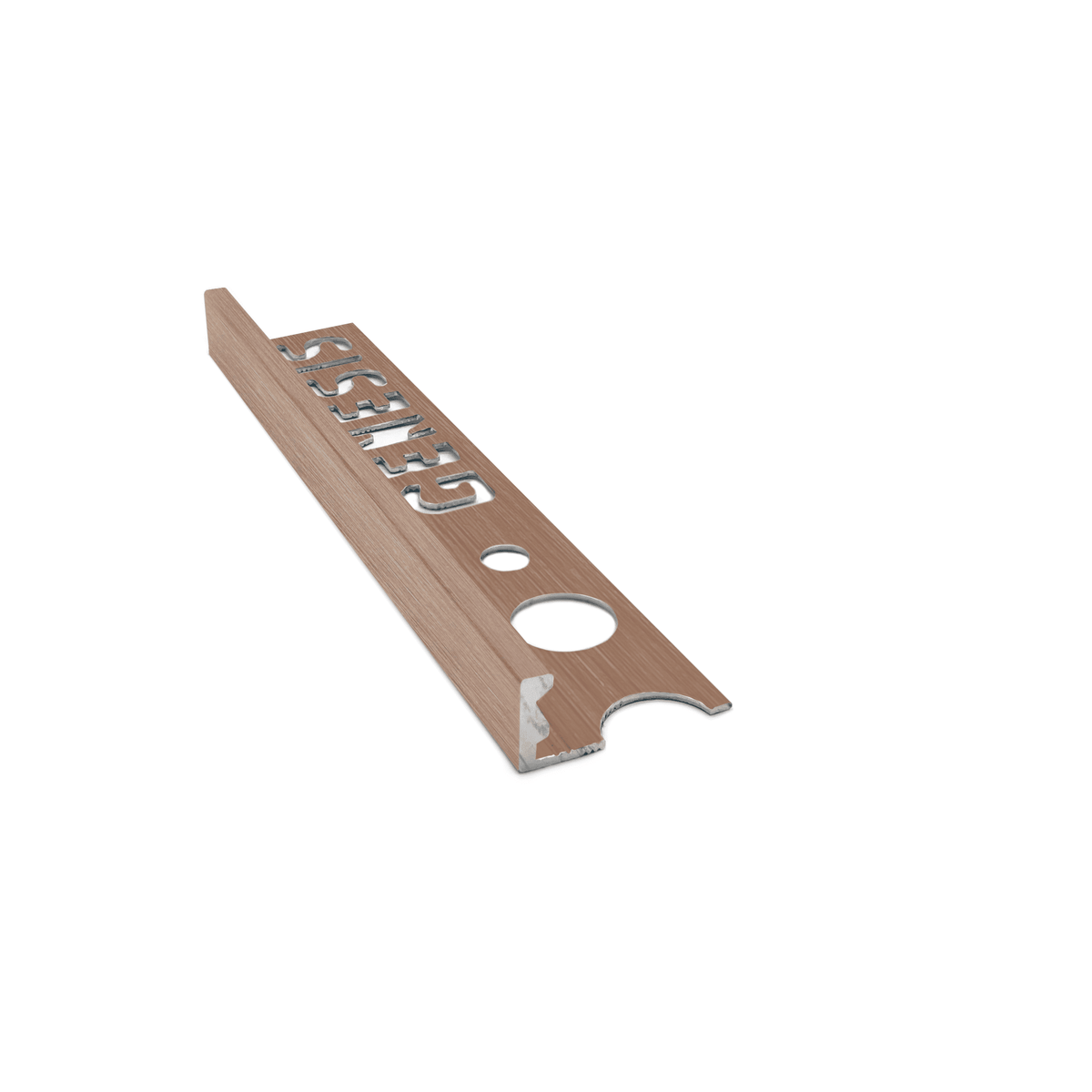

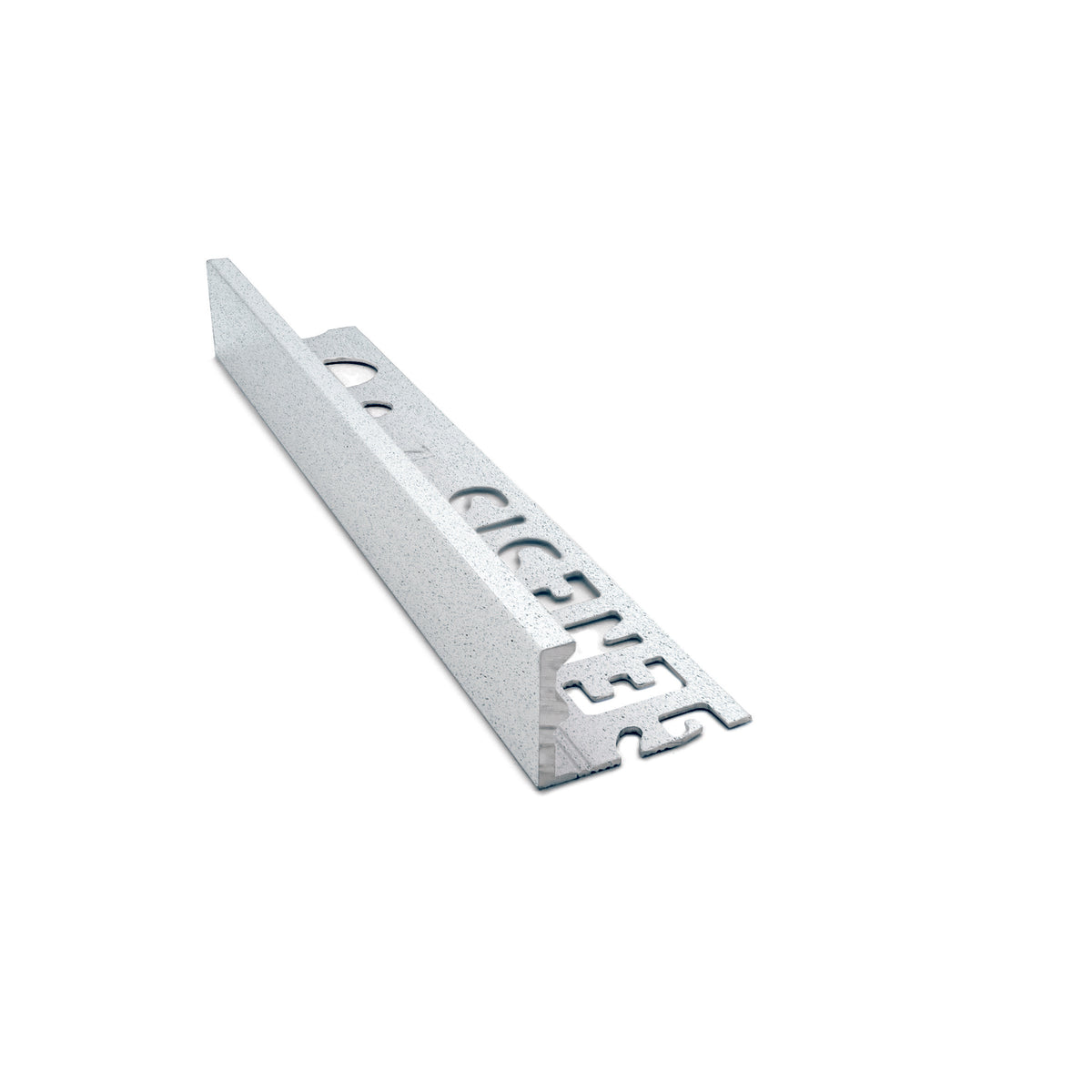

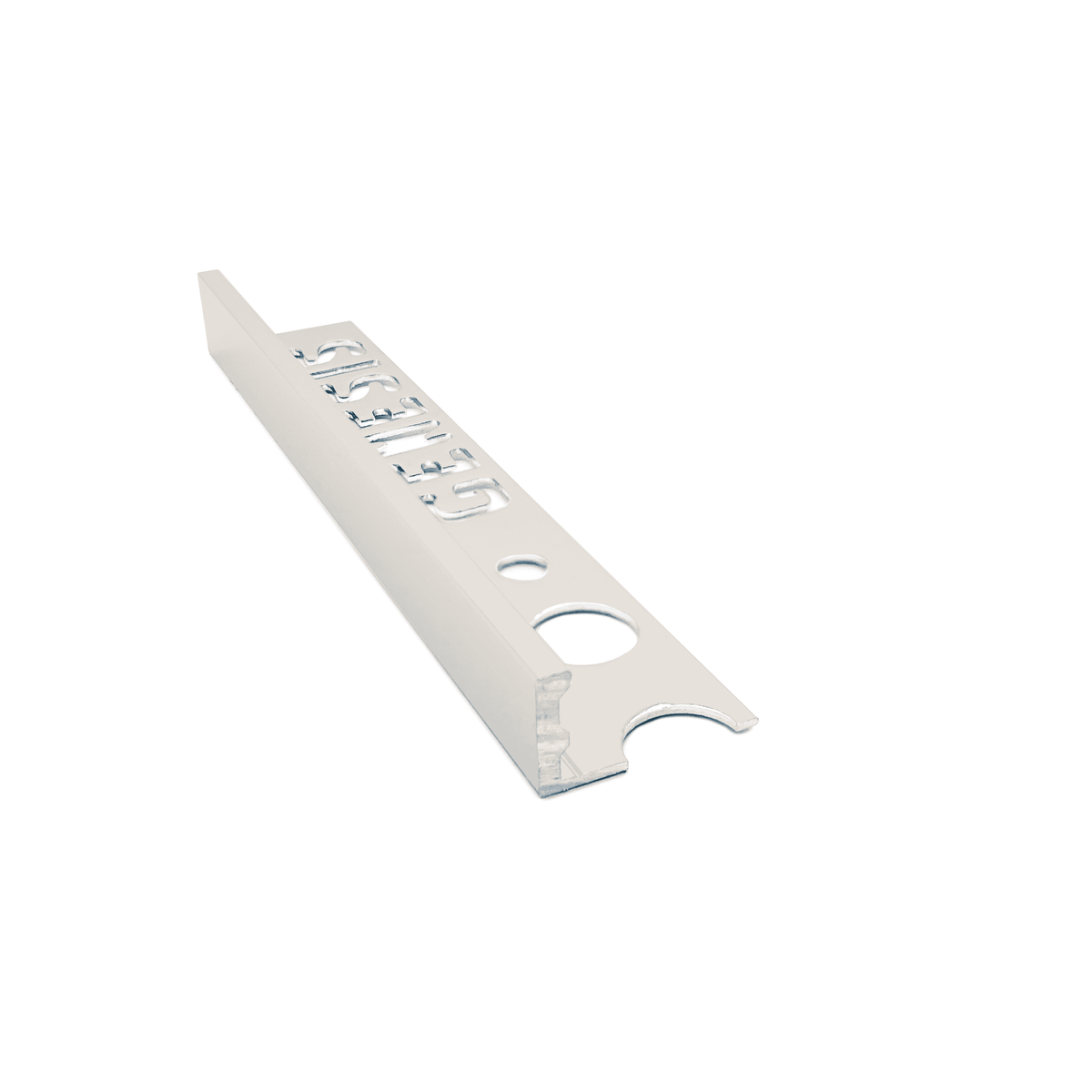

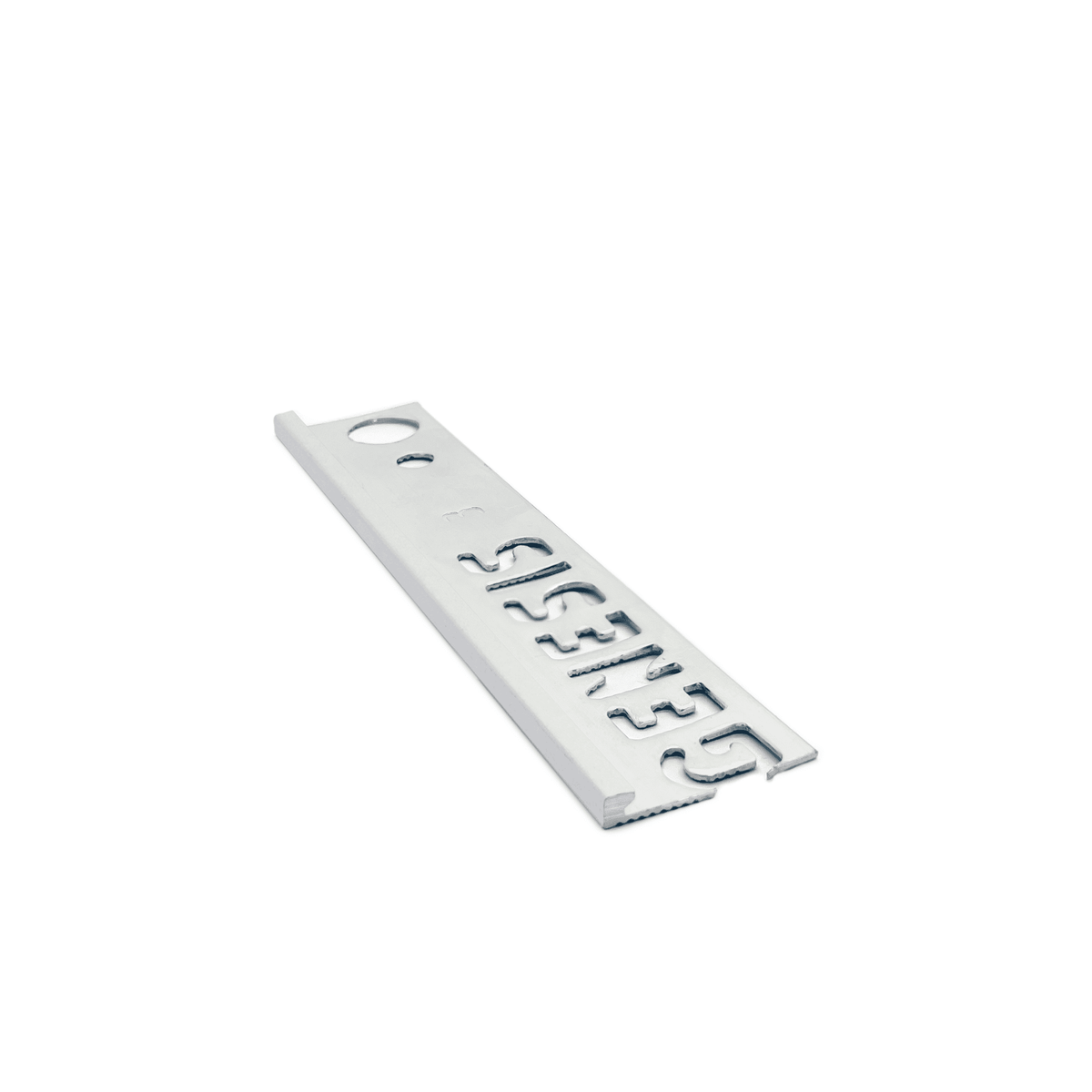

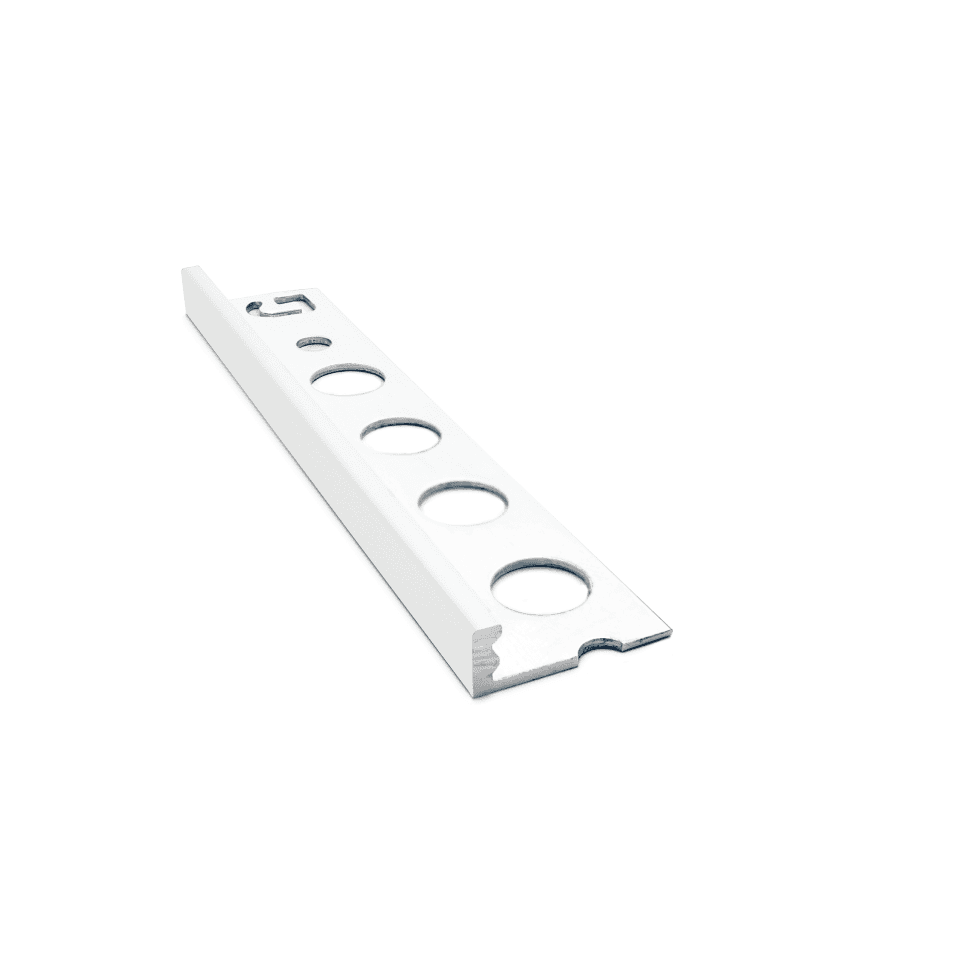

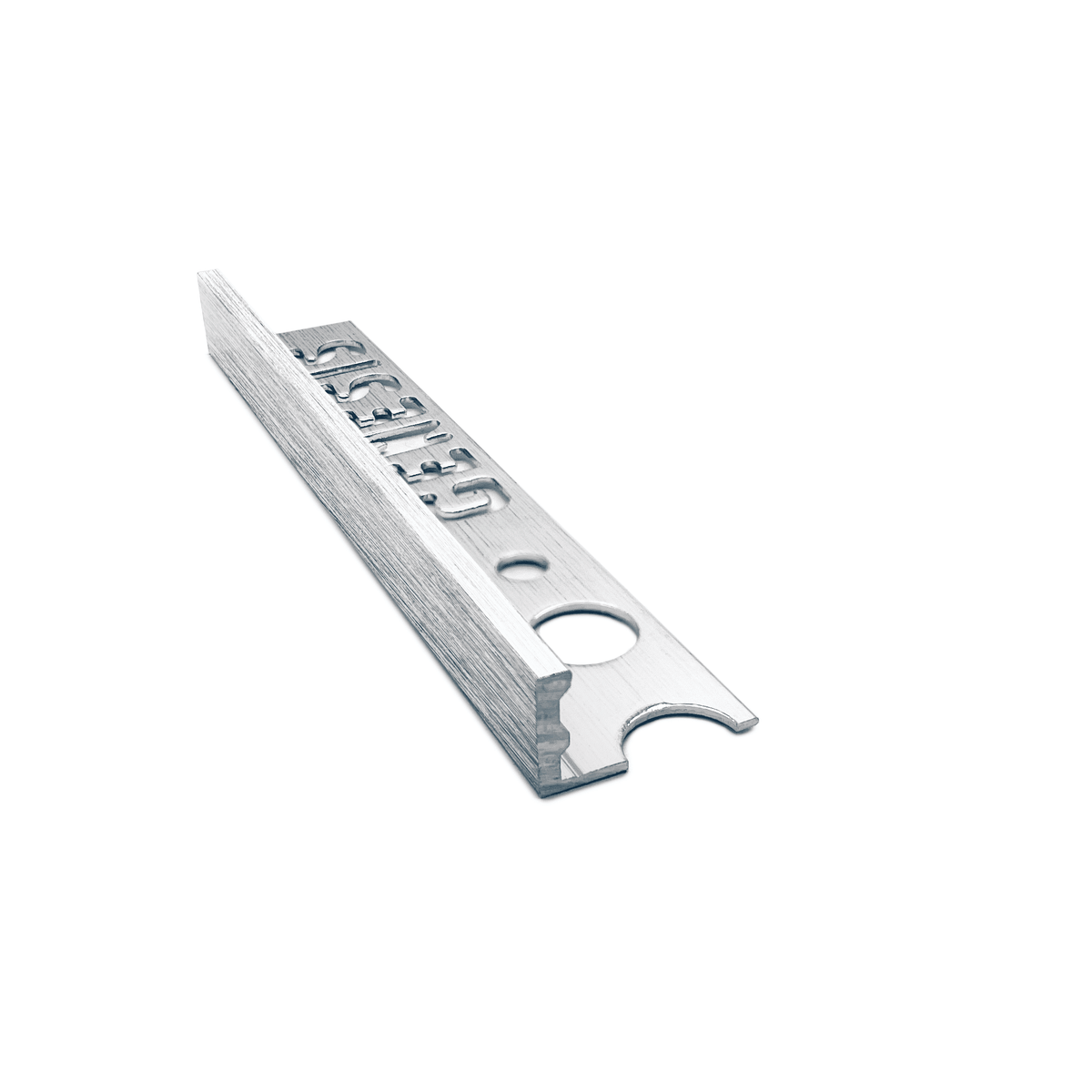

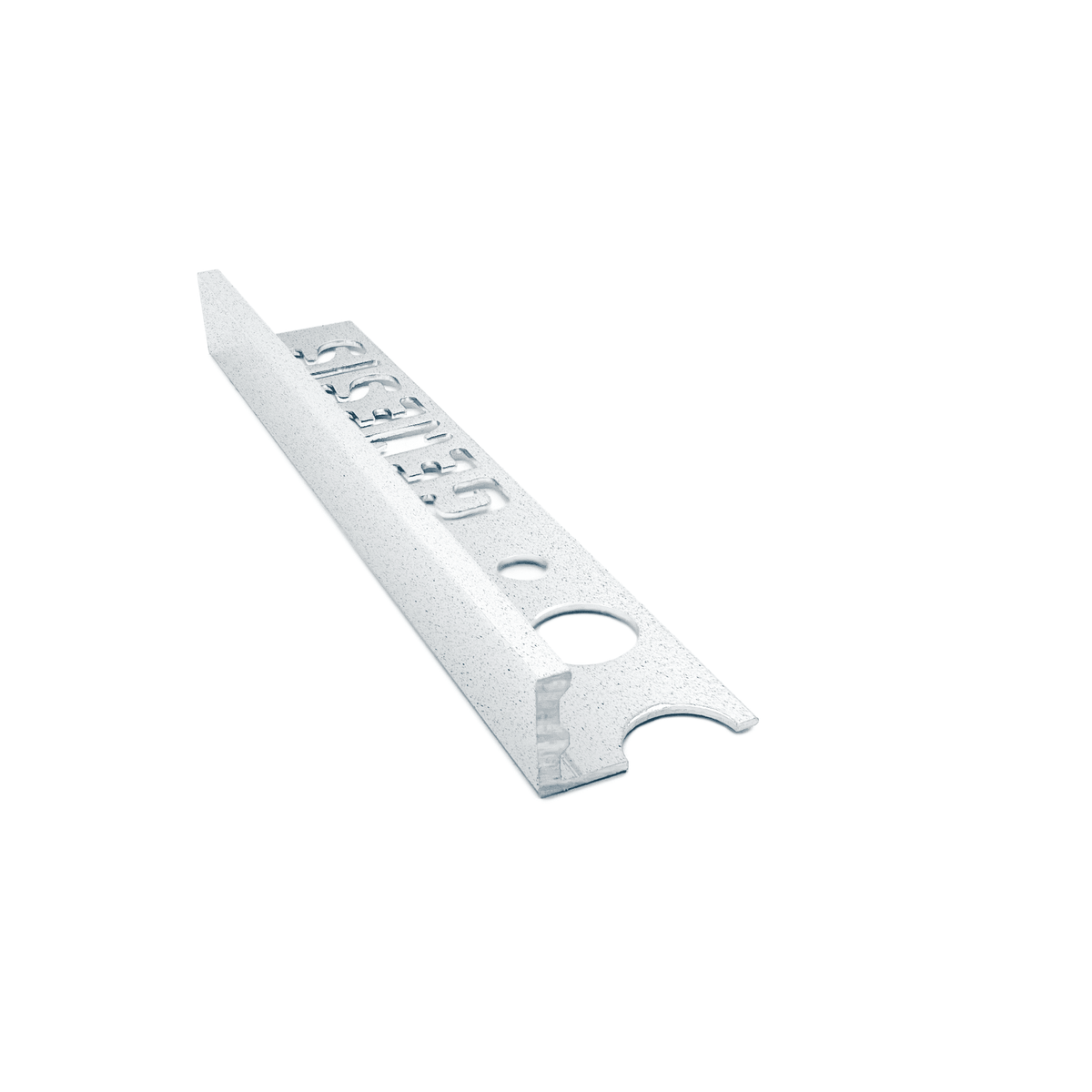

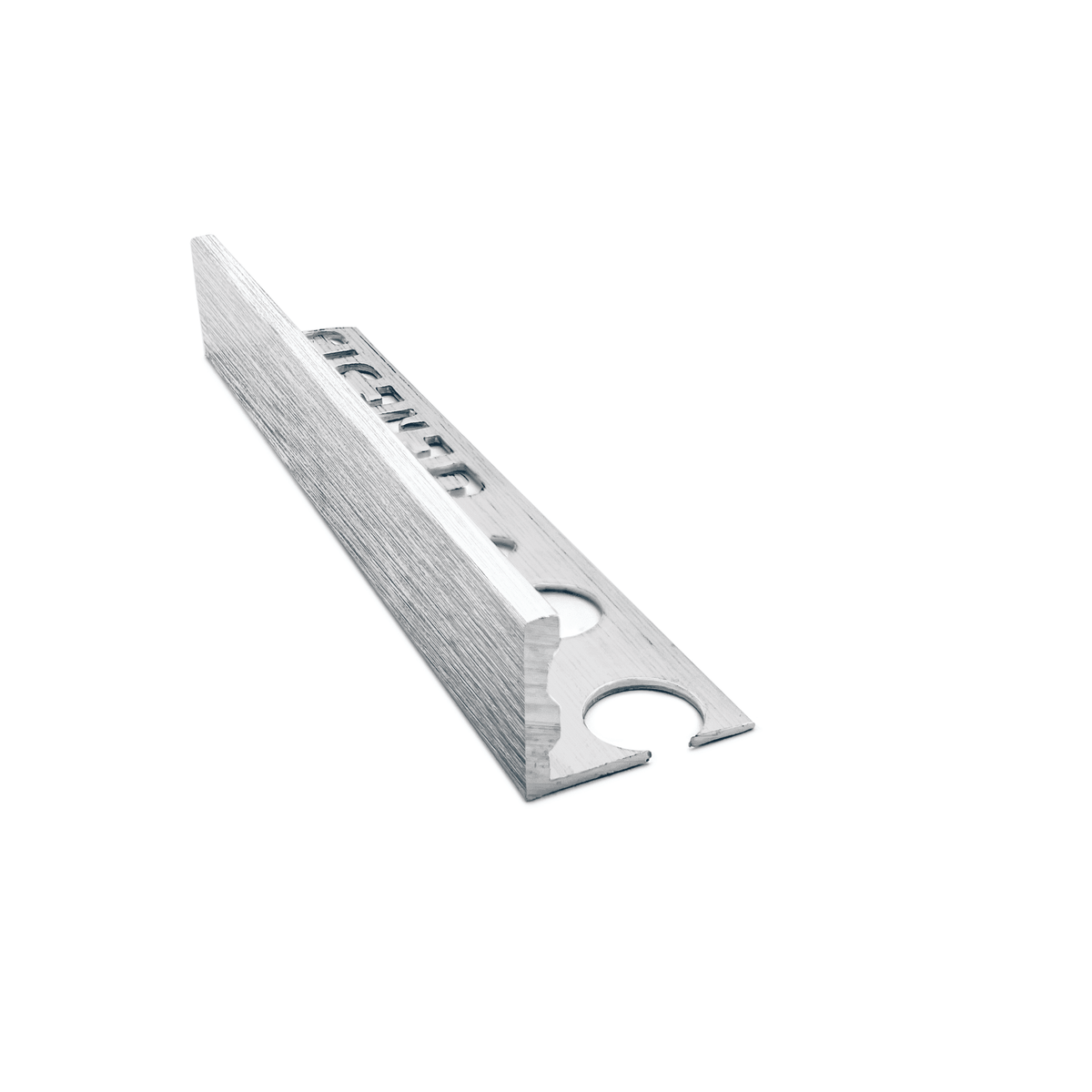

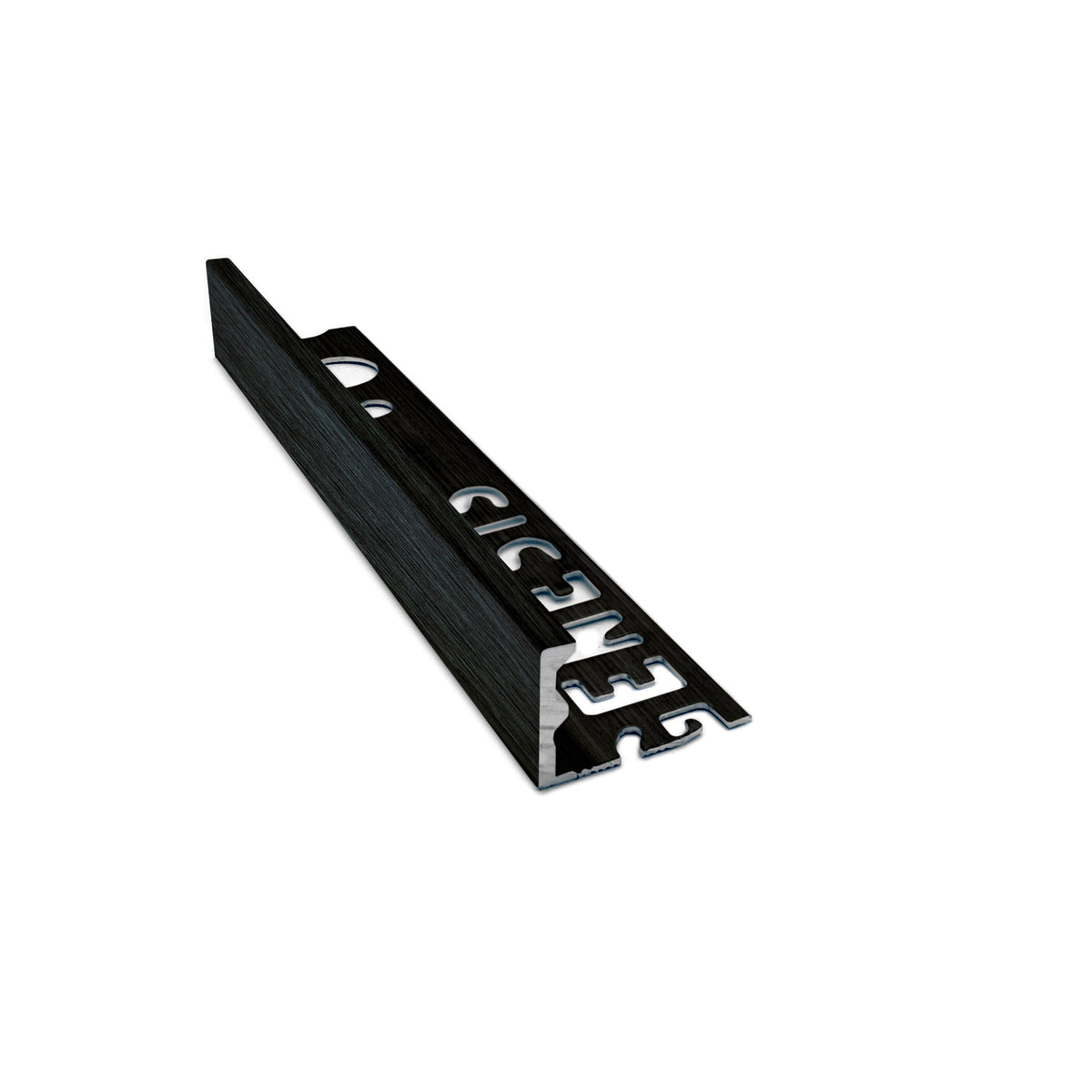

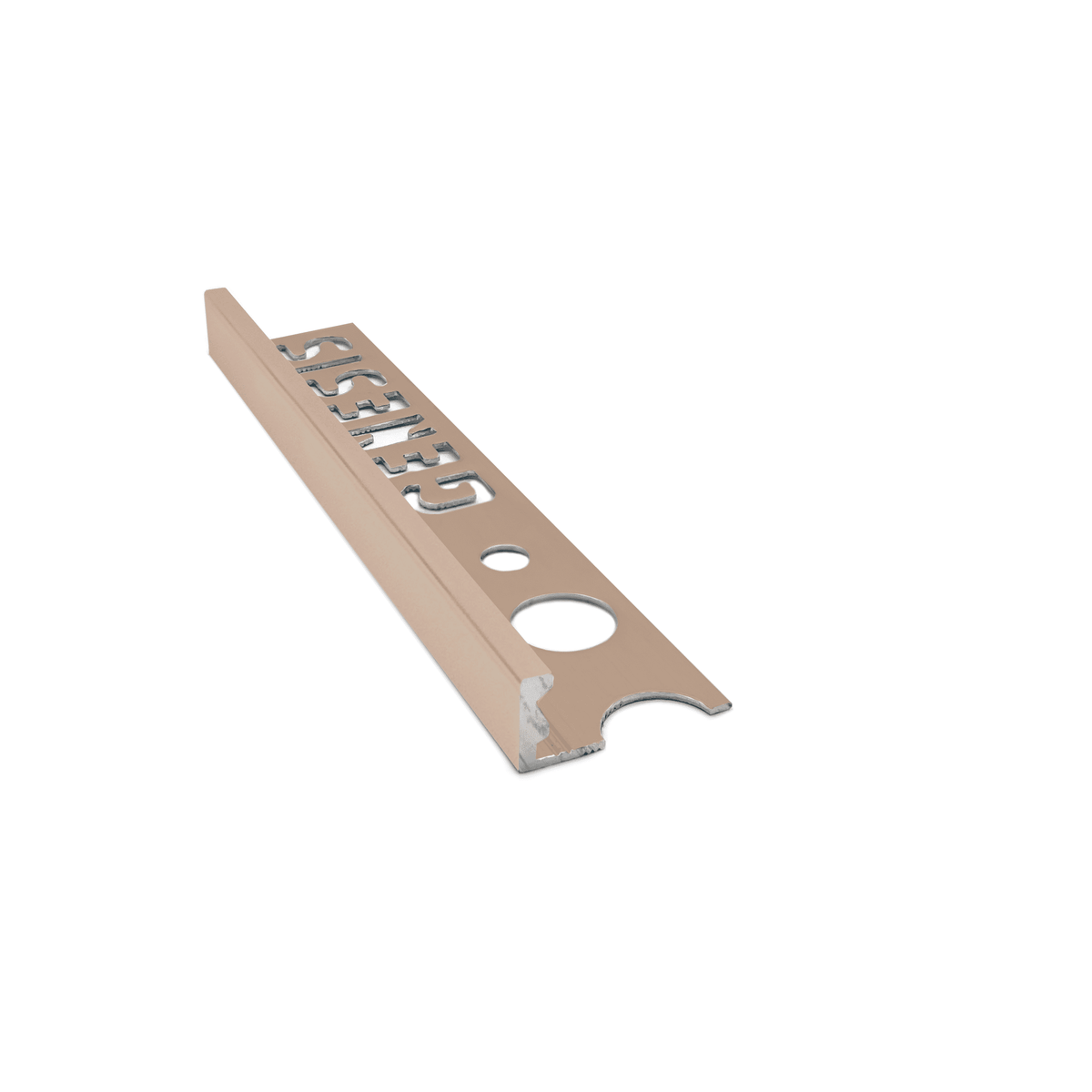

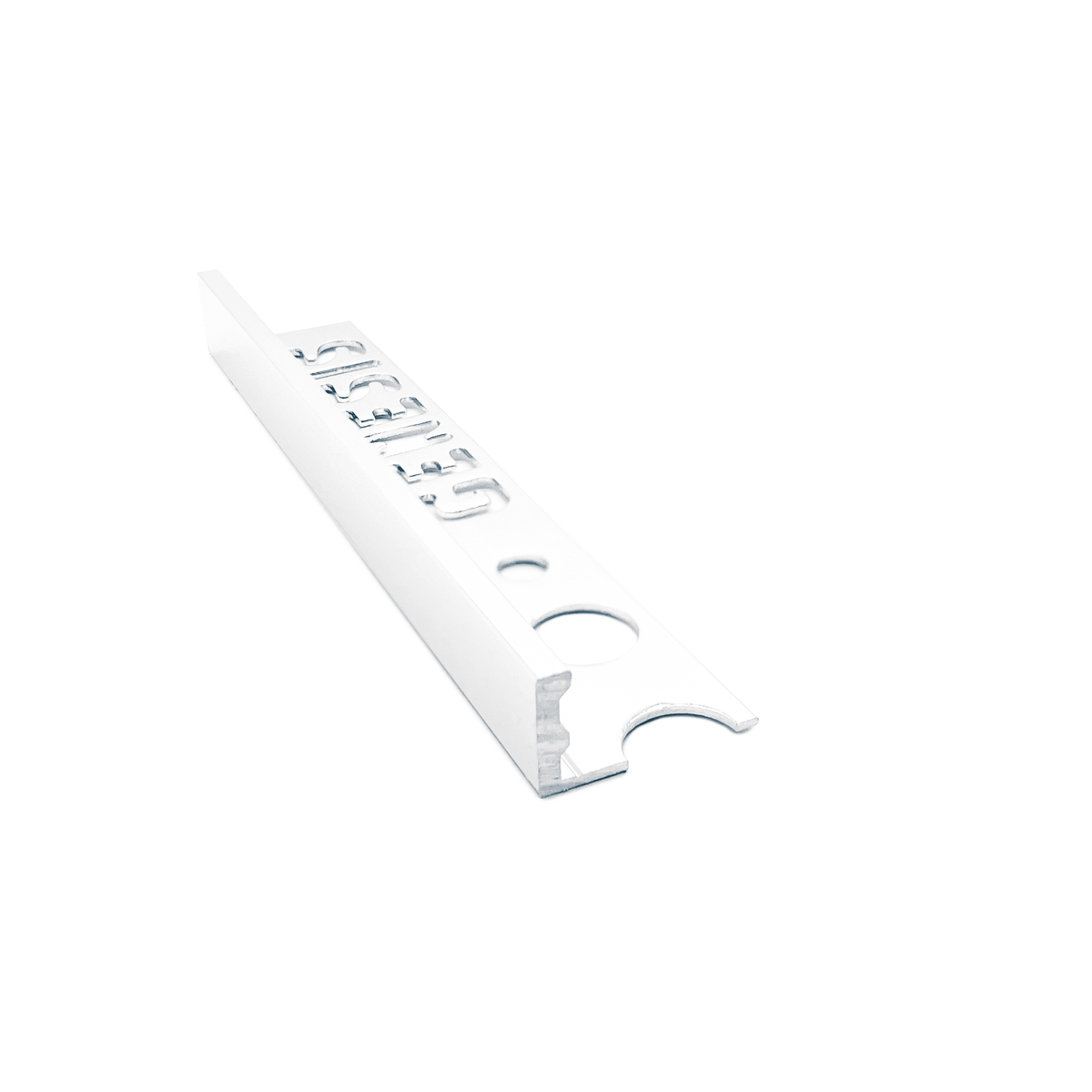

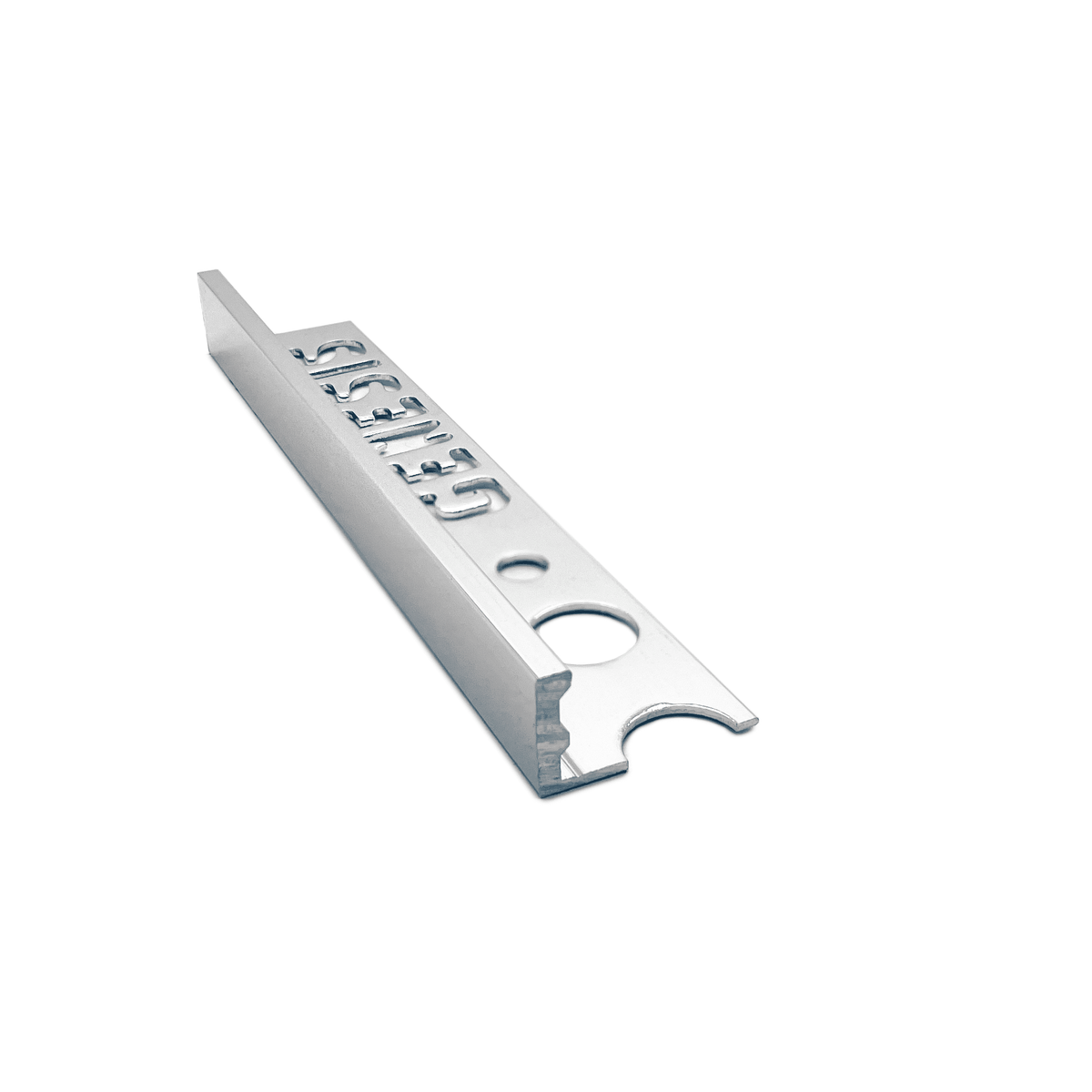

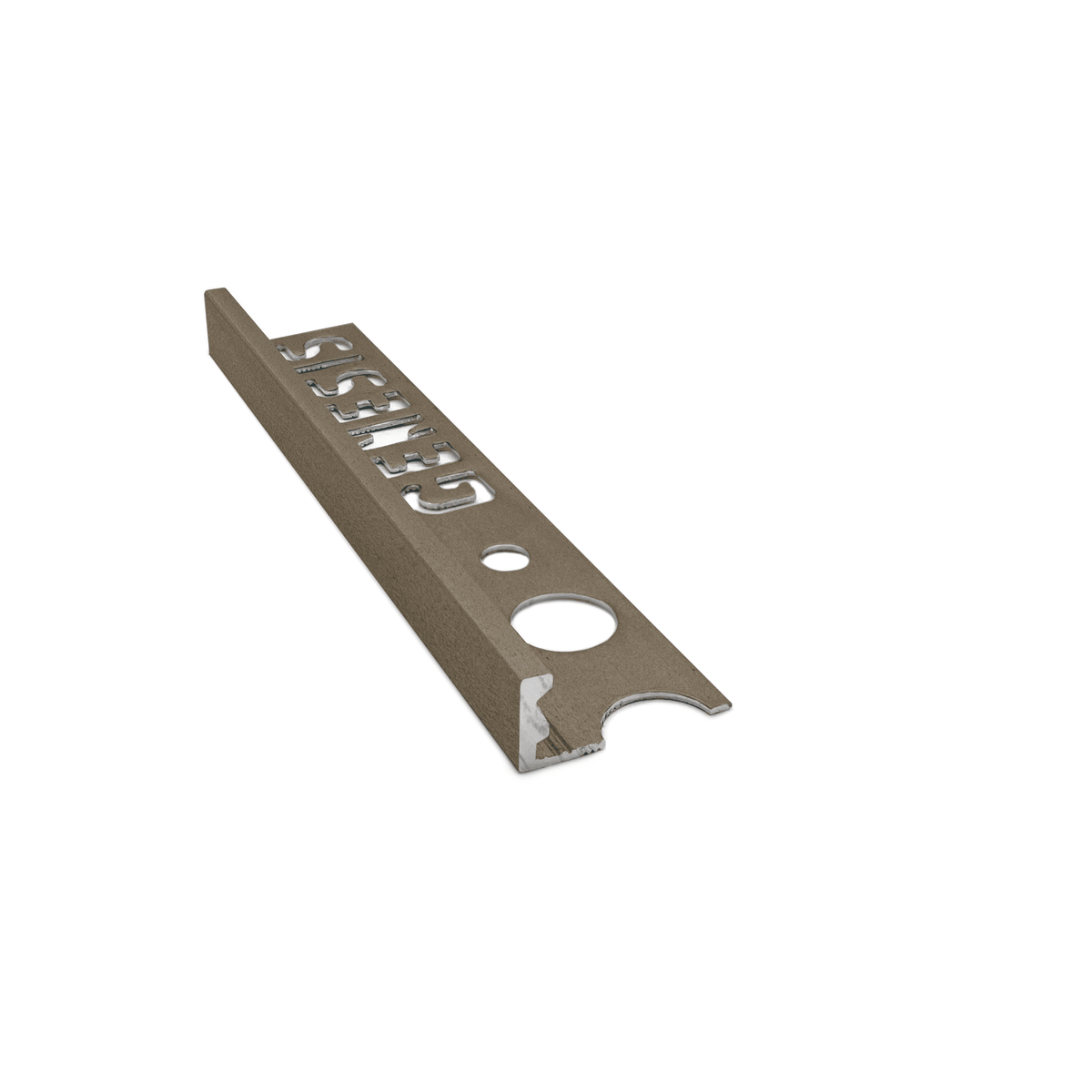

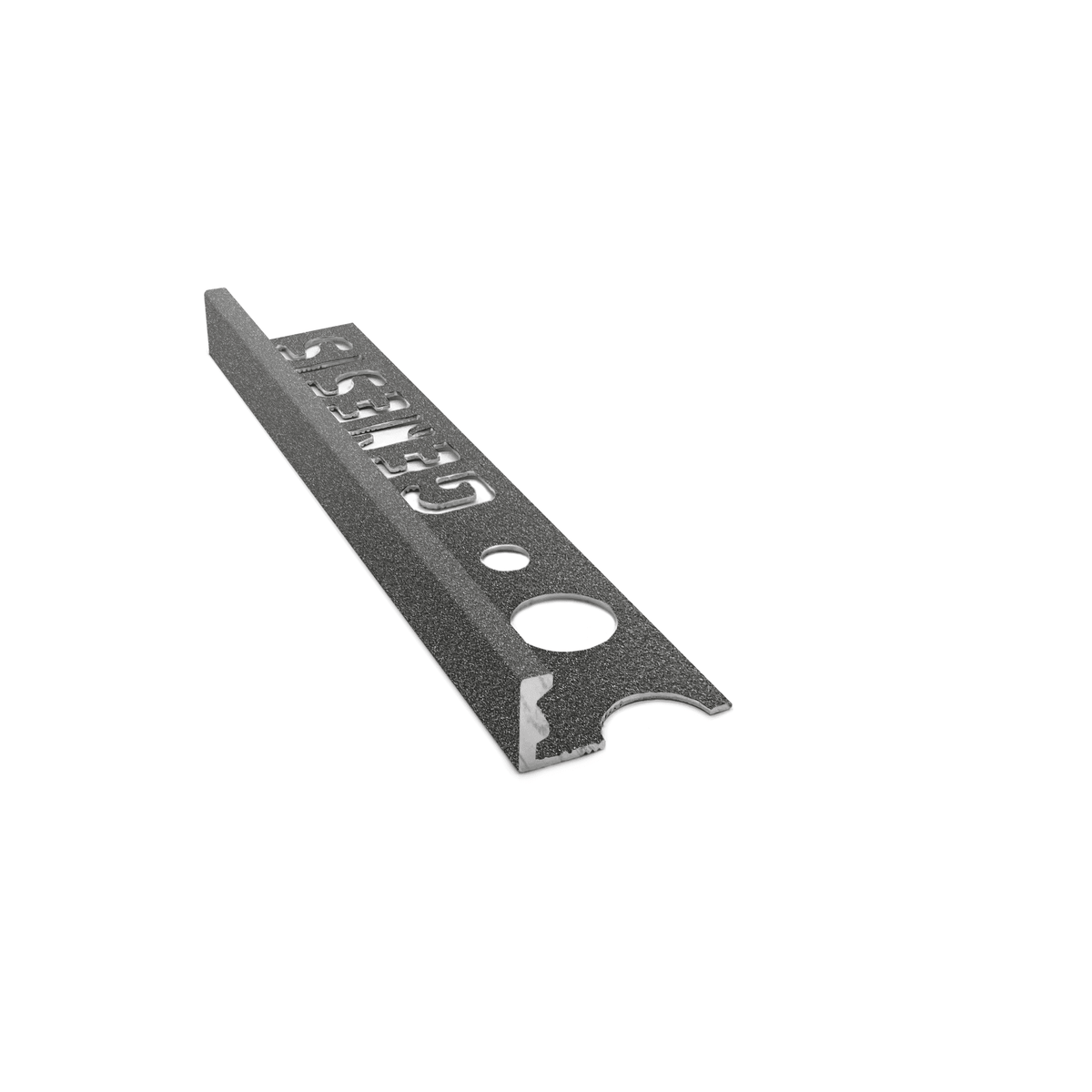

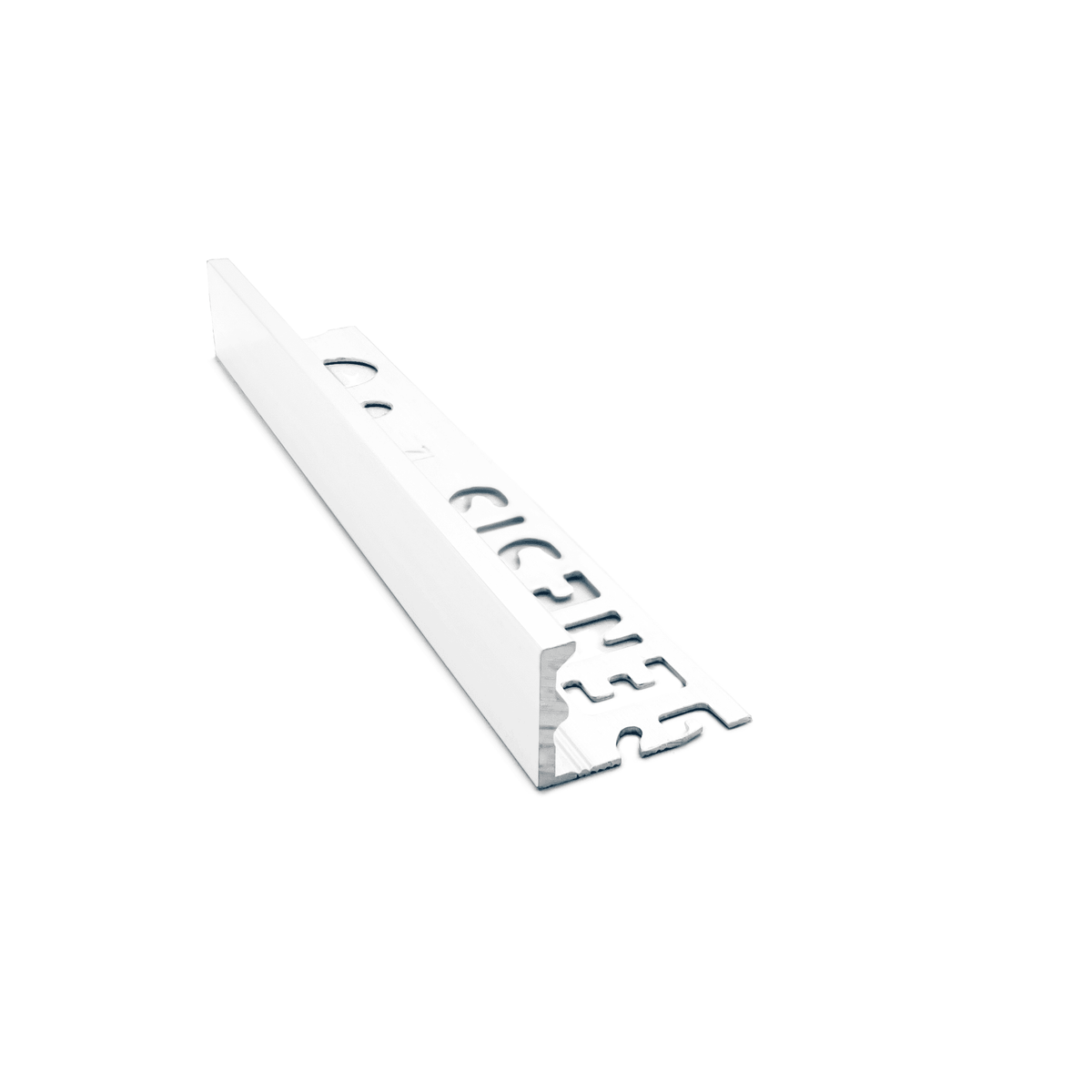

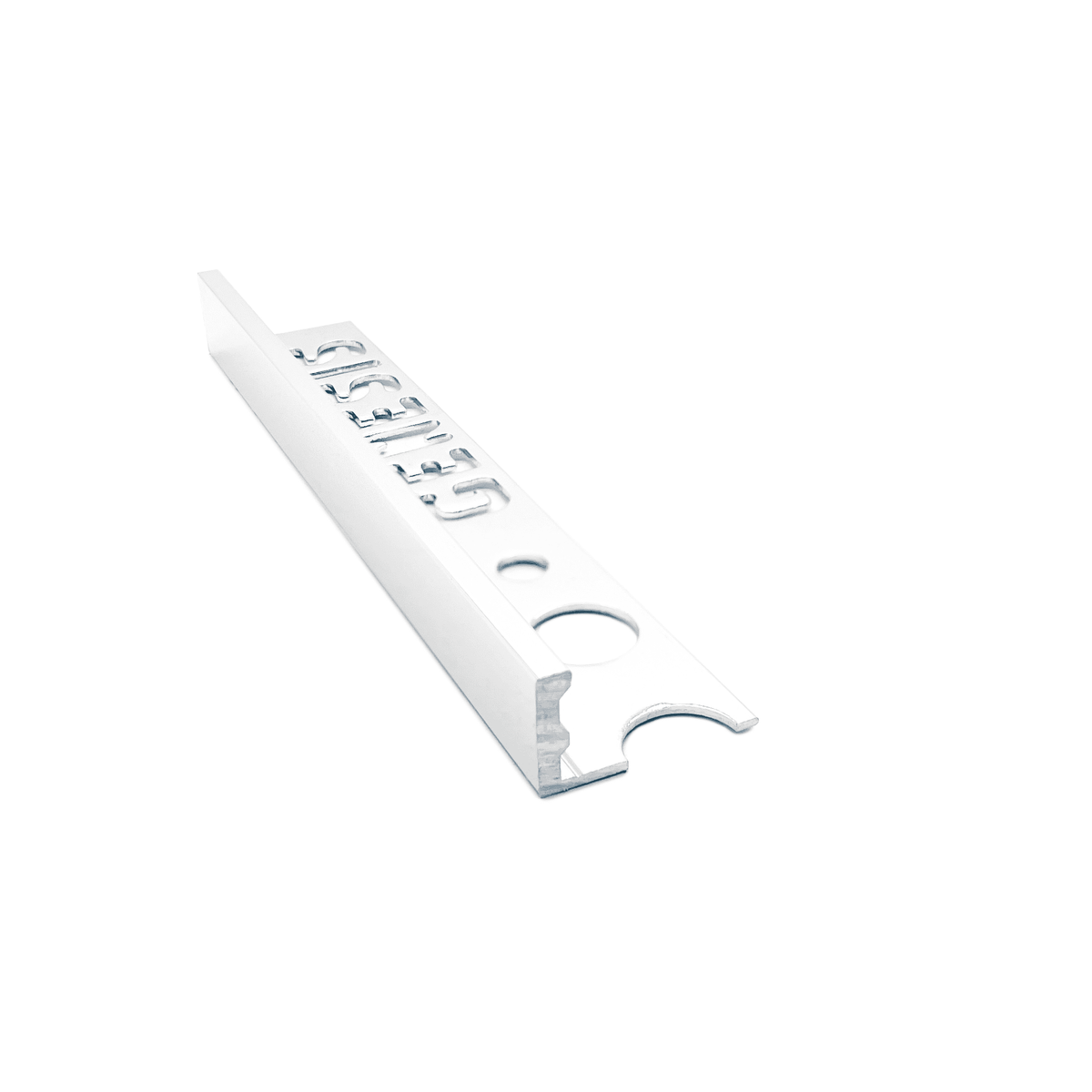

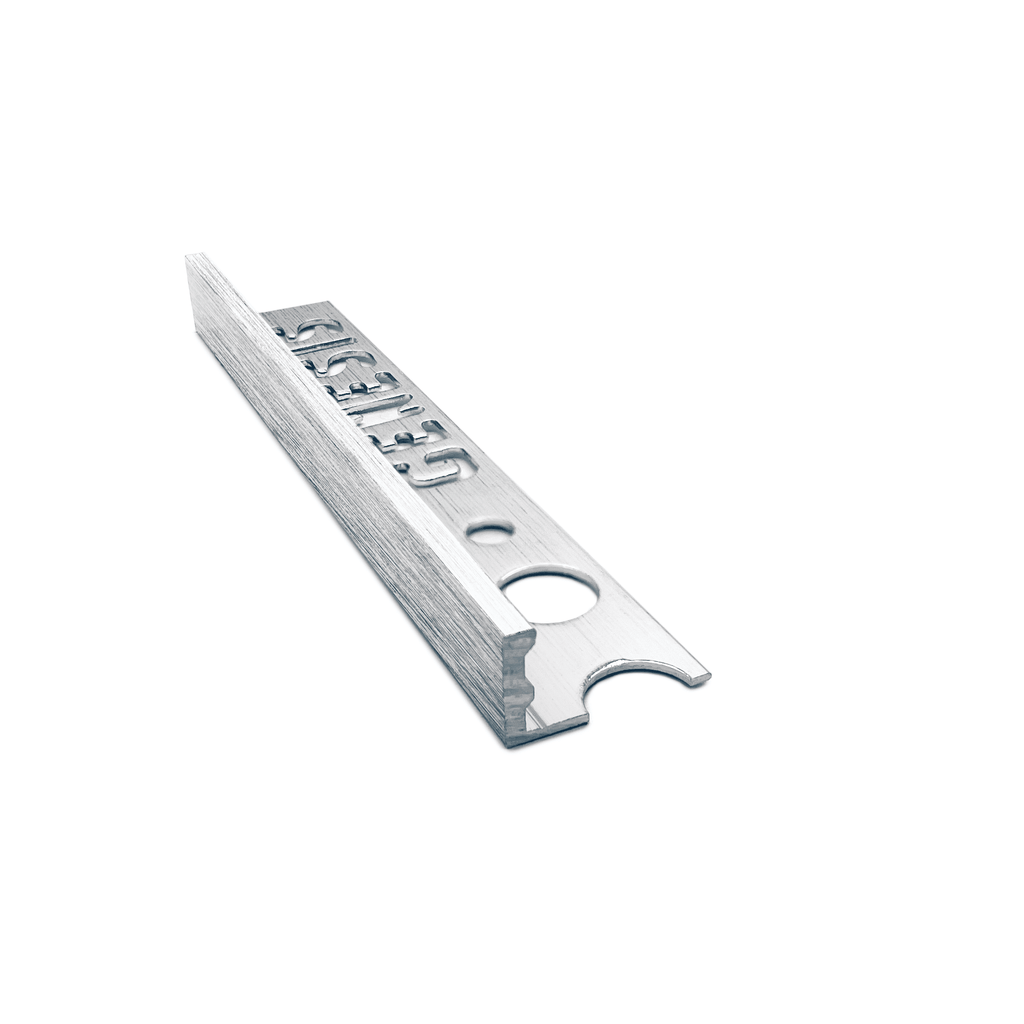

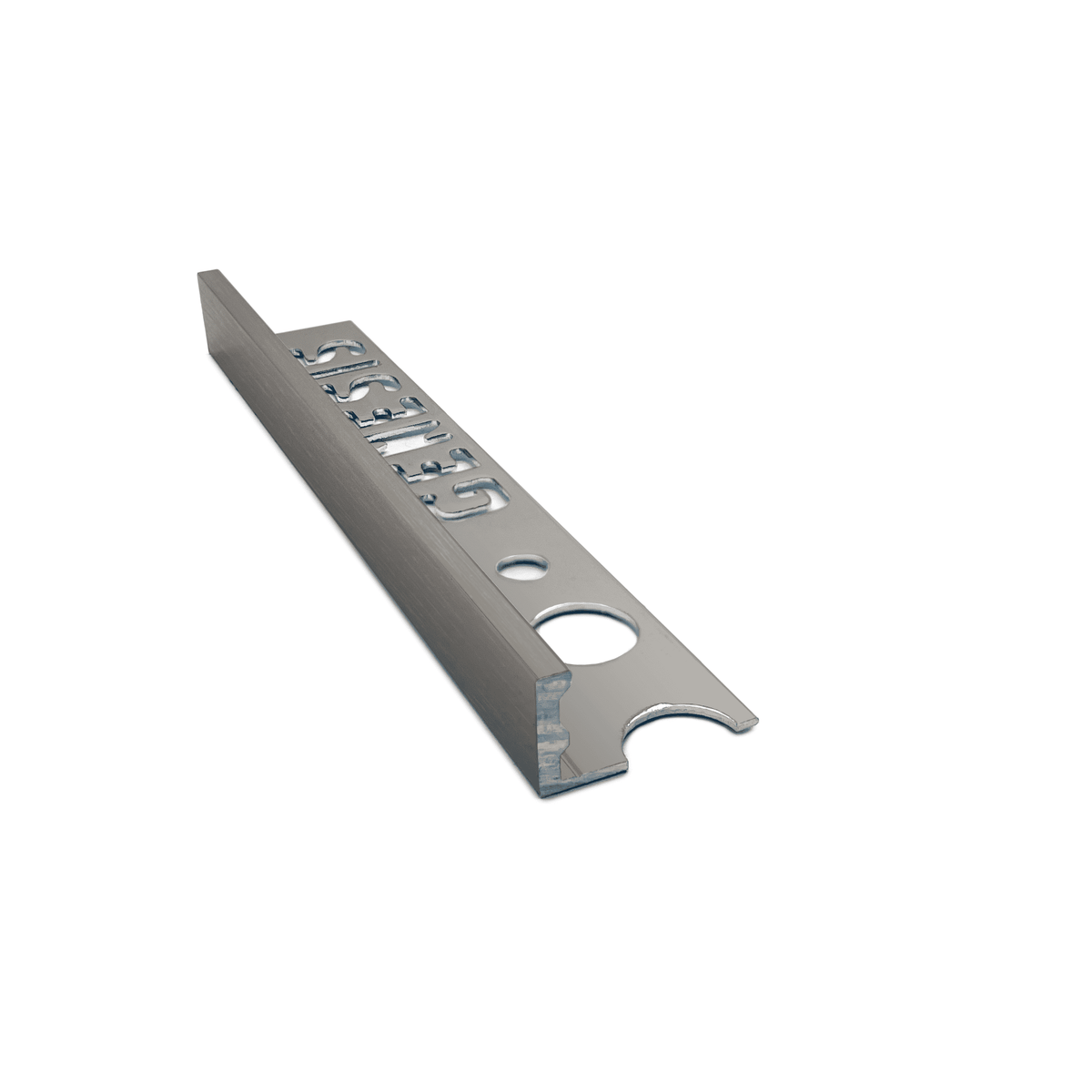

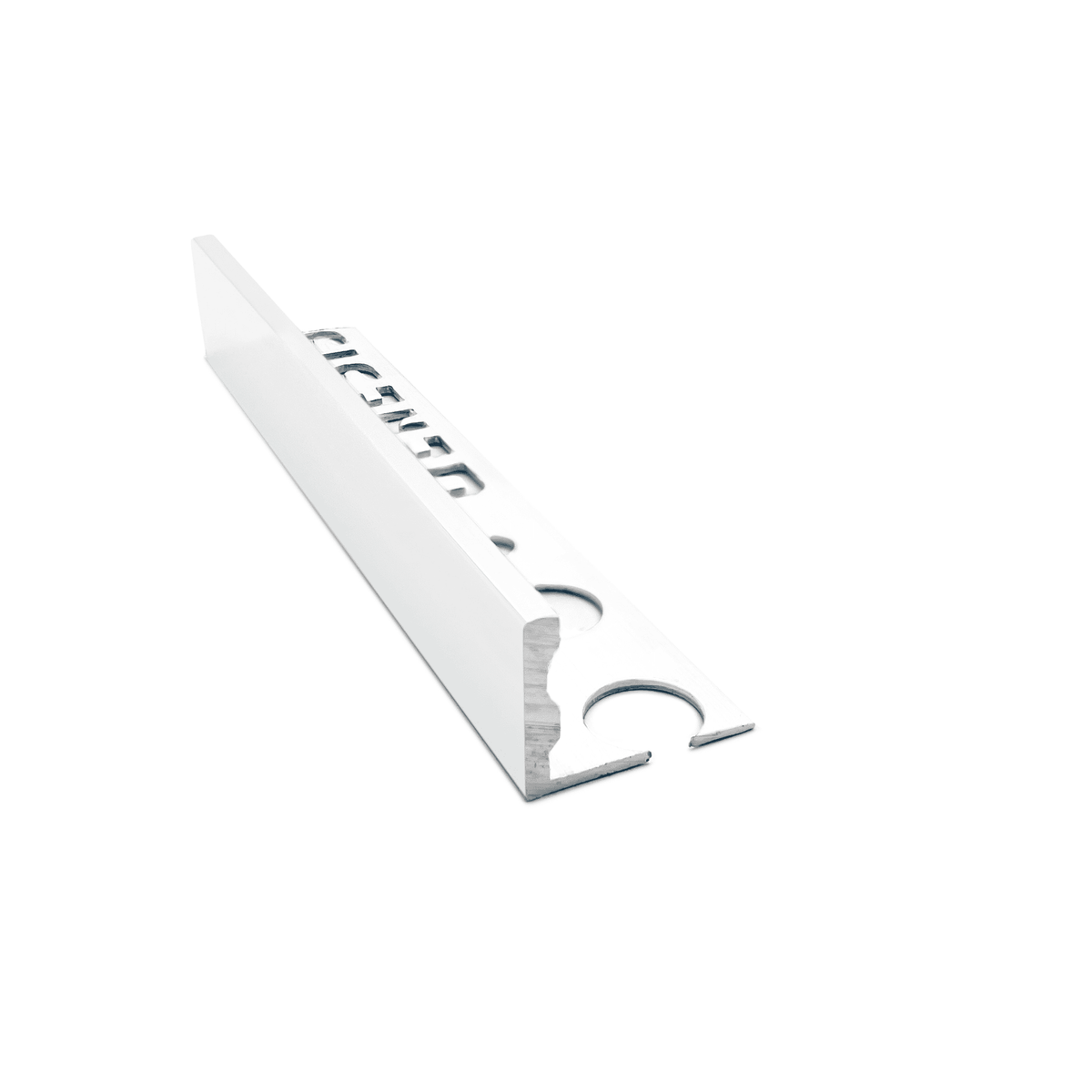

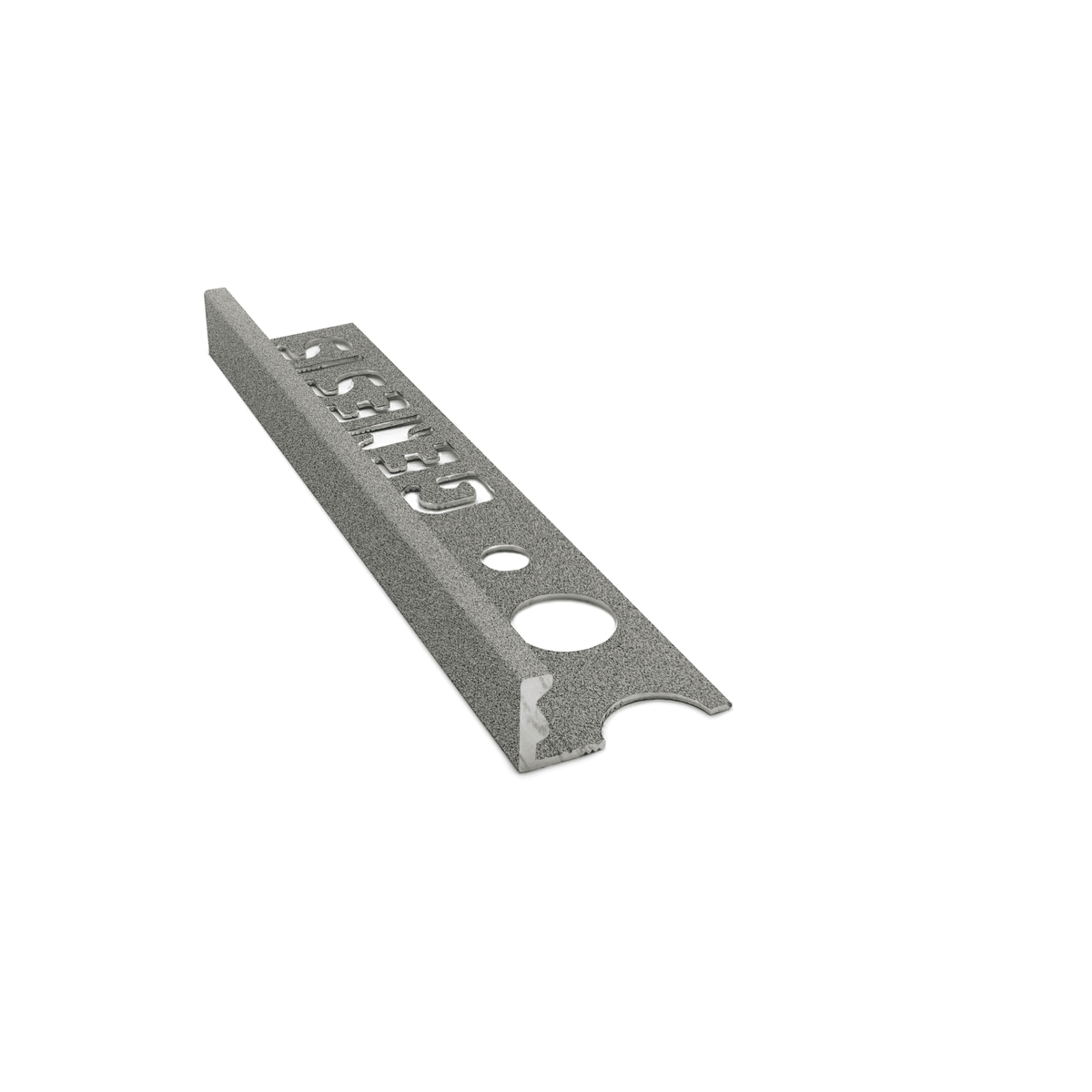

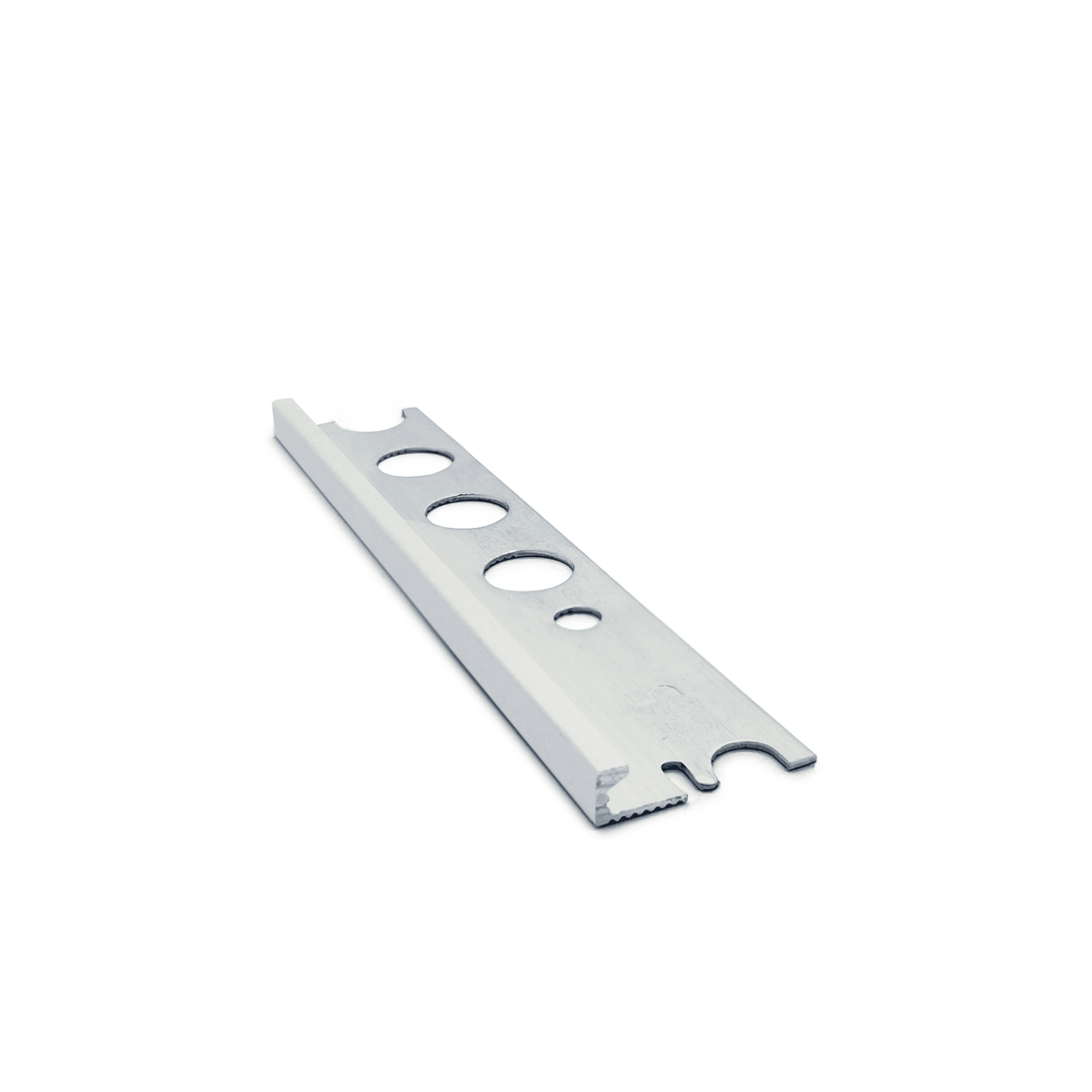

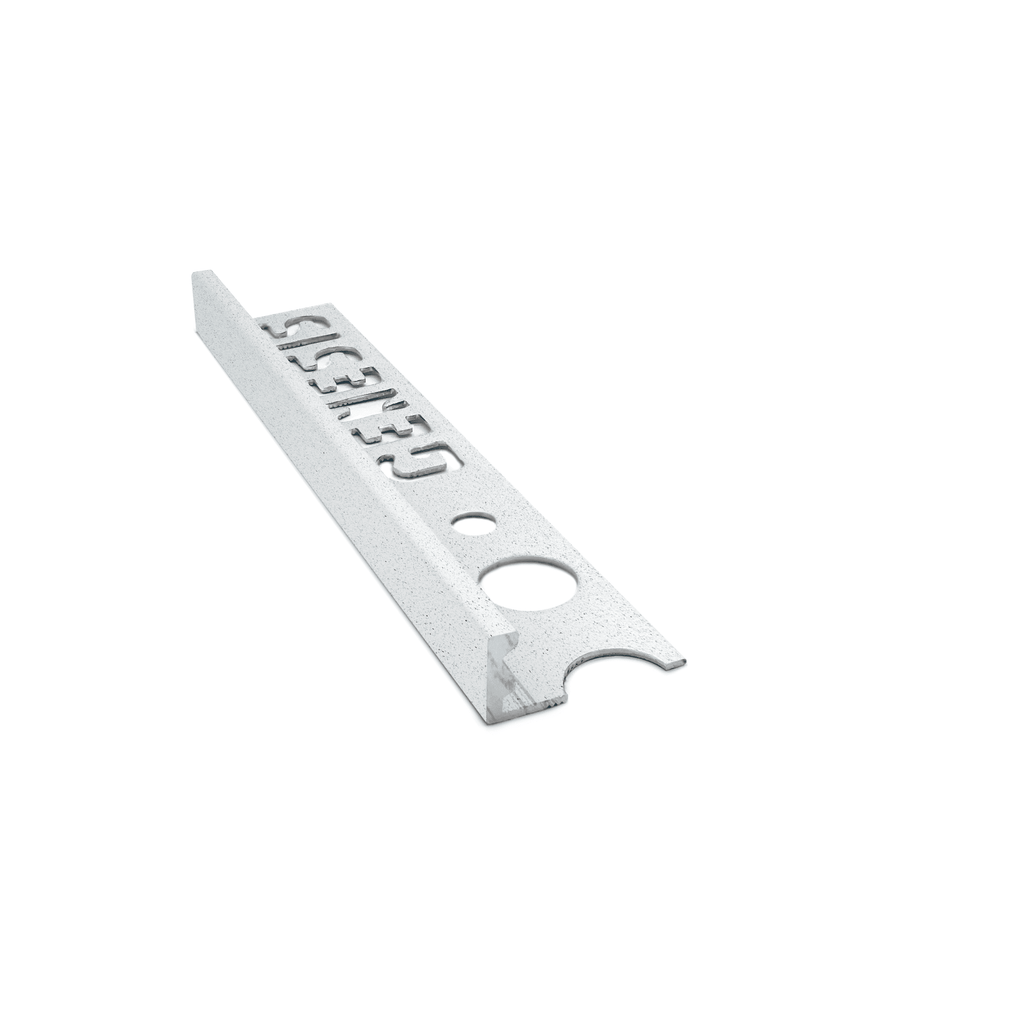

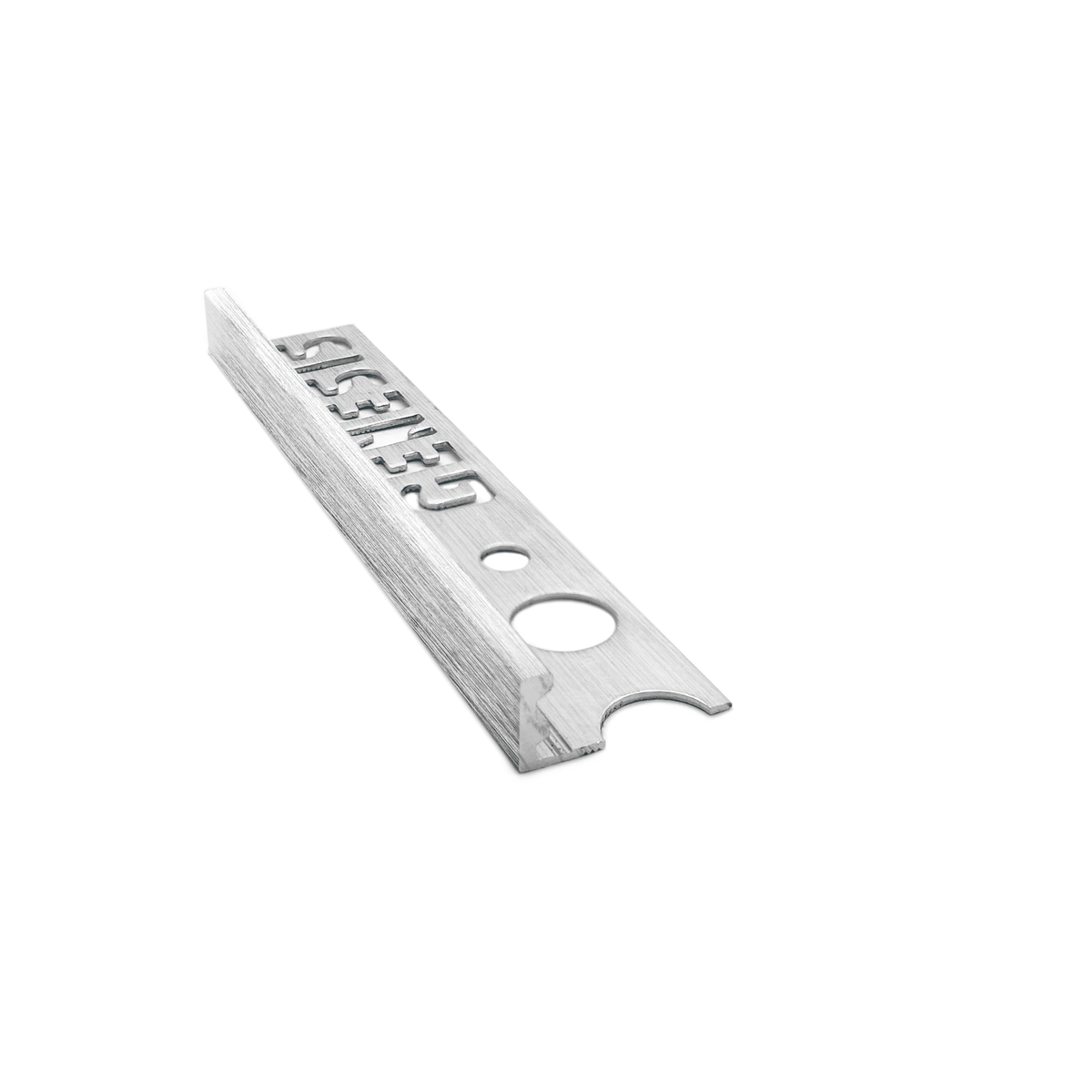

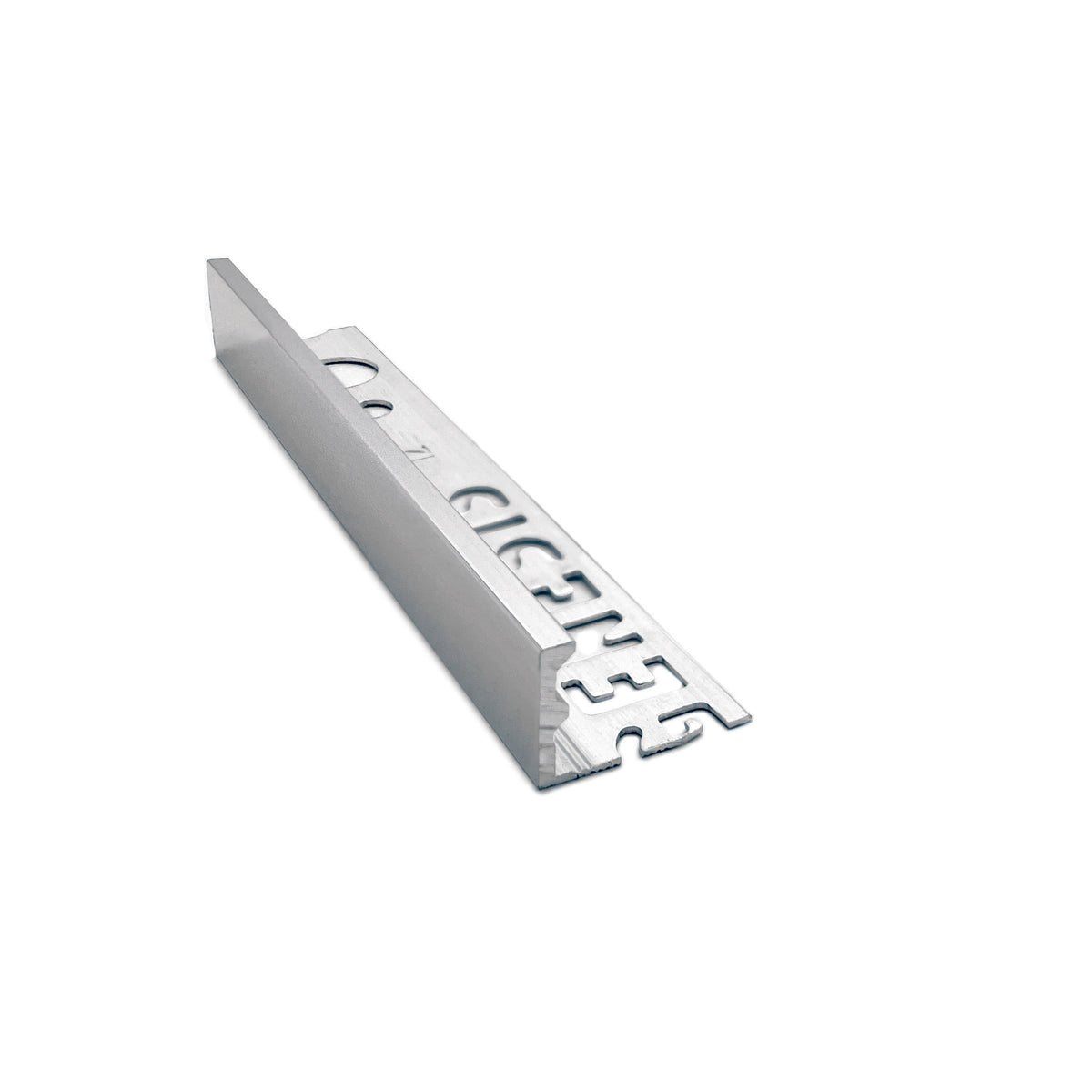

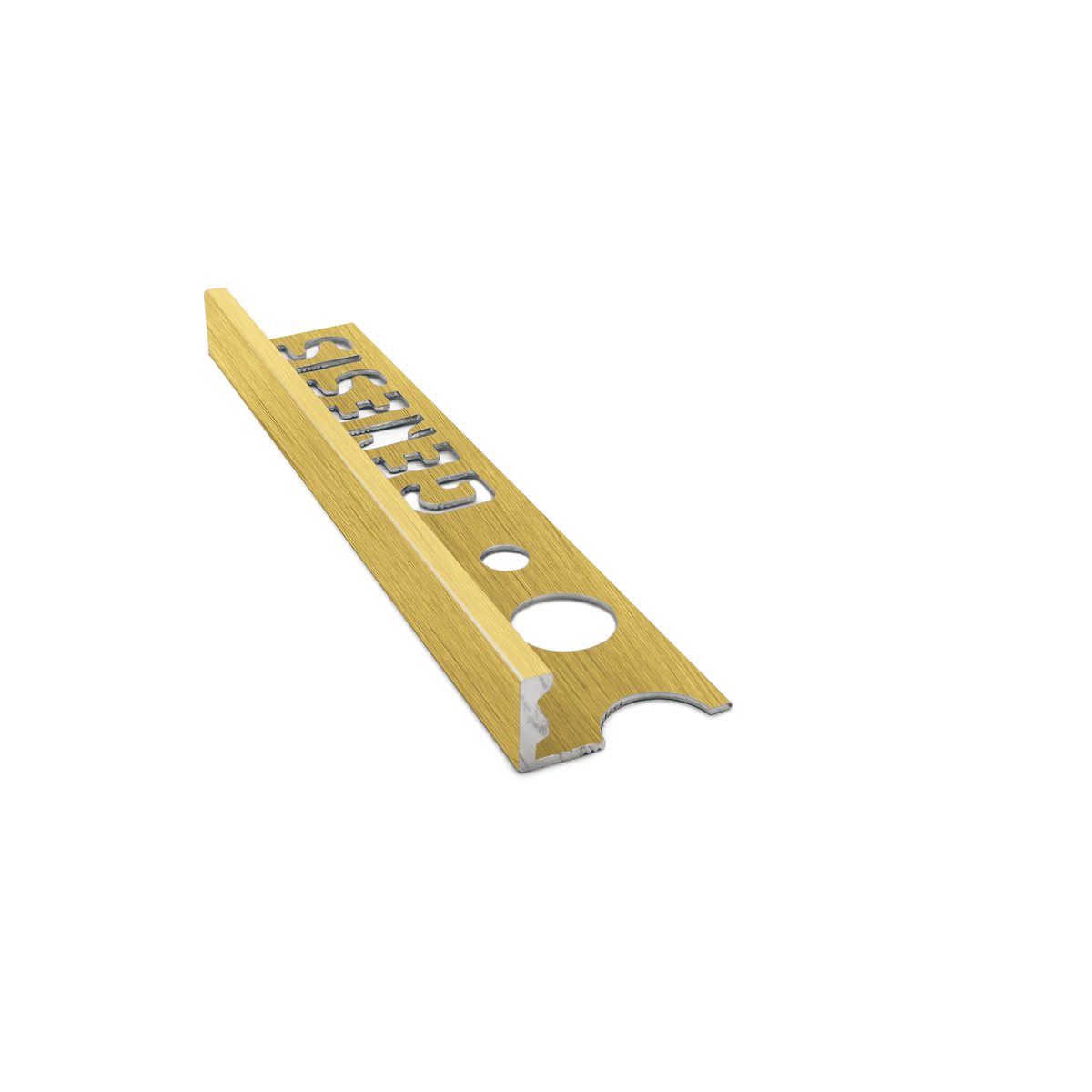

The Genesis ESA Aluminium Straight Edge Tile Trim is an L-shaped extruded aluminium profile that protects exposed tile edges and gives a sharp, modern finish. Supplied in 2.5m lengths, it is available in depths from 2.25mm to 18mm and in a wide choice of anodised, powder-coated and stone-effect finishes, so you can match almost any tile thickness and colour scheme on walls and floors.
Key benefits
- Strong extruded aluminium protects tile edges from chips and knocks
- Slim, crisp straight-edge profile with a 3mm visible face
- Perforated anchoring leg locks securely into tile adhesive
- 35 finishes including metals, neutrals, blacks, whites and stone effects
- Nine depths from 2.25mm to 18mm to suit thin wall tiles through to thick floor tiles
- Suits rectified and square-cut tiles as well as standard ceramic and porcelain
Applications
Used by professional tilers, bathroom fitters, builders and DIY users to finish external tile corners, exposed edges and tile terminations on walls and floors. Ideal for bathrooms, wetrooms, kitchens, hallways and commercial interiors.
Performance and features
- Profile: L-shaped straight edge (ESA range)
- Depths: 2.25mm, 3.25mm, 4.25mm, 6mm, 8mm, 10mm, 12mm, 15mm and 18mm
- Length: 2.5m
- Material: Aluminium AA 6063 T6, anodised or coated
- Flange: 21mm wide with perforated anchoring leg
Compatibility
Choose a depth that matches your tile thickness and select your finish from the Color option. Fixes into standard tile adhesive and works with ceramic, porcelain and natural stone tiles. Aluminium suitability should be checked where chemical or mechanical stresses are expected. Pair with Millcot tile adhesives, grouts and tanking systems for a complete installation.
Supplied by Millcot, your trusted UK trade supplier of tiling, wetroom and building products.
Technical specifications
- Brand: Genesis
- Range: ESA Aluminium Straight Edge
- Profile: L-shaped straight edge
- Depths: 2.25mm to 18mm (see Size option)
- Length: 2.5m
- Visible face width: 3mm
- Flange width: 21mm
- Flange thickness: 0.8mm
- Material: Aluminium AA 6063 T6 / UNS A96063, anodised to DIN 17611
- Finish: See Color option
- Fitting type: Bedded in tile adhesive
- Use: Internal
- Weight: 0.5kg per length
- Pack quantity: 1 x 2.5m length
What's included
- 1 x 2.5m Genesis ESA Aluminium Straight Edge Tile Trim in your chosen depth and finish
Frequently asked questions
Which depth do I need?
Pick the depth that matches your tile thickness. For example, choose 10mm for 10mm tiles.
How do I fix it?
Trowel adhesive over the tile perimeter, press the perforated anchoring leg into the adhesive and align it, then trowel more adhesive over the leg for full coverage. Embed the tiles so the profile sits level with, or up to about 1mm below, the tile surface, then fill the joint with grout.
Can I cut it to length?
Yes, use a fine-tooth hacksaw or a metal-cutting blade and file the end smooth.
How do I keep the finish looking good?
Remove adhesive and grout residue promptly and clean with a pH-neutral detergent and a soft cloth. Avoid acidic cleaners and abrasive pads.
Can it be used in wet areas?
Yes, it suits internal bathrooms and wetrooms. Make sure the profile is fully embedded with no voids, as cement-based materials can corrode aluminium if left in contact for long periods.
Can I use it outdoors?
The ESA range is intended for internal use. Genesis recommend powder-coated finishes for external installations.
Download the Genesis ESA Aluminium Straight Edge Technical Datasheet (PDF)
