Description

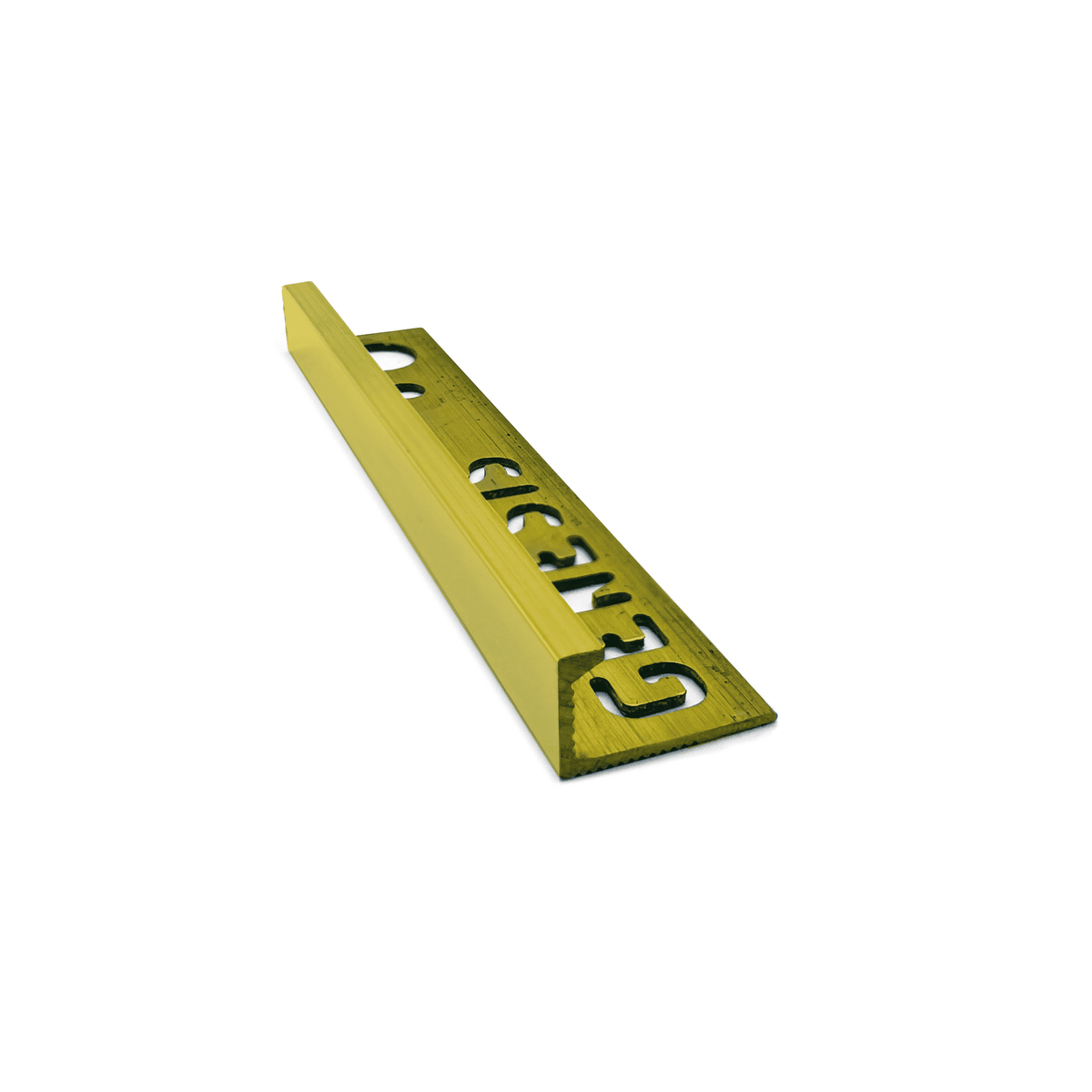

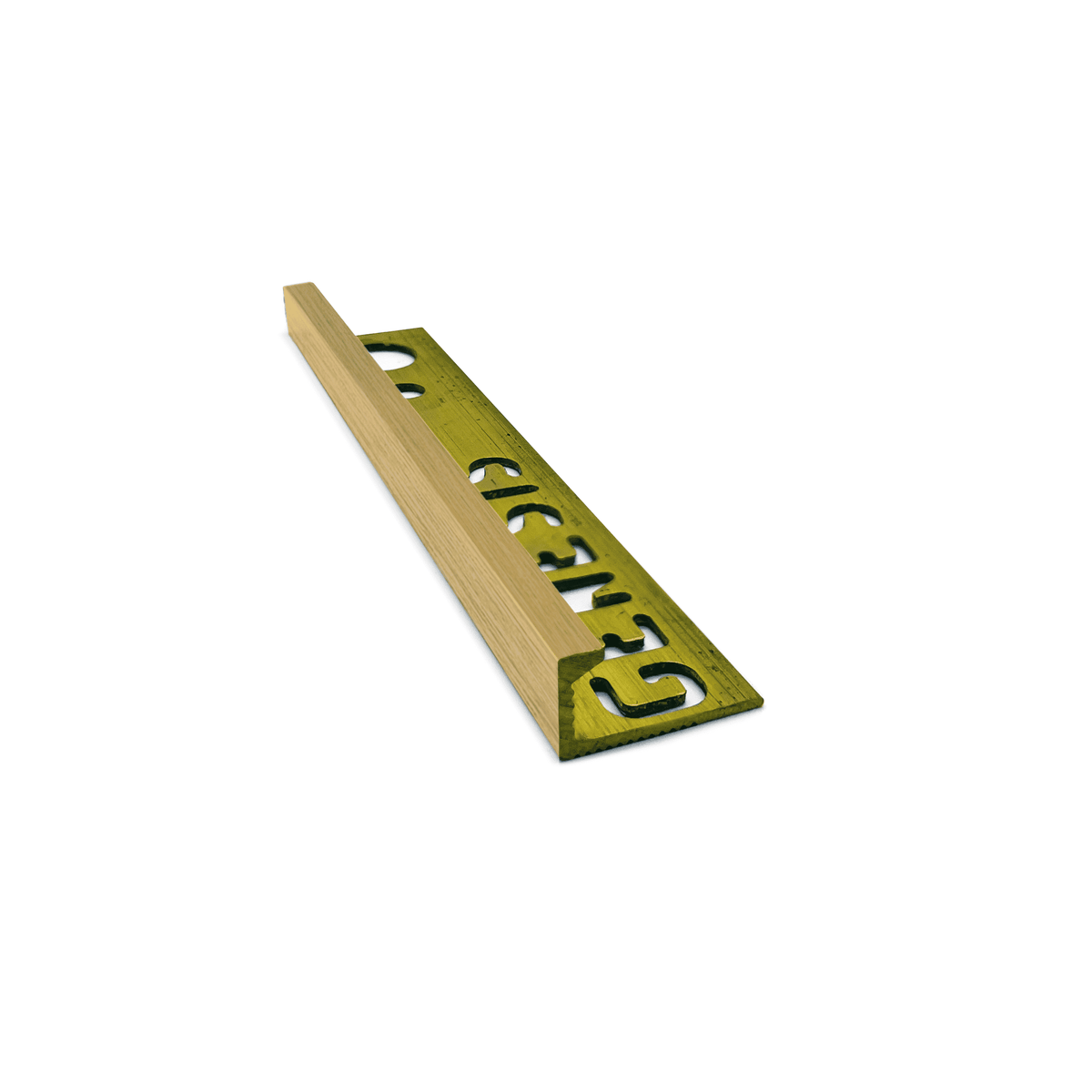

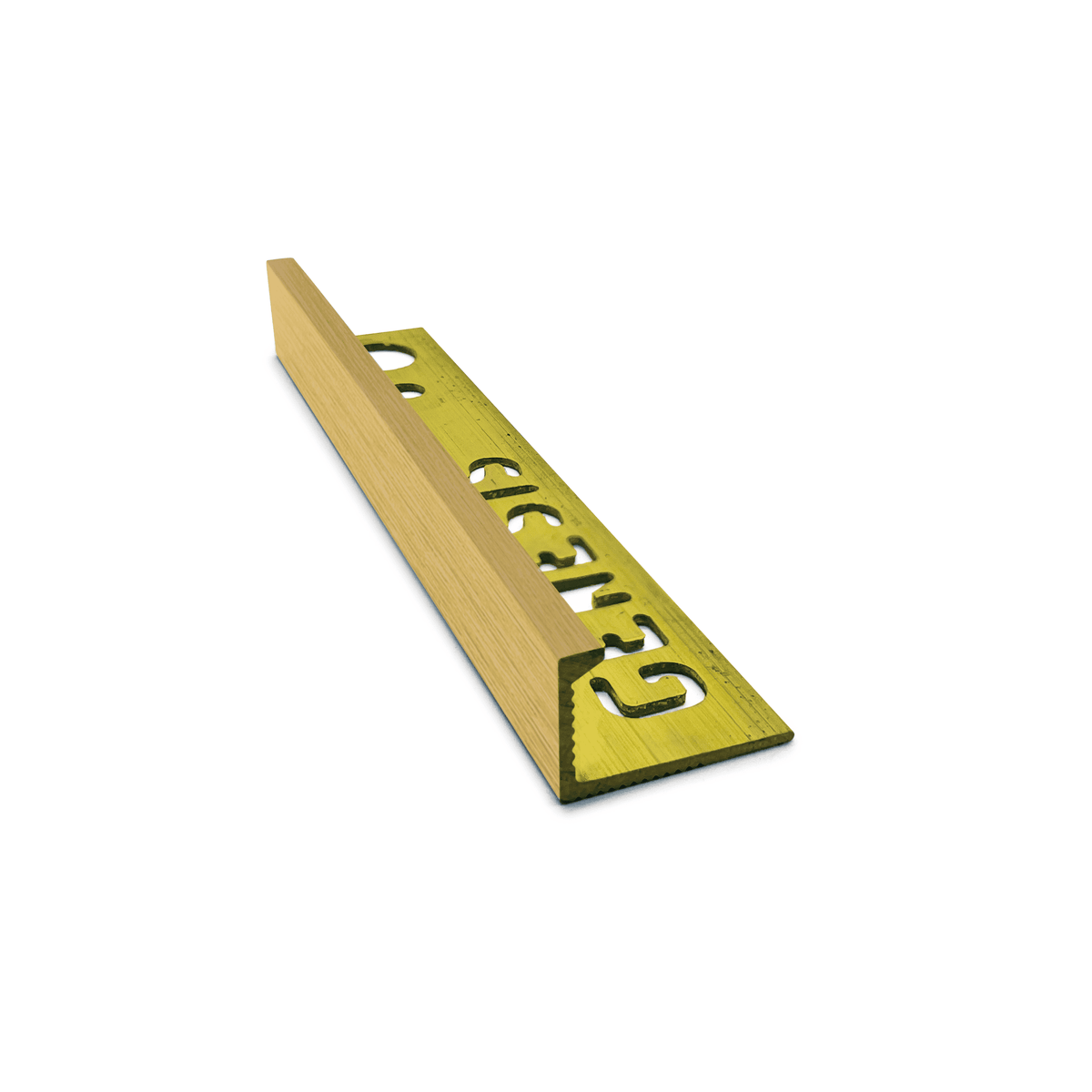

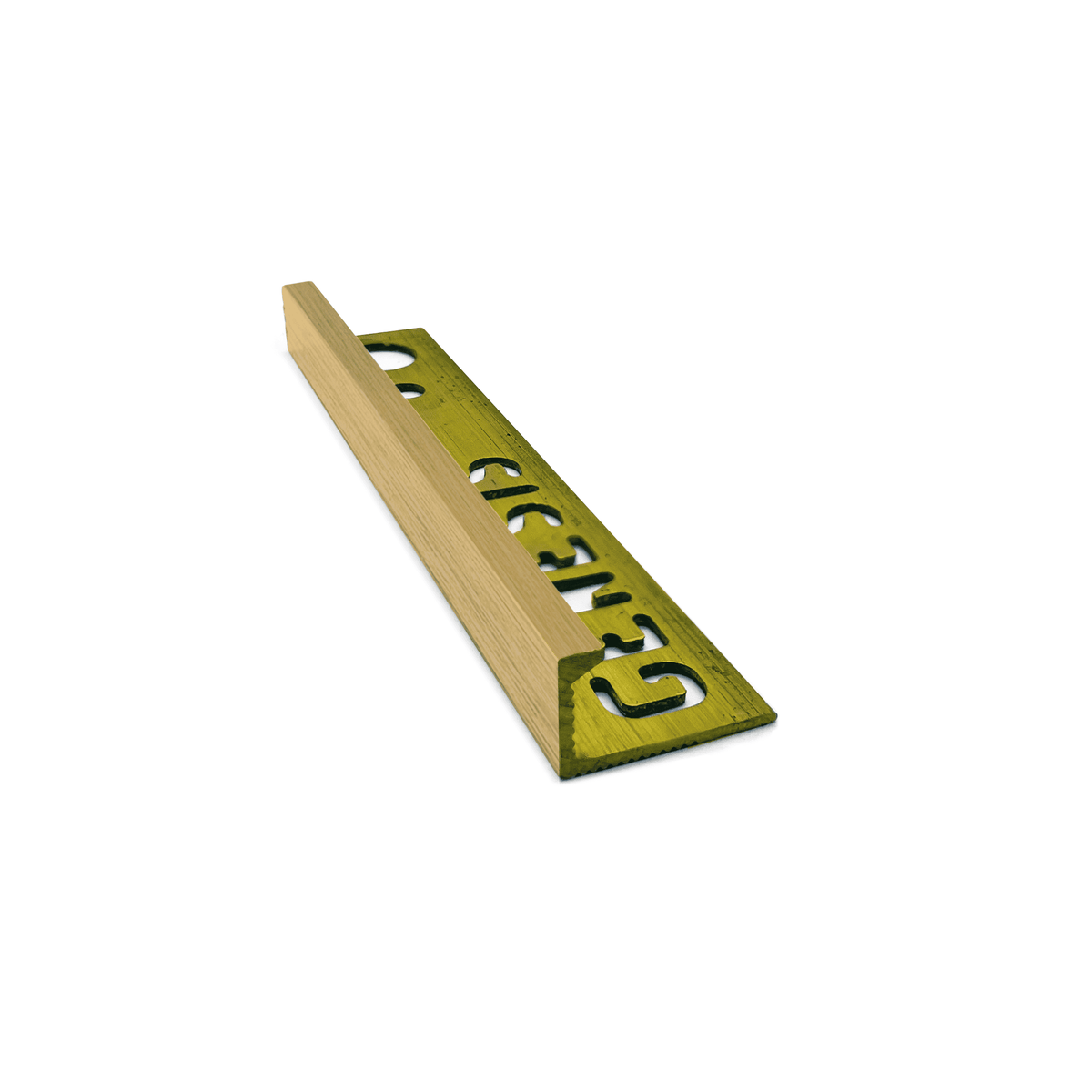

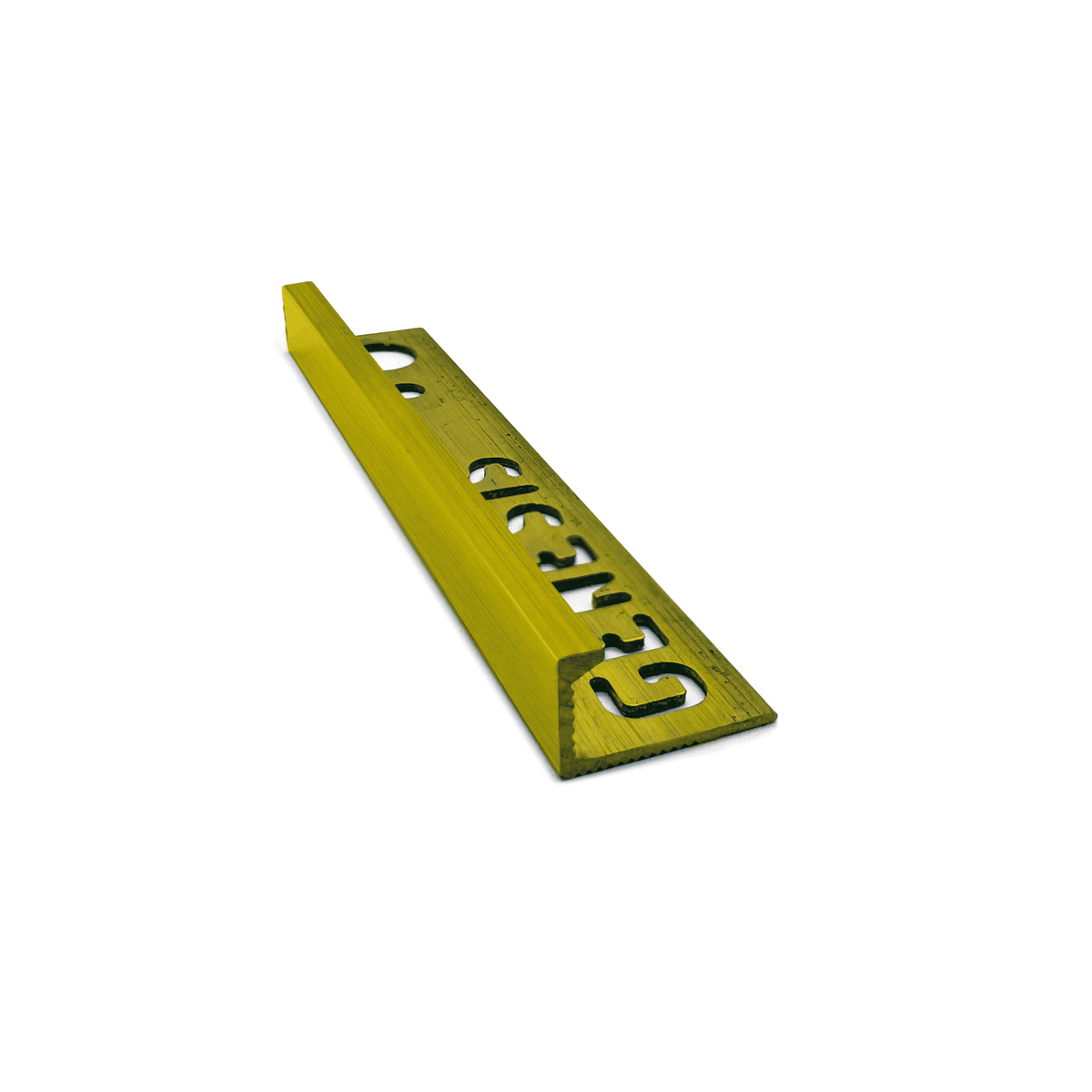

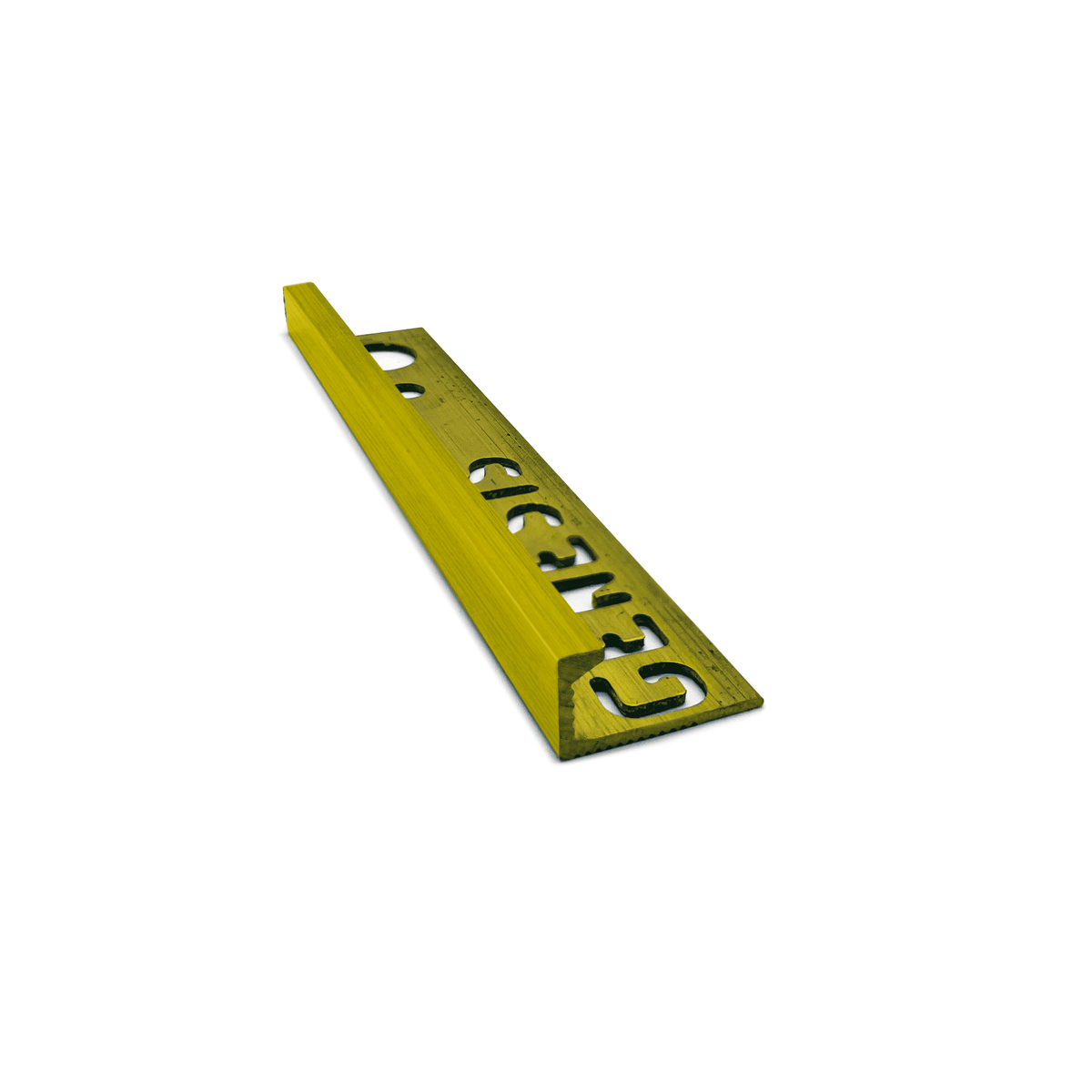

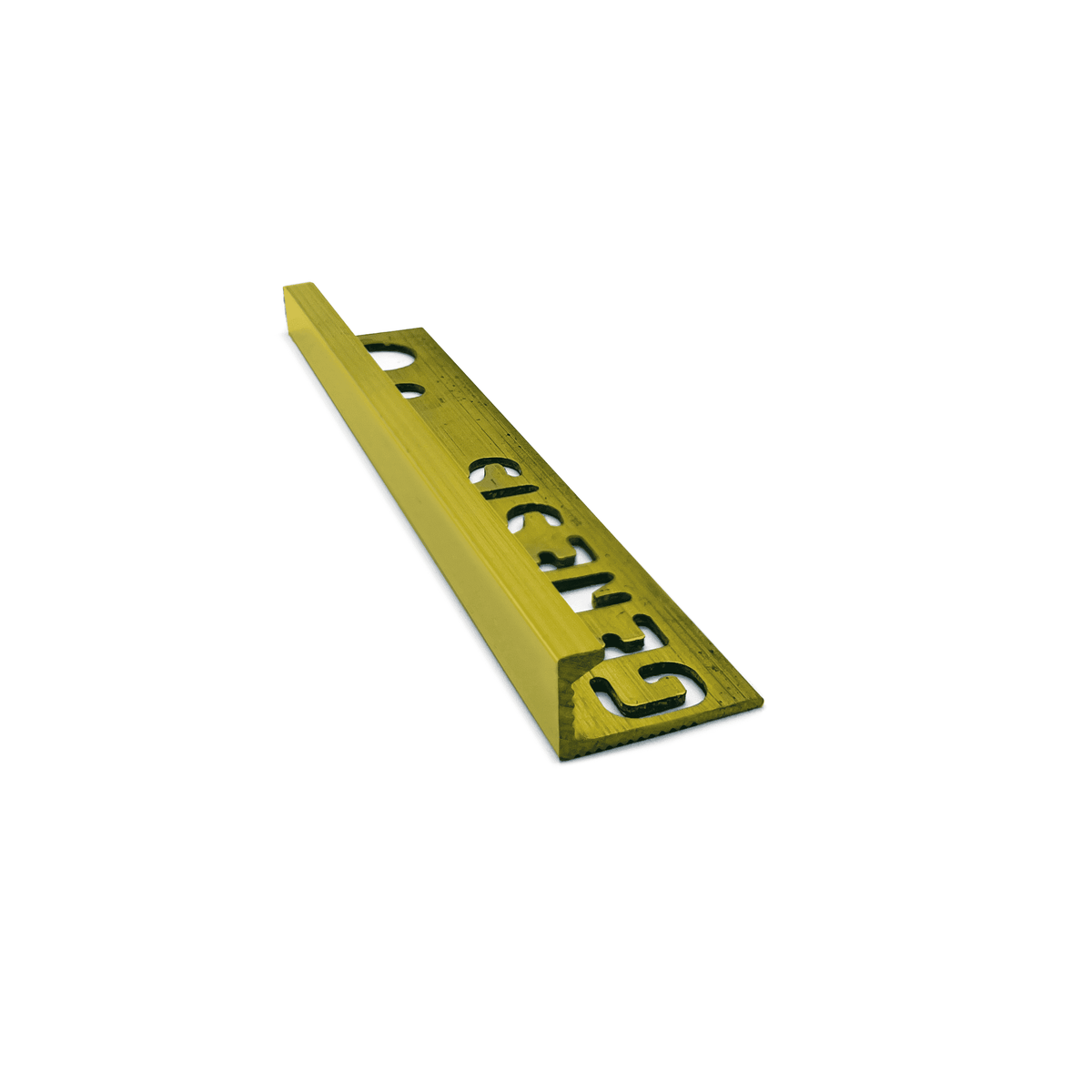

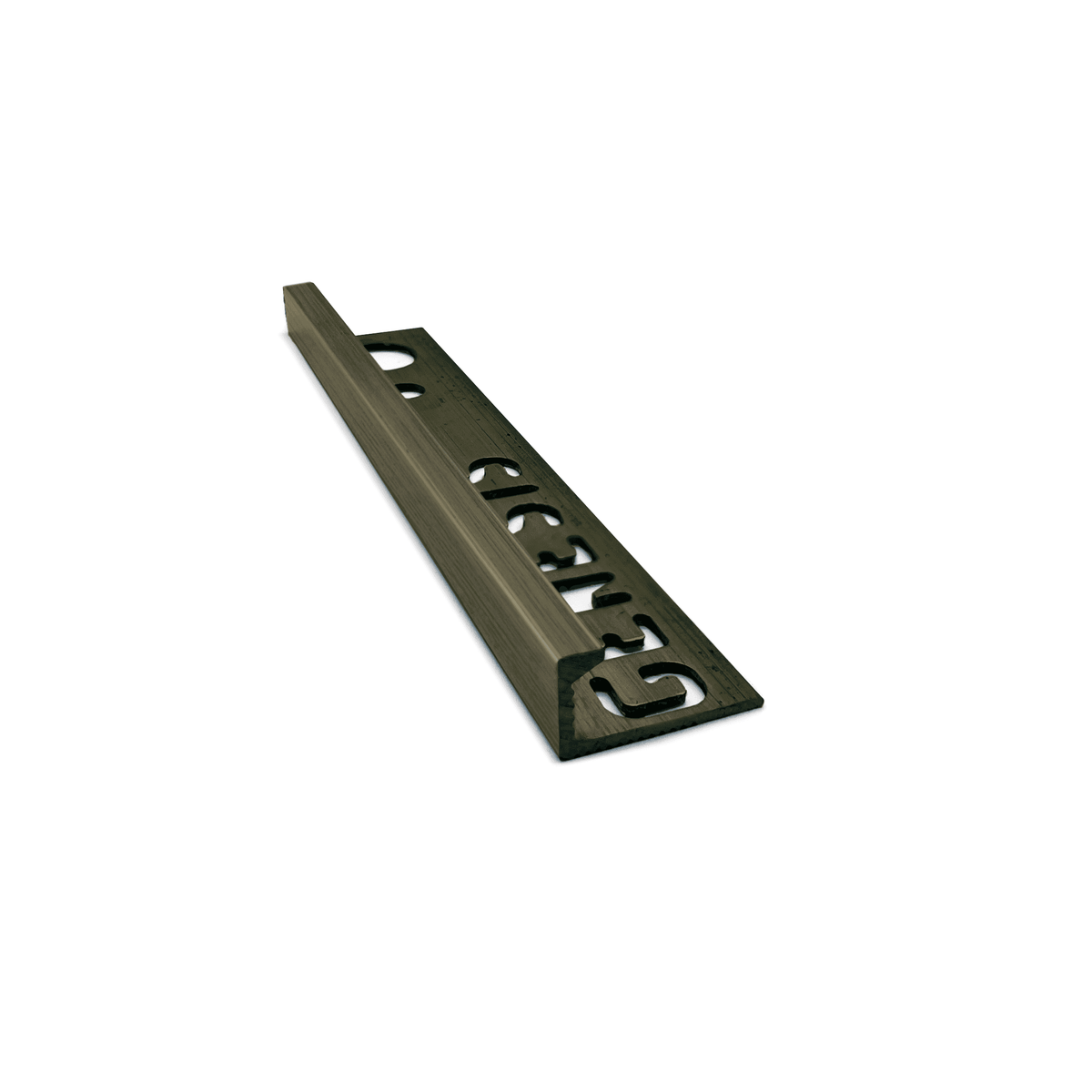

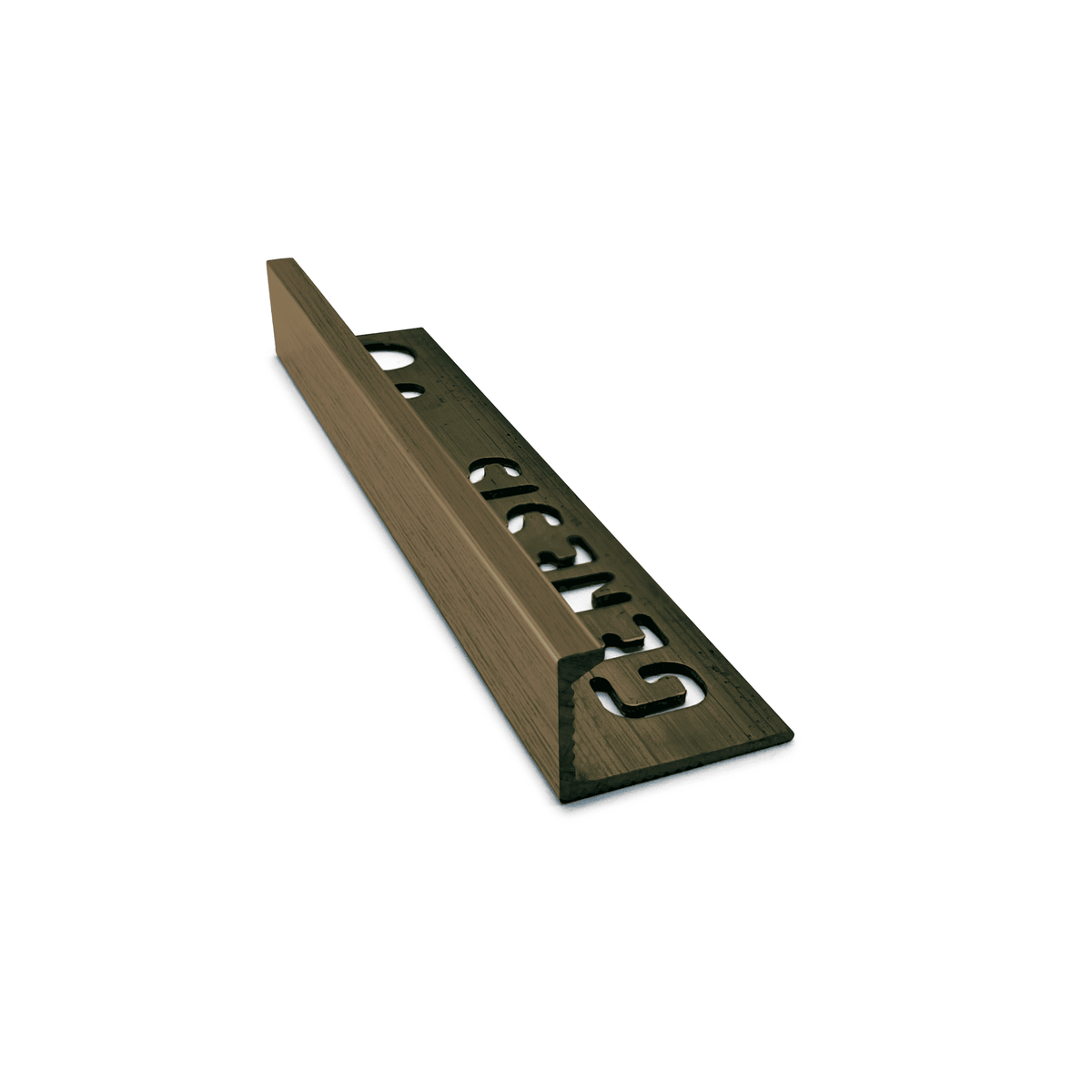

The Genesis EPB Solid Brass Straight Edge Tile Trim creates a discreet finish at tiled floor edges and transitions between rigid floor coverings. Its solid brass construction and slim 4mm top reveal bring a considered detail to domestic and commercial installations. Choose your finish and depth to suit the covering, with each trim supplied in a 2.7m length.
Key benefits
- Solid brass CW624N profile for tile edging and floor transitions
- Discreet 4mm top reveal for a neat finish
- Perforated 21mm anchoring leg embeds into tile adhesive
Applications
For professional tilers, bathroom fitters, flooring installers, builders and capable DIY users finishing tiled floor perimeters and transitions to other rigid floor coverings. Suitable for domestic and commercial projects, including kitchens, bathrooms and entrance areas. For ceramic, porcelain or other rigid coverings, select a depth that suits the covering thickness and check adhesive and cleaner compatibility.
Performance and features
The L-shaped profile combines a narrow top reveal with a perforated anchoring leg. Bedding the leg fully into tile adhesive helps secure the trim as part of the tiled installation. Polished, Natural, Brushed and Antique finishes allow you to coordinate the exposed edge with the surrounding fittings and floor design.
Compatibility
Select the 8mm, 10mm or 12mm depth according to covering thickness. Install the tiled surface flush with the profile or up to approximately 1mm above it. Maintain the brass with pH-neutral products and avoid aggressive chemicals that could damage the finish.
Available from Millcot, your UK trade supplier for tiling, wetroom installation and professional trade supplies.
Key features
- Solid brass CW624N profile for tile edging and floor transitions
- Discreet 4mm top reveal for a neat finish
- Perforated 21mm anchoring leg embeds into tile adhesive
- 8mm, 10mm and 12mm depths to suit different tile thicknesses
- Polished, Natural, Brushed and Antique finishes
- 2.7m length for longer runs with fewer joins
- Suitable for domestic and commercial installations
Technical specifications
- Brand / range: Genesis EPB
- Material: Solid brass CW624N, EN 12167:2001 (as stated in the manufacturer datasheet)
- Length: 2.7m (2700mm)
- Profile depth: 8mm, 10mm or 12mm
- Top reveal: 4mm
- Anchoring leg width: 21mm
- Anchoring leg thickness: 1.2mm
- Profile: L-shaped straight edge
- Fitting type: Perforated anchoring leg bedded in tile adhesive; mechanical fixing if required
- Colour / finish: Polished brass (.86), Natural brass (.87), Brushed brass (.90) or Antique brass (.V89)
- Compatibility: Tile coverings and other rigid floor coverings; select to match covering thickness
- Pack quantity: 1 length
- Linear coverage: 2.7m before cutting allowances
- Weight: Not specified by the manufacturer
What's included
1 x 2.7m Genesis EPB solid brass straight edge tile trim in your selected depth and finish. Adhesive, grout, tools and any mechanical fixings are supplied separately.
Frequently asked questions
Which depth of brass tile trim should I choose?
Select 8mm, 10mm or 12mm to suit the thickness of your tile or rigid covering. Check the finished installation: the profile should sit flush with the tiled surface or up to approximately 1mm below it, never proud.
Is Genesis EPB solid brass or a brass-effect finish?
EPB is made from solid brass CW624N. The range offers Polished, Natural, Brushed and Antique surface finishes.
How is the EPB tile trim installed?
Trowel adhesive at the perimeter of the tiled area, press the perforated anchoring leg into it and align. Cover the leg fully with further adhesive, solidly embed the tiles at the correct height, then fill the joint completely with grout. Mechanically fix if required.
What materials and projects is it suitable for?
Genesis specifies tile coverings and other rigid floor coverings in domestic and commercial areas. It is used to finish floor perimeters and transitions. Check the profile depth and adhesive suitability for your ceramic, porcelain or other chosen covering.
How long is each trim and what is supplied?
Each selected variant is supplied as one 2.7m length. The three depths are 8mm, 10mm and 12mm; all four finishes are available in each depth.
How should I clean solid brass tile trim?
Use clean water, a pH-neutral cleaner and a soft sponge or cloth. Check any specialist brass cleaner on a small area first. Avoid abrasive cleaning, chlorine bleach, cement residue cleaners, strong acids and alkalis, especially hydrochloric or hydrofluoric acid.
Download the Genesis EPB Solid Brass Straight Edge Tile Trim Technical Datasheet (PDF)
