Description

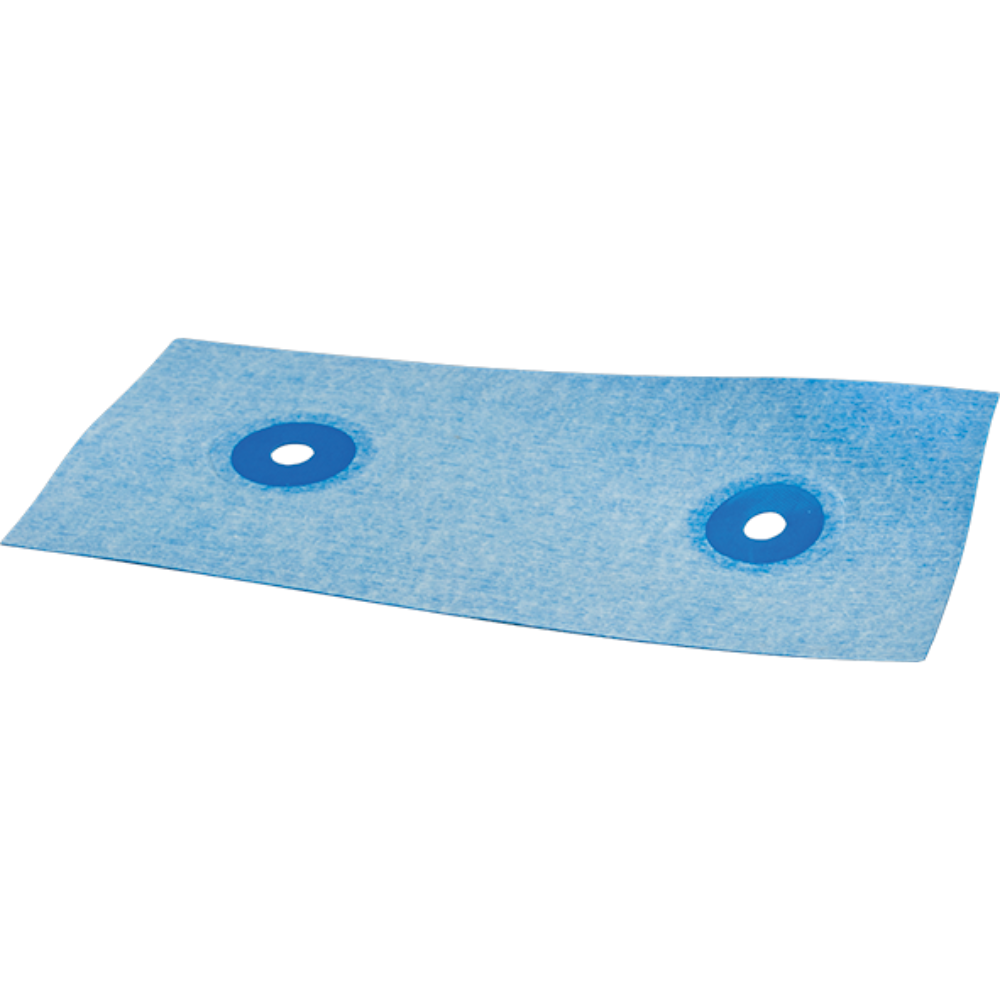

Paired pipes, think hot and cold feeds or a mixer's twin tails, are far easier to seal with one detail than two overlapping collars. This double-hole wall collar carries two pre-cut apertures for waterproofing both penetrations simultaneously, with a highly elastic rubber expansion zone on each to absorb movement.
It comes in two centre-to-centre spacings to match common valve and outlet layouts: 165mm x 115mm at 40mm spacing, and 275mm x 125mm at 150mm spacing. The FleeceX Pro+ material is fully fleece-laminated, giving a strong adhesive key and clean integration into the membrane.
Key features
- Twin pre-cut apertures for two pipes in one collar
- Two versions to match your pipe layout: holes 40mm apart, or 150mm apart (centre to centre)
- Integrated elastic expansion zones for movement
- Waterproof, silicone-compatible and chemically resistant
German-made and compatible with liquid-applied and bonded methods, it belongs to the Substrat FleeceXL Pro system alongside the single-aperture FleeceXL Pro wall collar.
Full System Guarantee. For a complete, fully waterproof wetroom barrier, the FleeceX Pro and FleeceXL Pro range must be installed together with SUBSTRAT SealCoreX tanking membrane. Using the matched Substrat components as one certified system is what qualifies your installation for the Substrat Full System Guarantee.
